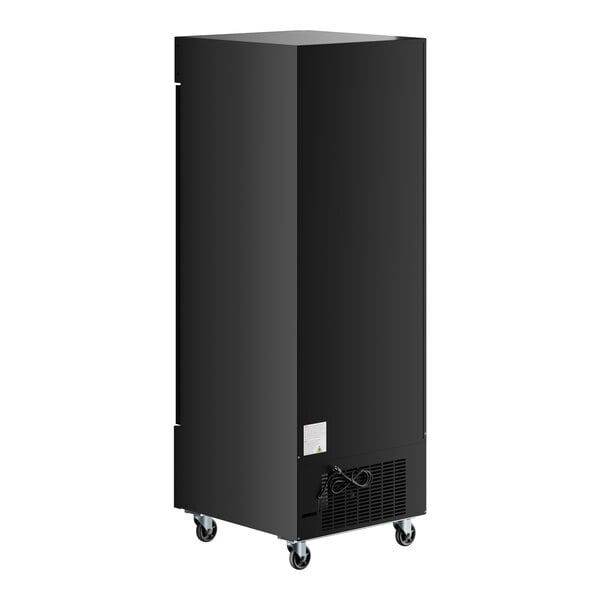

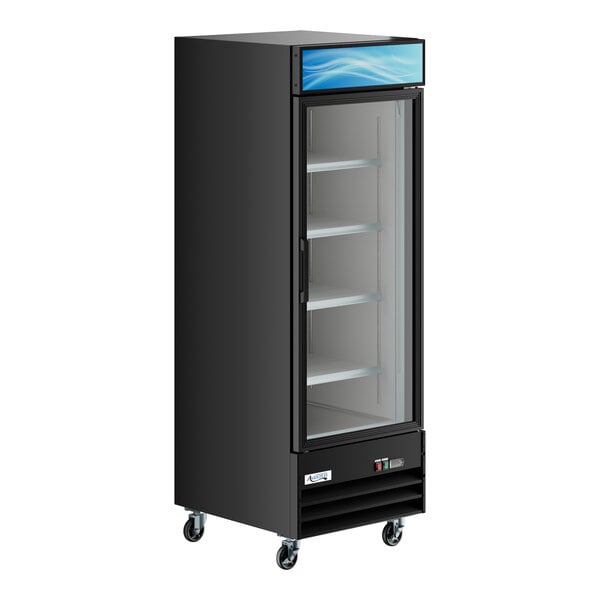

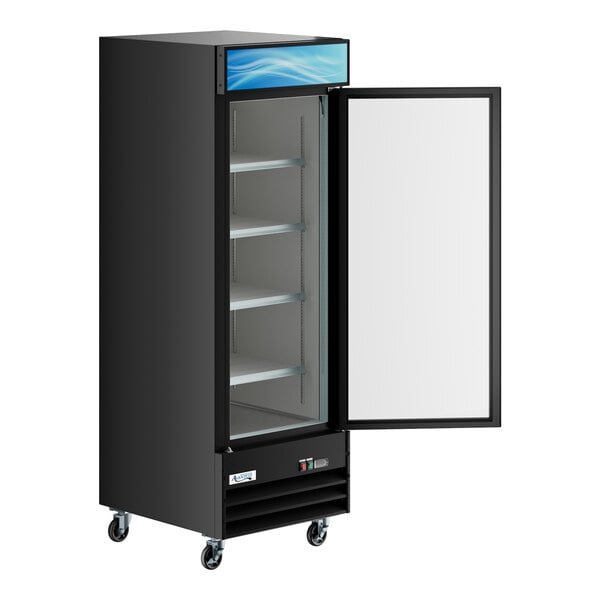

Avantco GDC-23-HC 28 3/8" Black Swing Glass Door Merchandiser Refrigerator with LED Lighting

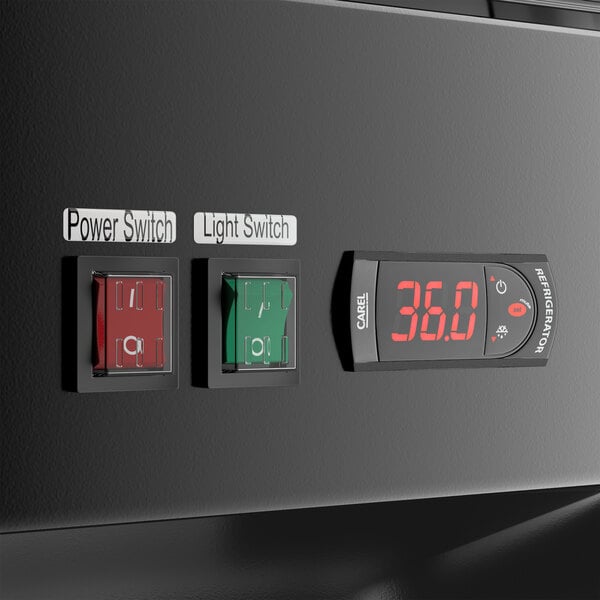

Adjusting the temperature on your GDC or GDS series unit is a simple process. Your unit has one of several possible controller options. Depending on the model you purchased, simply follow all the steps that apply to your refrigerator or freezer. If your model has a mechanical controller, adjust the temperature dial. This is located inside the unit, on the ceiling. The coldest setting corresponds to the highest number on the dial. The warmest setting corresponds to the lowest number on the dial. Give the refrigerator or freezer time to adjust to your new settings. The digital display on the front of the unit shows you the current temperature inside the cabinet. You can continue to adjust these settings as needed. If your model has this controller style, 178GDC24FWH, hold set for about one second. The flashing number on the display is the temperature that the refrigerator or freezer is currently set to run. Use the arrow buttons to select the temperature you want your unit to run, and press set again to save your setting. If your model has this controller style, 178GDC40BK, hold set button for about one second. The flashing number on the display is the temperature that the refrigerator or freezer is currently set to run. Use the arrow buttons to select the temperature you want your unit to run, and press set again to save your setting.

The lighting in any glass door merchandiser is vital to ensure your products look their best. Today we'll show you how to properly change the lighting on an Avantco GDC or GDS series merchandiser. Before doing anything else, unplug the unit. GDC or GDS units purchased in 2015 or before use bi-pin T8 fluorescent bulbs. Units purchased in 2016 and after have LED lighting. This is 20", 24", 40", or 48" long LED strip, depending on the model. We will show you how to change both types in this video. For fluorescent units, pull the top socket out horizontally from the light fixture. Pull the bottom socket out the same way, holding it firmly to keep the bulb from sliding out. Place the bulb on a level surface and remove the sockets from each end. Remove the bulb from the plastic sleeve. Place the new bulb into the sleeve and replace the sockets. Make sure the prongs in the bulb are secure in the sockets. Place the new bulb into the cabinet, starting with the bottom socket. Once again, be sure to support the bottom socket while installing to keep the bulb from sliding out. Inspect the new bulb to be sure it is secure, and turn the unit back on to ensure the light operates properly. For LED units, begin by unscrewing the collar and unplugging the light strip. Using a flat head screwdriver or other tool, apply pressure to the brackets, gently leveraging the light strips until it snaps out. Once the old light strip is free, secure the new light strip into the mounting brackets. Plug the new bulb into the socket at the top of the unit and secure it using the collar. Inspect the new bulb to be sure it is secure, and turn the unit back on to ensure the light operates properly.

The gasket is a vital part of any refrigeration equipment, locking cold air inside the cabinet. If the gasket is worn out or torn, your refrigerator or freezer is letting that cold air escape into the kitchen, and using more energy to compensate. Today we'll properly show you how to change a gasket on an Avantco GDC or GDS series merchandiser. Remove the old gasket starting at a corner, and pulling it out of the recessed channel one side at a time. insert a new gasket. Start at a corner, and snap the dart connector into the recessed channel, working your way around the perimeter of the door. Be sure the gasket has a snug fit and closes properly against the cabinet.

Here's some basic settings you can make to your Avantco refrigerator in your restaurant. If you want to adjust the temperature, you hold set for one second and you'll see your low temperature limit. This unit is set to shut off at 33 degrees. If you want to have it shut off at a warmer temperature you can adjust it up. But it will not go below 33. You see when I get to 33 it just cycles back up to the top of the temperature range. Take this unit back down to 33 degrees. Press set to save it and you're back to your home screen.
