Product Overview

  • 16 gauge stainless steel
  • (3) 16" x 20" x 12" sink bowls with 1 1/2" IPS waste drains
  • 23" drainboard
  • 10 1/2" backsplash with 2" return
  • 1 5/8" diameter stainless steel legs with welded cross bracing
UPC Code:747545118578

Advance Tabco DTC-3-1620-84RX Specs

Quantity
1/Each
Shipping Weight
200 lb.
Length
83 Inches
Width
30 Inches
Height
37 Inches
Bowl Depth
12 Inches
Backsplash Height
10 1/2 Inches
Backsplash
With Backsplash
Bowl Front to Back
20 Inches
Bowl Left to Right
16 Inches
Features
With Sink
Gauge
16 Gauge
Installation Type
Right Side
Leg Construction
Stainless Steel
Material
Stainless Steel
Number of Compartments
3 Compartments
Stainless Steel Type
Type 304
Style
Straight
Type
Dirty / Soiled Dishtables

Customer questions about this product

How can I be sure that this dish table is compatible with my commercial dish machine?

To verify the compatibility of this dish table with your unit, please provide the following pieces of information to our Customer Solutions team:

Dish Machine Brand: This is the name of the manufacturer of your dish machine, such as CMA, Jackson, Hobart, etc.

Model Number: The placement of this information will vary by manufacturer, but it is often located in product literature (manuals or specification sheets) and/or somewhere on the unit.

Please note that some dish tables must be modified to ensure that they will fit with certain brands of dish machines. Occasionally, this service will require an upcharge depending on what modifications need to be made.

How do I know which side of this dish table has legs?

When facing the front side of your installed dish table, a left-side table will have legs on your left side, while a right-side table will have legs on your right.

Why do I need to select my dish machine’s make, model, and configuration?

This information is required by Advance Tabco in order to process your order. Please note that some dish tables must be modified to ensure that they will fit with certain brands of dish machines. Occasionally, this service will require an upcharge depending on what modifications need to be made. Our Custom Quote team will reach out to you via email after the order is placed to confirm if further modifications are needed. If you do not see your make / model brand listed, please select "Other" and a member of our team will contact you via email.
Ask your own question!

Advance Tabco DTC-3-1620-84RX Details

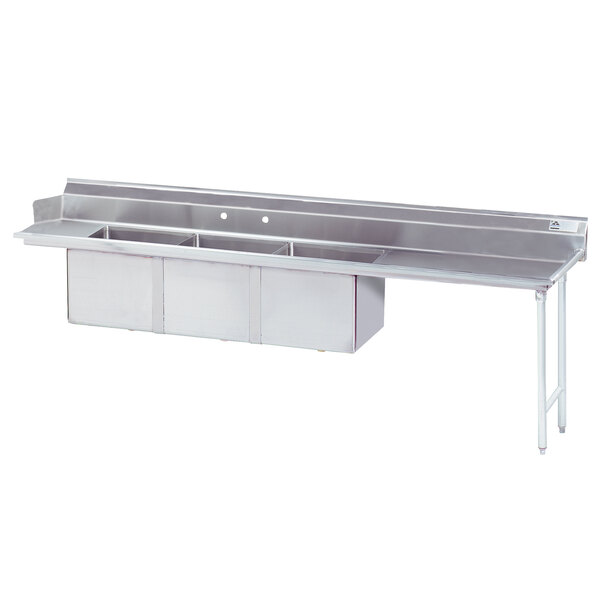

Improve efficiency in your dish room with this Advance Tabco DTC-3-1620-84 7' stainless steel soil straight dishtable! This dishtable features a rugged 16 gauge stainless steel construction with 23" drainboard and (3) 12" deep, 16" x 20" sink bowls, so you can maximize the versatility of your work area and eliminate the need for a separate 3 compartment sink. A 10 1/2" backsplash is included to protect your walls, and it also has holes punched on 8" centers to accommodate a faucet (sold separately). 1 5/8" diameter stainless steel legs with welded cross bracing provide support for the whole table. Additionally, this unit's gussets are welded to stainless steel support channels for added reliability, and all welds are blended with the surrounding surfaces for a clean presentation.

Overall Dimensions:
Length: 83"
Width: 30"
Height: 37"

Please check the Compatibility resource for information on items that work with this product.

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Attention CA Residents

WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
