Product Overview

  • 6 drawers; each holds (2) 12" x 20" x 6" food pans
  • 3" casters with adjustable channels; maximum top capacity of 1500 lb.
  • Stainless steel construction; side, front, and rear access panels
  • Controllable anti-condensate perimeter drawer heaters; self-closing drawers with stay open feature
  • Microprocessor control system
  • Front-breathing design for zero-clearance installation
  • For modular set up with Vulcan V Series units (sold separately)
  • 115V, 1/2 hp, R-404A refrigerant
UPC Code:400012121012

Vulcan VSC96 Specs

Quantity
1/Each
Shipping Weight
760 lb.
Width
96 Inches
Depth
34 1/8 Inches
Height
26 Inches
Amps
12 Amps
Hertz
60 Hz
Phase
1 Phase
Voltage
115 Volts
Access Type
Drawers
Base Style
Refrigerator
Capacity
1/6 Size Food Pans  Half Size Food Pans  lb.
Compressor Location
Side Mounted
Compressor Style
Side / Rear Breathing
Construction
Stainless Steel and Galvanized Steel
Features
Made in America  NSF Listed
Full Size Food Pan Capacity
12 Pans
Horsepower
1/2 HP
Number of Drawers
6 Drawers
Plug Type
NEMA 5-15P
Refrigerant Type
R-404A
Temperature Range
34 - 38 Degrees F
Top Capacity
1,500 lb.
Type
Chef Bases

Vulcan VSC96 Details

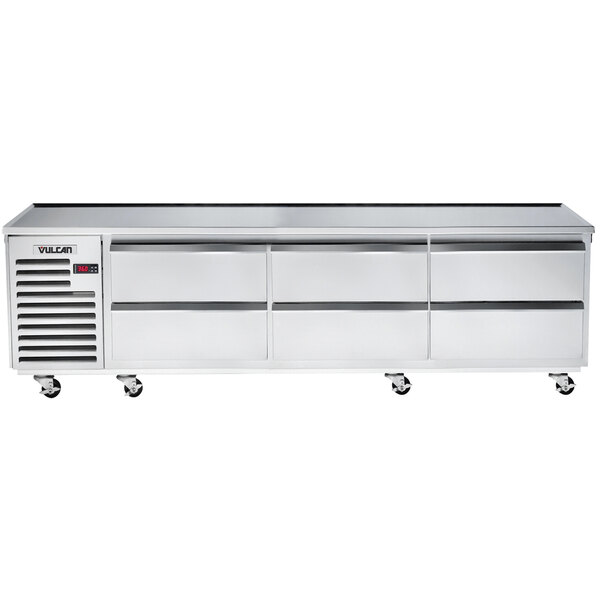

Make the most of your cooking line by adding this Vulcan VSC96 96" self-contained refrigerated chef base to your kitchen! This base has six drawers and can hold up to a total of (12) 12" x 20" x 6" pans of ingredients close at hand. By keeping ingredients nearby but still refrigerated, you can prevent additional trips back and forth to the refrigerator while still protecting your food from time and temperature abuse.

Each of the drawers has 14 gauge stainless steel drawer slides, a magnetic snap-in gasket, and a self-closing mechanism to ensure that the drawers close properly no matter how busy your staff is. And, for when you need to load or unload the drawers, they also have a stay open feature to hold them open while you work. Plus, to reduce interior condensation the drawers have controllable anti-condensate perimeter drawer heaters.

This unit features a stainless steel countertop with flat, unfished edge. It's designed to only be used in a modular set up with Vulcan V Series units (sold separately). The top has a maximum weight capacity of 1500 lb. so you can place your countertop charbroiler, griddle, or other equipment safely on top.

The cabinet is made of stainless steel inside and out for long-lasting durability and ease of cleaning. Inside, this chef base has 2" thick high-density, foamed-in, non-CFC insulation to help maintain cold interior temperatures and add extra rigidity to the cabinet. A set of 3" casters is included to make it easy to roll this unit away from the wall for easier servicing and cleaning. Plus, when you need to access the refrigeration system for service or maintenance the side, front, and rear access panels are easy to locate and remove.

The front-breathing design of the refrigeration system allows for zero-clearance installation against walls and between other equipment. The system uses a 1/2 hp compressor to circulate the R-404A refrigerant and the automatic non-electric condensate evaporator, off-cycle evaporator defrost, and condenser filter make this model easier to maintain. The interior temperature range of 34-38 degrees Fahrenheit is controlled by the microprocessor controls. A 115V electrical connection is required for operation.

Overall Dimensions:
Width: 96"
Depth: 34 1/8"
Height: 26"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:
  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • UL Listed, US & Canada

    UL Listed, US & Canada

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.

  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

Resources and Downloads for
Vulcan VSC96

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

RESIDENTIAL USERS: Vulcan assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.
