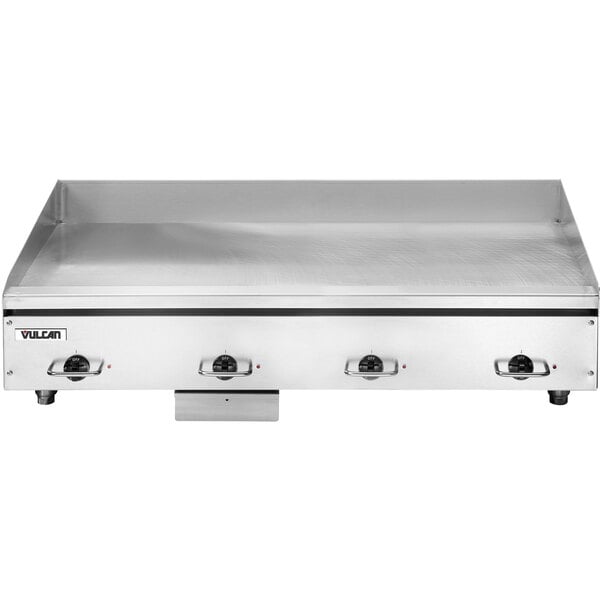

Vulcan HEG48E 48" Electric Countertop Griddle with Snap-Action Thermostatic Controls - 208V, 3 Phase, 21.6 kW
$4,292.10/EachShips free with Plus
Phone number must be able to receive text messages
Message and data rates may apply. You may opt-out at any time by sending STOP to +17172887303. (Note: if you texted STOP but would like to restart, text START, and make sure your number below is correct.)
Or call 717-392-7472 (Mon-Thur 24 Hours, Fri 12AM-8PM EST
Sat & Sun: 9AM-4PM EST)
Other Available Voltages:
- 24" deep, 1/2" thick steel griddle plate
- Two solid sheathed elements and one snap-action thermostat per 12" of width
- Range of 200-450 degrees Fahrenheit
- 3 1/2" wide grease chute; 6 qt. stainless steel grease drawer
- Stainless steel front and sides
- 4" backsplash and tapered side splashes
- 4" adjustable legs
- 208V, 3 phase, 21.6 kW
White Glove Delivery - Available -What is White Glove service?
Standard common carrier delivery options cover the cost of getting an item to your shipping address but our White Glove delivery service does that and more!
The White Glove agent will call to schedule a Call Before Delivery within a four hour window, which gives you the flexibility to work around your busy schedule and to prepare the space where your item will be placed. Upon delivery, trained professionals will unload your large item from the truck, bring it into the room of choice, unpack the item and remove all packaging debris from the premises.
Please note that White Glove delivery will typically add 5 - 7 business days to your order's transit, and only includes 30 minutes of on-site time. If on-site time beyond 30 minutes is required, you may be responsible for additional fees. While the agents will bring the items into the location of your choice, this service does not include set-up of the items being delivered, such as installation of casters, shelves, or other accessories. Small items will not be unpackaged individually; they will be set in place and debris and packaging material will not be removed.
|Vulcan HEG48E 208/3 Specs|
|Depth||31 1/2 Inches|
|Height||15 1/4 Inches|
|Cooking Surface Width||48 Inches|
|Cooking Surface Depth||24 Inches|
|Amps||45 - 67.4 Amps|
|Cooking Surface Material||Steel|
|Made in America||Yes|
|Number of Burners||4|
|Number of Controls||4|
|Plate Thickness||1/2 Inches|
|Temperature Range||200 - 450 Degrees F|
Vulcan HEG48E 208/3 Details
Upgrade your restaurant's grilling capabilities by adding this Vulcan HEG48E electric countertop griddle with snap-action thermostatic controls to your cooking lineup. Featuring two solid sheathed elements and one snap-action thermostat per 12" of width, this unit offers a total of 21.6 kW of heating power. Each pair of elements is equipped with its own independent snap-action thermostat so that you can ensure the proper temperature in each section of the griddle plate. The thermostatic controls have a temperature range of 200-450 degrees Fahrenheit, making this unit a great choice for a variety of cooking tasks from melting quesadillas to searing french toast and browning breakfast sausage.
The 1/2" thick steel griddle plate is ideal for your lower production business since it heats up quickly. The body of this griddle is made with a stainless steel front and side panels for easy cleaning and long-lasting durability. Four 4" adjustable legs keep this unit up off the counter so that you can easily clean underneath while a 4" stainless steel backsplash and tapered side splashes protect your walls and surrounding equipment from grease spatter. Plus, this griddle has bottom heat shields to direct the heat where you want it.
To make grease management easier, you can count on this model's 3 1/2" grease gutter to direct grease into the grease drawer for disposal. When you are ready to clean up for the day, it's fast and easy to empty this unit's 6 qt. grease drawer. A 208V, 3 phase electrical connection is required for operation.
Depth: 31 1/2"
Height: 15 1/4"
Cooking Surface Dimensions:
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
Made in America
This item was made in the United States of America.
This product must be hardwired; it does not plug into a standard wall outlet.
UL US & Canada
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL) for use in the United States of America and Canada.
Resources and Downloads for
Vulcan HEG48E 208/3
A PDF viewer is required to view this product's information. Download Adobe Acrobat software
RESIDENTIAL USERS: Vulcan assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. The right is reserved to deny shipment for residential usage; if this occurs, you will be notified as soon as possible.
Other Products from this Line
Vulcan HEG24E 24" Electric Countertop Griddle with Snap-Action Thermostatic Controls - 208V, 3 Phase, 10.8 kW
Vulcan HEG36E 36" Electric Countertop Griddle with Snap-Action Thermostatic Controls - 208V, 3 Phase, 16.2 kW
Vulcan HEG60E 60" Electric Countertop Griddle with Snap-Action Thermostatic Controls - 208V, 3 Phase, 27 kW
Vulcan HEG72E 72" Electric Countertop Griddle with Snap-Action Thermostatic Controls - 208V, 3 Phase, 32.4 kW
