Product Overview

  • 24" deep, 1/2" thick steel griddle plate
  • Two solid sheathed elements and one snap-action thermostat per 12" of width
  • Range of 200-450 degrees Fahrenheit
  • 3 1/2" wide grease chute; 6 qt. stainless steel grease drawer
  • Stainless steel front and sides
  • 4" backsplash and tapered side splashes
  • 4" adjustable legs
  • 208V, 1 phase, 10.8 kW
UPC Code:400012115967

Vulcan HEG24E 208/1 Specs

Quantity
1/Each
Shipping Weight
230 lb.
Width
24 Inches
Depth
31 1/2 Inches
Height
15 1/4 Inches
Cooking Surface Width
24 Inches
Cooking Surface Depth
24 Inches
Amps
51.9 Amps
Hertz
60 Hz
Phase
1 Phase
Voltage
208 Volts
Wattage
10.8 Kilowatts
Connection Type
Hardwired
Control Type
Thermostatic
Cooking Surface Material
Polished Steel
Features
Extra Deep Plate  Made in America  NSF Listed
Installation Type
Countertop
Number of Burners
2 Burners
Number of Controls
2 Controls
Plate Thickness
1/2 Inch
Plug Type
Hardwire
Power Type
Electric
Temperature Range
200 - 450 Degrees F
Temperature Settings
Adjustable
Type
Griddles
Usage
Heavy Duty

Vulcan HEG24E 208/1 Details

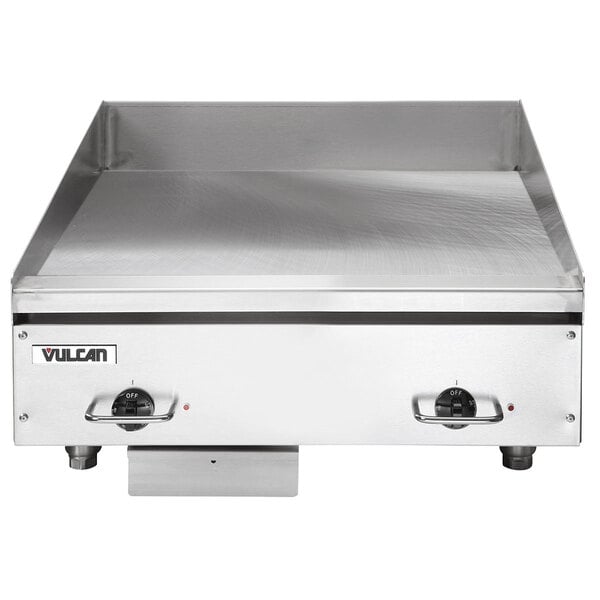

Upgrade your restaurant's grilling capabilities by adding this Vulcan HEG24E electric countertop griddle with snap-action thermostatic controls to your cooking lineup. Featuring two solid sheathed elements and one snap-action thermostat per 12" of width, this unit offers a total of 10.8 kW of heating power. Each pair of elements is equipped with its own independent snap-action thermostat so that you can ensure the proper temperature in each section of the griddle plate. The thermostatic controls have a temperature range of 200-450 degrees Fahrenheit, making this unit a great choice for a variety of cooking tasks from melting quesadillas to searing french toast and browning breakfast sausage.

The 1/2" thick steel griddle plate is ideal for your lower production business since it heats up quickly. The body of this griddle is made with a stainless steel front and side panels for easy cleaning and long-lasting durability. Four 4" adjustable legs keep this unit up off the counter so that you can easily clean underneath while a 4" stainless steel backsplash and tapered side splashes protect your walls and surrounding equipment from grease spatter. Plus, this griddle has bottom heat shields to direct the heat where you want it.

To make grease management easier, you can count on this model's 3 1/2" grease gutter to direct grease into the grease drawer for disposal. When you are ready to clean up for the day, it's fast and easy to empty this unit's 6 qt. grease drawer. A 208V, 1 phase electrical connection is required for operation.

Overall Dimensions:
Width: 24"
Depth: 31 1/2"
Height: 15 1/4"

Cooking Surface Dimensions:
Width: 24"
Depth: 24"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:
  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

  • UL Listed, US & Canada

    UL Listed, US & Canada

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.

  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • Made in America

    Made in America

    This item was made in the United States of America.
