$499.00/Each

Earn up to $14.97 back (1,497 points)with a Webstaurant Rewards Visa® Credit Card

Usually Ships in 3-5 Business Days from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • Ideal for leveling and stabilizing trailers
  • High-strength steel construction
  • Bright yellow color with a reflective collar for night visibility
  • Features a hydraulic system
  • 40,000 lb. lifting capacity; 100,000 lb. uniform static capacity
UPC Code:691215023429

Vestil Manufacturing Co H-LO-J-BEAM Specs

Quantity
1/Each
Shipping Weight
168 lb.
Length
26 11/16 Inches
Width
23 3/4 Inches
Height
41 - 47 Inches
Coating
Powder Coated
Features
Adjustable Height  Wheels
Material
Metal
Power Type
Hydraulic  Manual
Type
Stabilizing Jacks
Weight Capacity
100,000 lb.
Wheel Size
10 Inches

Vestil Manufacturing Co H-LO-J-BEAM Details

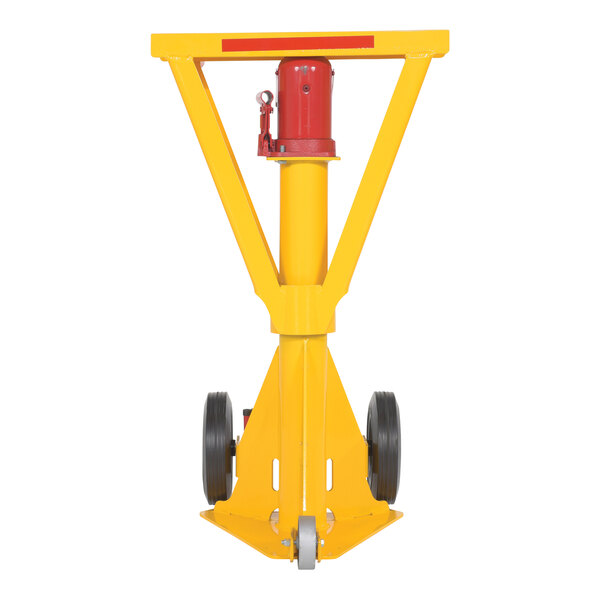

Ensure the stability of disconnected trailers on outdoor surfaces using this Vestil 100,000 lb. hydraulic trailer stabilizing jack with lifting beam. Designed to prevent semi-trailers from tipping over when not connected to a tractor, this stabilizing jack is an essential tool for industrial settings. It also serves to keep landing gear from sinking into soft surfaces, and its unique design enables it to level trailers parked on sloped ground, providing added security and peace of mind during operation. The flush-type Zerk fitting allows for easy lubrication of the ACME screw, ensuring smooth and efficient operation at all times. Meeting OSHA regulations when used in conjunction with wheel chocks, this trailer stabilizing jack is a reliable safety measure for your workplace.

This jack features a high-strength steel construction and a bright yellow powder-coated finish with a reflective collar, ensuring long-lasting durability and high visibility. Operation of the jack is simple using the 20" removable lever, which raises the jack between the lowered height of 41" and the raised height of 47". Designed with a hydraulic system, this jack offers the power you need to get the job done well. The lifting beam provides ample support and stability for heavy loads. This jack has a 40,000 lb. lifting capacity and a uniform static capacity of 100,000 lb. It is equipped with two hard rubber wheels and a steel wheel for transport, and it has a triangular base for stability.

Overall Dimensions:
Length: 26 11/16"
Width: 23 3/4"
Height: 41"-47"
Capacity: 100,000 lb.
Lifting Capacity: 40,000 lb.

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:
  • Made in America

    Made in America

    This item was made in the United States of America.
