Product Overview

  • Hands-free design improves sanitation
  • Vandal-resistant 0.5 GPM non-aerated spray device
  • Thermostatic mixing valve with integral check valves
  • Includes supply hoses from faucet to control module and from mixing valve to water lines
  • Water-resistant control module with internal flow setting switches - wall plug or battery operation
  • Chrome plated brass construction
UPC Code:400012250026
Shipping:Usually Ships in 2-3 Weeks

T&S Brass and Bronze Works EC-3104-VF5-TMV Specs

Shipping Weight
6.7 lb.
Spout Length
4 Inches
Faucet Width
6 1/8 Inches
Faucet Height
5 1/16 Inches
Spout Height
5 1/16 Inches
Faucet Centers
4 Inches
ADA Compliant

Flex Inlets Included
Flow Rate
0.5 GPM
Mounting Holes Required
2 Mounting Holes
Mounting Style
Deck Mounted
Spout Type
Temperature Rating
140 Degrees Fahrenheit
Touchless Faucets

Customer questions about this product

What measurements do I need to install a faucet?
When installing a faucet, these are some of the most common measurements you’ll need:

Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.

Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.

Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
Does this item have any additional agency approvals and certifications?
There are a wide range of regulations that govern plumbing code! We attempt to list any current certification marks with an official logo on the product page for your convenience. However, additional approvals, codes, and standards this product adheres to may be listed on the product specsheet.
Ask your own question!

T&S Brass and Bronze Works EC-3104-VF5-TMV Details

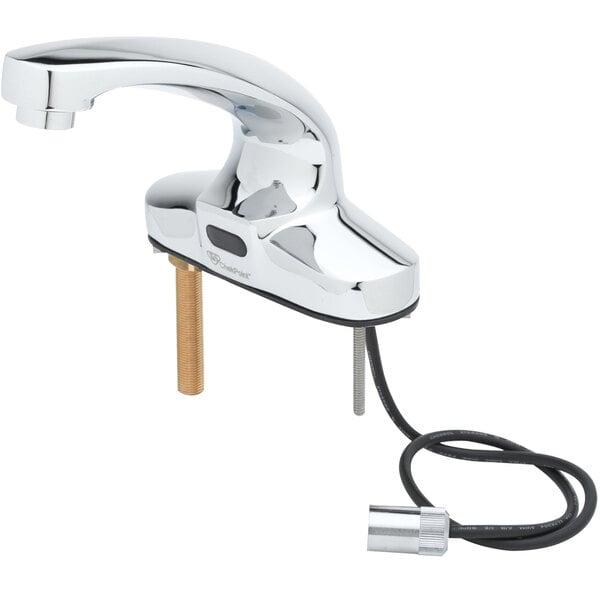

A perfect addition to any restroom, this T&S EC-3104-VF5-TMV ChekPoint electronic deck mounted faucet with 4" spout is a great way to reduce the spread of germs in your business! A hands-free faucet is a must-have for any safety-conscious operation, and it is particularly valuable in settings where disease can have a profound negative impact on your business, such as in restaurants or in healthcare facilities. The sensor in this unit detects when your hands are in position and dispenses water accordingly, eliminating the need to touch faucet handles and also reducing the chance of leaving a faucet running.

This faucet has a 4" solid cast brass spout with a chrome-plated finish for a sleek look and easy cleaning. A 0.5 GPM non-aerated spray outlet provides a gentle "shower" spray pattern that provides a low flow perfect for public lavatories and similar applications, and it is vandal-resistant to prevent tampering and damage.

The faucet mounts on 4" centers. One hole is used to run the 24" sensor cable from the control module to the faucet. The other is used to run a 1/2" NPSM x 1/4" NPSM, 18" stainless steel supply hose from the faucet to the control module. The control module itself comes in a water-resistant housing to provide protection against leaks, and contains the internal flow control setting switches. It can be operated using either the included 100-240VAC adapter, with (4) AA batteries, or it can be hardwired using the terminals on the back.

A thermostatic mixing valve combines incoming cold and hot water and limits the temperature of water going to the faucet better than a mechanical mixing valve, preventing scenarios where hot water overruns the cold water and causes scalding. Finally, two 18" long, 3/8" compression x 1/2" NPSM stainless steel supply hoses allow you to connect the unit to your facility's water lines.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

  • ADA Compliant

    ADA Compliant

    This item meets the criteria established by the Americans with Disabilities Act (ADA), helping make your restaurant more accessible to people with disabilities.

  • Hands-Free/Touchless


    This item is designed for hands-free use, which reduces the risk of cross-contamination and prevents germs from spreading.

  • NSF/ANSI/CAN 61 (Certified by CSA)

    NSF/ANSI/CAN 61 (Certified by CSA)

    This item is certified by CSA to meet the drinking water system component standards for Canada and the United States outlined in NSF/ANSI/CAN 61.

  • NSF/ANSI/CAN 372 (Certified by CSA)

    NSF/ANSI/CAN 372 (Certified by CSA)

    This item is certified by CSA to meet the drinking water system component lead content standards for Canada and the United States outlined in NSF/ANSI/CAN 372.
