Product Overview

  • 4 7/8" rigid cast spout
  • Vandal-resistant 0.5 GPM non-aerated spray device
  • Hydro-generator power supply negates the need for batteries or adapters
  • 3 5/8" x 4 3/16" x 2" control box, mounts below the countertop
  • Mechanical mixing valve provides pre-set single temperature
UPC Code:671262823739

T&S Brass and Bronze Works EC-3103-VF05-HG Specs

Quantity
1/Each
Shipping Weight
5 lb.
Spout Length
4 7/8 Inches
Faucet Width
6 1/8 Inches
Faucet Height
5 1/16 Inches
Battery Type
AA
Faucet Centers
4 Inches
Features
ADA Compliant  Flex Inlets Included  Hands Free  Made in America  Motion Sensor  With Mixing Valve
Finish
Chrome
Flow Rate
0.5 GPM
Material
Brass
Mounting Holes Required
3 Mounting Holes
Mounting Style
Deck Mounted
Plug Type
NEMA 1-15P
Pressure Rating
125 PSI
Spout Clearance
4 1/16 Inches
Spout Type
Cast
Temperature Rating
140 Degrees F
Type
Touchless Faucets
Water Inlet Size
3/8 Inches

T&S Brass and Bronze Works EC-3103-VF05-HG Details

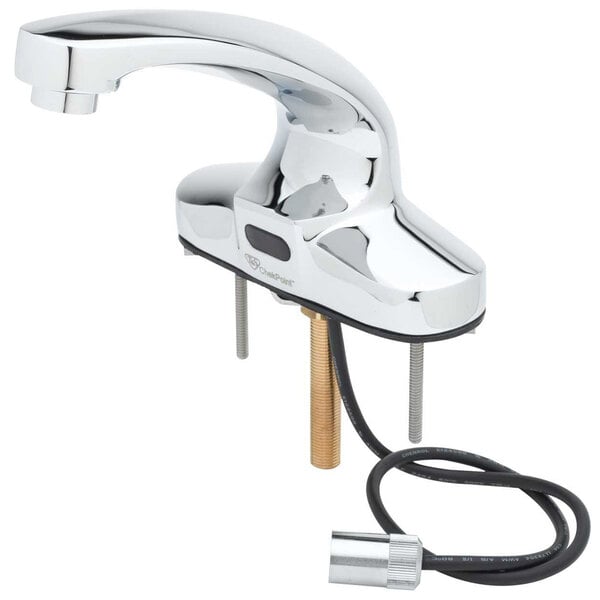

Whether you need to replace an existing faucet or you're working on a new installation, this T&S EC-3103-VF05-HG ChekPoint deck mounted electronic faucet is the perfect way to deliver water for handwashing, and its hands-free design works to improve sanitation and reduce the spread of pathogens in your facility too! It boasts a rigid cast spout that measures 4 7/8" long, while the 0.5 GPM non-aerated spray device regulates the flow and reduces splashing without aerating the water. Additionally, it is designed with vandal-resistant components to deter tampering and damage. The faucet's electronics and flow controls are housed in a 3 5/8" x 4 3/16" x 2" water-resistant control module box that installs below the counter. Power is supplied by a convenient hydro-generator system that negates the need for an AC adapter or batteries.

The water temperature can be easily adjusted by using the included mixing valve. Designed to install under the countertop with the control box, this valve combines incoming cold and hot water to pre-set a single temperature for your faucet's outlet water, which prevents burns or water that's too cold for effective hand-washing. This faucet connects to your water lines using (2) 18" flex hoses with 3/8" compression x 1/2" NPSM connections. Another 18" water hose and a 24" sensor cable connect the faucet to the control box. The base mounts on 4" centers with another hole in between for easy installation.

Overall Dimensions:
Spout Length: 4 7/8"
Faucet Height: 5 1/16"
Faucet Width: 6 1/8"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

Can I use this product to serve drinking water?

This product is not intended for use in applications where potable (drinking) water is dispensed for human consumption.

Does this item have any additional agency approvals and certifications?

There are a wide range of regulations that govern plumbing code! We attempt to list any current certification marks with an official logo on the product page for your convenience. However, additional approvals, codes, and standards this product adheres to may be listed on the product specsheet.

What measurements do I need to install a faucet?

When installing a faucet, these are some of the most common measurements you’ll need:

Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.

Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.

Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
Ask your own question!
  • ADA Compliant

    ADA Compliant

    This item meets criteria established by the Americans with Disabilities Act (ADA).

  • 1-15P

    1-15P

    This unit comes with a NEMA 1-15P plug.

  • 3/8" Water Connection

    3/8" Water Connection

    This unit comes with a 3/8" water connection for water supply.

  • NSF/ANSI/CAN 61 (Certified by CSA)

    NSF/ANSI/CAN 61 (Certified by CSA)

    This item is certified by CSA to meet the drinking water system component standards for Canada and the United States outlined in NSF/ANSI/CAN 61.

  • NSF/ANSI/CAN 372 (Certified by CSA)

    NSF/ANSI/CAN 372 (Certified by CSA)

    This item is certified by CSA to meet the drinking water system component lead content standards for Canada and the United States outlined in NSF/ANSI/CAN 372.

  • Made in America

    Made in America

    This item was made in the United States of America.
