Product Overview

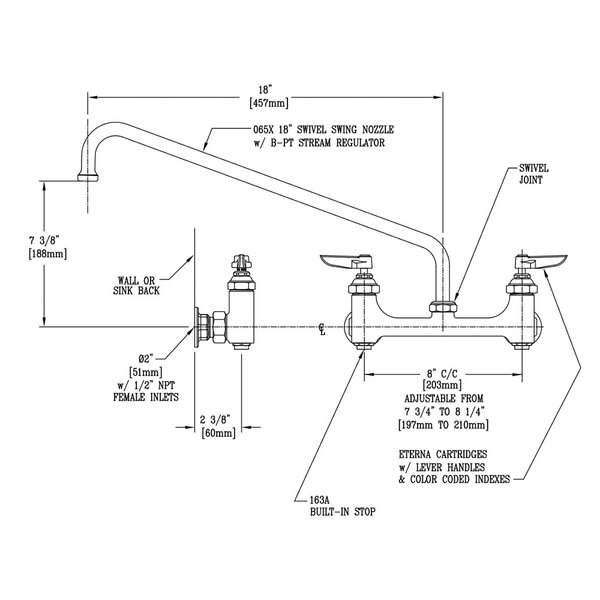

  • 8" centers, adjustable from 7 3/4" to 8 1/4"; 1/2" NPT female inlets with 2" flange
  • 18" swing nozzle with stream regulator
  • Lever handles with color coded indexes
  • Eterna compression cartridges; can withstand water temperatures up to 140 degrees Fahrenheit
  • Built-in stops let you shut off water supply to the faucet without affecting rest of the facility
  • Chrome plated brass construction
UPC Code:671262002660

T&S Brass and Bronze Works B-0230-BST Specs

Quantity
1/Each
Shipping Weight
9 lb.
Spout Length
18 Inches
Faucet Width
12 5/8 Inches
Faucet Height
9 9/16 Inches
Cartridge Type
Compression
Faucet Centers
8 Inches
Finish
Chrome
Flow Rate
22.5 GPM
Handle Type
Lever
Material
Brass
Mounting Style
Wall Mounted
Mounting Type
Adjustable
Pressure Rating
20 - 125 PSI
Rough In
8 Inches
Spout Clearance
6 7/16 Inches
Spout Type
Swing
Temperature Rating
40 - 140 Degrees F
Type
Faucets
Water Inlet Size
1/2 Inches

T&S Brass and Bronze Works B-0230-BST Details

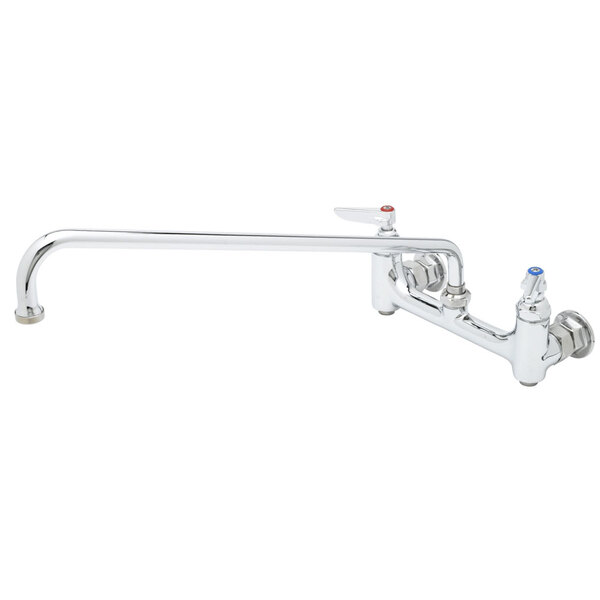

Install a convenient and useful water fixture in your business with the T&S B-0230-BST wall mount faucet! This faucet features 8" adjustable centers with 1/2" NPT female connections for fast and easy installation. And thanks to its 065X 18" swing spout, this faucet provides fast water flow that can be directed where you need it. Eterna compression cartridges provide excellent durability thanks to a solid brass spindle and body, and also make this faucet great for a variety of applications, even when the water supply contains some sand or grit. A stream regulator allows fast water flow with minimal backsplash. Additionally, its built-in stops allow you to perform maintenance on the faucet without affecting water flow to the rest of the building.

Overall Dimensions:
Spout Length: 18"
Faucet Height: 9 9/16"
Faucet Width: 12 5/8"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

Does this item have any additional agency approvals and certifications?

There are a wide range of regulations that govern plumbing code! We attempt to list any current certification marks with an official logo on the product page for your convenience. However, additional approvals, codes, and standards this product adheres to may be listed on the product specsheet.
Ask your own question!
  • ADA Compliant

    ADA Compliant

    This item meets criteria established by the Americans with Disabilities Act (ADA).

  • Made in America

    Made in America

    This item was made in the United States of America.

  • NSF/ANSI/CAN 61 (Certified by CSA)

    NSF/ANSI/CAN 61 (Certified by CSA)

    This item is certified by CSA to meet the drinking water system component standards for Canada and the United States outlined in NSF/ANSI/CAN 61.

  • NSF/ANSI/CAN 372 (Certified by CSA)

    NSF/ANSI/CAN 372 (Certified by CSA)

    This item is certified by CSA to meet the drinking water system component lead content standards for Canada and the United States outlined in NSF/ANSI/CAN 372.

  • 1/2" Water Connection

    1/2" Water Connection

    This unit comes with a 1/2" water connection for water supply.
