$188.37/Each

Ships free with Plus

or enter your email to be instantly sent the price!

Why do we do this?

Start a Live Chat with a Customer Service rep to receive the price!
Mon - Thur: 5am - 12am EST
Fri: 5am - 8pm EST
Sat & Sun: 9am - 4pm EST.

Earn up to $5.65 back (565 points)with a Webstaurant Rewards Visa® Credit Card

Quick Shipping

Usually ships in 1 business day

Product Overview

  • 8" centers, adjustable from 7 3/4" to 8 1/4"; 1/2" NPT female inlets with 2" flange
  • 11 7/8" overall height; 7 3/4" length; 2.2 gallon per minute aerator
  • Lever handles with color coded indexes
  • Cerama ceramic cartridges; can withstand water temperatures up to 180 degrees Fahrenheit
  • Furnished with washer for conversion from swivel to rigid nozzle
  • Chrome plated brass construction
UPC Code:671262749428

T&S Brass and Bronze Works B-0230-134XA-CR Specs

Quantity
1/Each
Shipping Weight
5.5 lb.
Spout Length
7 3/4 Inches
Faucet Width
12 5/8 Inches
Faucet Height
11 7/8 Inches
Cartridge Type
Ceramic
Faucet Centers
8 Inches
Features
ADA Compliant  Made in America
Finish
Chrome
Flow Rate
2.2 GPM
Handle Type
Lever
Material
Brass
Mounting Style
Wall Mounted
Mounting Type
Adjustable
Pressure Rating
20 - 125 PSI
Spout Clearance
5 13/16 Inches
Spout Type
Gooseneck
Temperature Rating
40 - 180 Degrees Fahrenheit
Type
Faucets
Water Inlet Size
1/2 Inches

Customer questions about this product

Does this item have any additional agency approvals and certifications?

There are a wide range of regulations that govern plumbing code! We attempt to list any current certification marks with an official logo on the product page for your convenience. However, additional approvals, codes, and standards this product adheres to may be listed on the product specsheet.

Ask your own question!

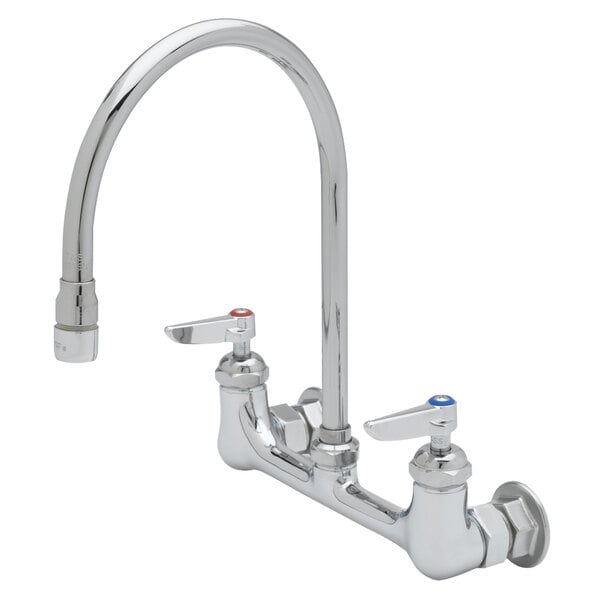

T&S Brass and Bronze Works B-0230-134XA-CR Details

Install a convenient and useful water fixture in your business with the T&S B-0230-134XA-CR wall mount double pantry faucet! This faucet features 8" adjustable centers with 1/2" NPT female connections for fast and easy installation. Its 7 3/4" swivel gooseneck length provides fast water flow that can be directed where you need it and Cerama ceramic cartridges provide excellent durability and leak-resistance since there is no seat washer, while using up to 20% less water than compression cartridges. For added convenience, it comes with a washer that lets you change it from a swing nozzle to a stationary one.

Overall Dimensions:
Spout Length: 7 3/4"
Faucet Height: 11 7/8"
Faucet Width: 12 5/8"

Attention CA Residents:

  • Made in America

    Made in America

    This item was made in the United States of America.

  • ADA Compliant

    ADA Compliant

    This item meets criteria established by the Americans with Disabilities Act (ADA).

  • NSF/ANSI/CAN 61 (Certified by CSA)

    NSF/ANSI/CAN 61 (Certified by CSA)

    This item is certified by CSA to meet the drinking water system component standards for Canada and the United States outlined in NSF/ANSI/CAN 61.

  • NSF/ANSI/CAN 372 (Certified by CSA)

    NSF/ANSI/CAN 372 (Certified by CSA)

    This item is certified by CSA to meet the drinking water system component lead content standards for Canada and the United States outlined in NSF/ANSI/CAN 372.

  • 1/2" Water Connection

    1/2" Water Connection

    This unit comes with a 1/2" water connection for water supply.

Resources and Downloads for
T&S Brass and Bronze Works B-0230-134XA-CR

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Customer Reviews

Overall User Rating

5.0 stars from 1 review

Rated 5 out of 5 stars

1 reviews rated this 5 out of 5 stars.

0 reviews rated this 4 out of 5 stars.

0 reviews rated this 3 out of 5 stars.

0 reviews rated this 2 out of 5 stars.

0 reviews rated this 1 out of 5 stars.

Frequently Mentioned

  • built
  • easy
  • everything
  • extra
  • great
  • hundred
  • inexpensive
  • install
  • more
  • options

Customer Photos & Videos

T&S Brass and Bronze Works Customer Review from
