Product Overview

  • 8" centers, adjustable from 7 3/4" to 8 1/4"; 1/2" NPT female inlets with 2" flange
  • 9 11/16" overall height; 2 5/8" length; 2.2 gallon per minute aerator
  • 4" wrist-action handles with color coded indexes
  • Cerama ceramic cartridges; can withstand water temperatures up to 180 degrees Fahrenheit
  • Furnished with washer for conversion from swivel to rigid nozzle
  • Chrome plated brass construction
UPC Code:400011200237

T&S Brass and Bronze Works B-0230-132XA-CR Specs

Shipping Weight
5.5 lb.
Spout Length
2 7/8 Inches
Faucet Width
16 Inches
Faucet Height
9 Inches
Cartridge Type
Faucet Centers
8 Inches
ADA Compliant

Made in America
Flow Rate
2.2 GPM
Handle Type
Mounting Style
Wall Mounted
Mounting Type
Pressure Rating
20 - 125 PSI
Spout Clearance
6 Inches
Spout Type
Temperature Rating
40 - 180 Degrees Fahrenheit
Water Inlet Size
1/2 Inches

Customer questions about this product

Does this item have any additional agency approvals and certifications?

There are a wide range of regulations that govern plumbing code! We attempt to list any current certification marks with an official logo on the product page for your convenience. However, additional approvals, codes, and standards this product adheres to may be listed on the product specsheet.

Ask your own question!

T&S Brass and Bronze Works B-0230-132XA-CR Details

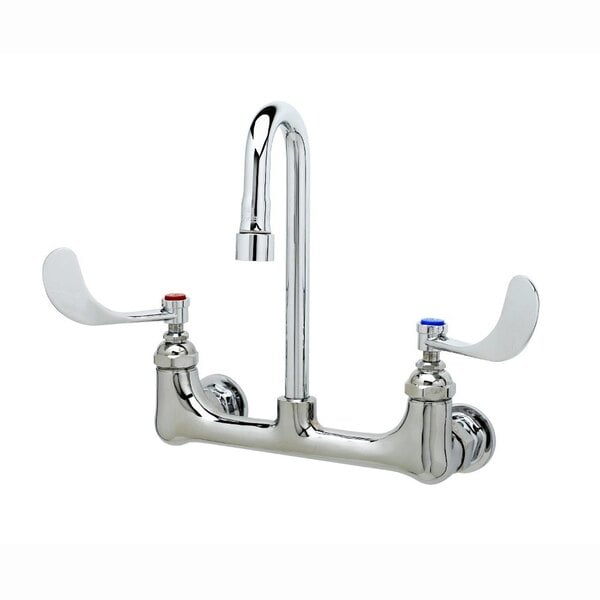

Install a convenient and useful water fixture in your business with the T&S B-0230-132XA-CR wall mount double pantry faucet! This faucet features 8" adjustable centers with 1/2" NPT female connections for fast and easy installation. Its 2 7/8" gooseneck length provides excellent water flow, and the Cerama ceramic cartridges provide excellent durability and leak-resistance since there is no seat washer, while using up to 20% less water than compression cartridges. And thanks to its 4" wrist action handles, you can turn this faucet on and off without using your hands.

Overall Dimensions:
Spout Length: 2 7/8"
Faucet Height: 9"
Faucet Width: 16"

  • Made in America

    Made in America

    This item was made in the United States of America.

  • ADA Compliant

    ADA Compliant

    This item meets the criteria established by the Americans with Disabilities Act (ADA), helping make your restaurant more accessible to people with disabilities.

  • NSF/ANSI/CAN 61 (Certified by CSA)

    NSF/ANSI/CAN 61 (Certified by CSA)

    This item is certified by CSA to meet the drinking water system component standards for Canada and the United States outlined in NSF/ANSI/CAN 61.

  • NSF/ANSI/CAN 372 (Certified by CSA)

    NSF/ANSI/CAN 372 (Certified by CSA)

    This item is certified by CSA to meet the drinking water system component lead content standards for Canada and the United States outlined in NSF/ANSI/CAN 372.

  • 1/2" Water Connection

    1/2" Water Connection

    This unit comes with a 1/2" water connection for water supply.
