$984.22/Each

Ships free with

Earn up to $29.53 back (2,953 points)with a Webstaurant Rewards Visa® Credit Card

Usually Ships in 2-3 Weeks from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • 8" centers, adjustable from 7 3/4" to 8 1/4"; 1/2" NPT female inlets with 2" flange
  • Balancer; 68" flex hose; 1.07 GPM B-0108 spray valve
  • Lever handles with color coded indexes
  • Cerama ceramic cartridges; check valves; withstands temperatures up to 140 degrees Fahrenheit
  • Includes 12" add-on faucet, vacuum breaker, and 6" wall bracket; 51 5/16" overall height
UPC Code:671262753371

T&S Brass and Bronze Works B-0140-08 Specs

Quantity
1/Each
Shipping Weight
13 lb.
Hose Length
68 Inches
Faucet Width
12 5/8 Inches
Faucet Height
51 5/16 Inches
Add-On Faucet
12 Inches
Add-on Flow Rate
24 GPM
Add-On Type
Swing
Cartridge Type
Ceramic
Faucet Centers
8 Inches
Features
Vacuum Breaker
Finish
Chrome
Handle Type
Lever
Material
Brass
Mounting Style
Wall Mounted
Mounting Type
Adjustable
Pre Rinse Unit Type
Hose and Balancer
Pressure Rating
125 PSI
Spray Valve Flow Rate
1.07 GPM
Temperature Rating
40 - 140 Degrees F
Type
Pre-Rinse Units
Water Inlet Size
1/2 Inches

T&S Brass and Bronze Works B-0140-08 Details

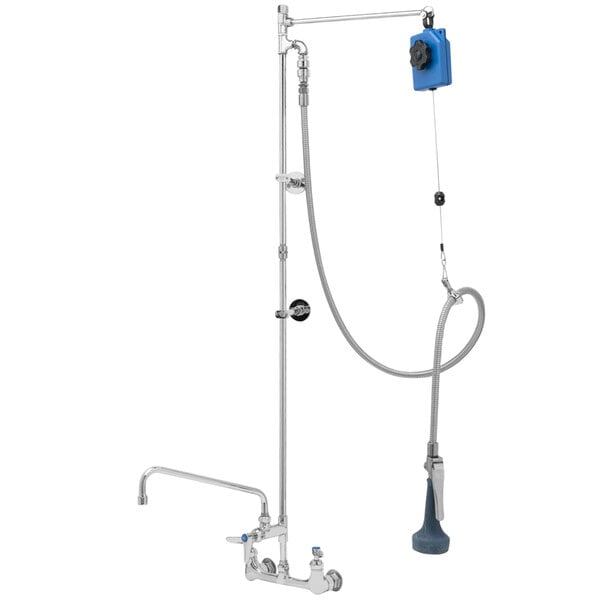

This T&S B-0140-08 wall mounted pre-rinse faucet features a balancer system, which is perfect for applications where you will be doing normal pre-rinsing but also need additional reach for rinsing out equipment or filling sinks nearby. This design also keeps the hose above the user and out of the way when not in use. A 1.07 GPM spray valve makes it easy to clear food debris off of dishes before washing them, while its unique ergonomic design is easier to hold, requires less force to activate, and doesn't get as hot to hold when compared to a standard spray valve. This in turn reduces strain and fatigue on employees! Additionally, a 12" add-on swing faucet makes your sink even more versatile, allowing you to switch between the pre-rinse setup and normal faucet depending on what you need! To make installation easy, it also boasts 1/2" NPT female inlets on 8" adjustable centers.

- Balancer design provides wide range of motion, extra hose reach, and keeps the hose out of the way when not in use; 68" hose

- 1.07 GPM spray valve (B-0108) easier to hold and requires less force to activate, reducing employee fatigue; also minimizes heat transfer so that it's comfortable to hold

- Lever handles with color coded indexes for durability and easy operation

- Cerama ceramic cartridges provide excellent durability and leak-resistance since there is no seat washer, while using up to 20% less water than compression cartridges; check valves are included

- 12" add-on swing faucet is perfect for times when you need water but don't need a pre-rinse faucet

- Includes wall bracket for added support; vacuum breaker prevents backflow

- Durable chrome plated brass construction

Overall Dimensions:
Faucet Height: 51 5/16"
Faucet Width: 12 5/8"
Add-On Faucet: 12"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:
  • Made in America

    Made in America

    This item was made in the United States of America.

  • NSF/ANSI/CAN 61 (Certified by CSA)

    NSF/ANSI/CAN 61 (Certified by CSA)

    This item is certified by CSA to meet the drinking water system component standards for Canada and the United States outlined in NSF/ANSI/CAN 61.

  • NSF/ANSI/CAN 372 (Certified by CSA)

    NSF/ANSI/CAN 372 (Certified by CSA)

    This item is certified by CSA to meet the drinking water system component lead content standards for Canada and the United States outlined in NSF/ANSI/CAN 372.

  • 1/2" Water Connection

    1/2" Water Connection

    This unit comes with a 1/2" water connection for water supply.

Questions & Answers

Looking For Specific Info? Get quick answers to product questions with our AI-powered search.

Ask about this product

Frequently Asked Questions From Customers

Can I get a spray valve with a higher flow rate (GPM)?
The maximum flow rate for all commercial pre-rinse spray valves produced after January 28, 2019 is 1.28 GPM – more specific regulations may apply based on the valve’s spray force in ounce-force (ozf).

Product Class 1 (5 ozf or less) – Max Flow Rate: 1 GPM
Product Class 2 (5.01 - 8 ozf) – Max Flow Rate: 1.2 GPM
Product Class 3 (over 8 ozf) – Max Flow Rate: 1.28 GPM

These regulations do not impact spray valves made before January 28, 2019, and are implemented by the US Department of Energy in an effort to improve energy conservation.
