$9,813.00/Each
Ships free with PlusConfiguration: Glass Half Door
Installation Services
Product Overview
- Stainless steel front, anodized aluminum ends, and GalFan coated steel back
- Interior has a clear-coated aluminum liner with a stainless steel floor and coved corners
- Refrigerator on top section and freezer on bottom section have double pane thermal glass half doors
- Includes 3 heavy-duty adjustable PVC-coated shelves
- Uses R-290 refrigerant; 115V, 1/10 hp and 1/2 hp
Other Products from this Line
- Quantity
- 1/Each
- Shipping Weight
- 380 lb.
- Width
- 27 Inches
- Depth
- 29 3/4 Inches
- Height
- 83 3/8 Inches
- Power Cord Length
- 10 Feet
- Amps
- 6.3 Amps
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 115 Volts
- Access Type
- Doors
- Capacity - Freezer
- 8.3 cu. ft.
- Capacity - Refrigerator
- 11.4 cu. ft.
- Casters
- With Casters
- Color
- Silver
- Compressor Location
- Bottom Mounted
- Construction
- Stainless Steel and Aluminum
- Door Style
- Swing
- Door Type
- Glass
- Dutch Half Doors
- With Dutch Half Doors
- Features
- Dual Temperature Energy Star Qualified LED Lighting Self-Closing Doors
- Hinge Location
- Right
- Horsepower - Freezer
- 1/2 HP
- Horsepower - Refrigerator
- 1/10 HP
- Installation Type
- Freestanding
- Number of Doors
- 2 Doors
- Number of Shelves
- 3 Shelves
- Refrigerant Type
- R-290
- Sections
- 2 Sections
- Shelf Material
- PVC Coated
- Temperature Range - Freezer
- -10 - 0 Degrees F
- Temperature Range - Refrigerator
- 33 - 38 Degrees F
- Type
- Freezers Refrigerators

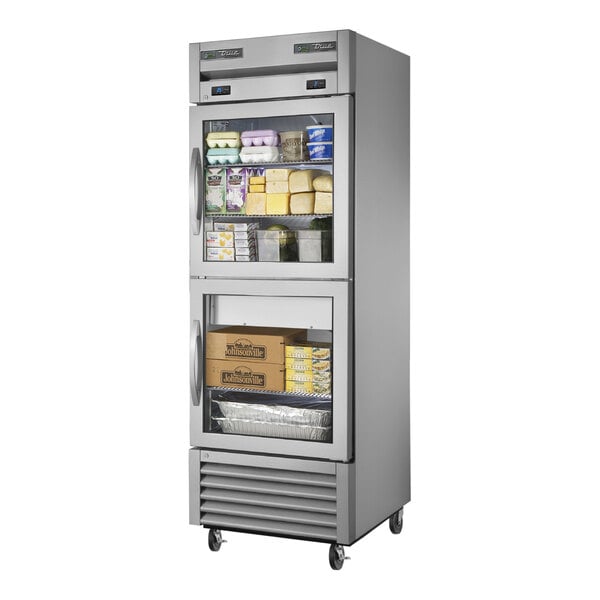

True Refrigeration T-23DT-G-HC~FGD01 Details
This True 27" bottom mounted reach-in combination refrigerator / freezer offers superior temperature control, easy maintenance, and low utility costs. To promote easy product retrieval at all times, the unit features bright and even LED interior lighting. The easily replaceable, energy-efficient LEDs generate less heat than fluorescent bulbs to keep internal temperatures low, and because they last significantly longer than other lights, you'll save money on replacement costs over time. The lights are safety shielded for added peace of mind. The unit includes three heavy-duty PVC-coated wire shelves that are adjustable in 1/2" increments to help organize your ingredients in an efficient way.
Its bottom mounted compressors allow you to use the top of the unit for storage. For added ease of use, this unit features electronic controls and an exterior temperature display. The refrigerator on the top section and the freezer on the bottom section both have double pane low-E glass half doors that come with magnetic door gaskets that provide a tight seal. The unit's exterior consists of a stainless steel front, anodized aluminum ends, and a corrosion-resistant GalFan coated steel back. Its interior boasts a clear-coated aluminum liner, coved corners, and a stainless steel floor that is easy to clean. Additionally, this unit's cabinet features foamed-in-place polyurethane insulation for added structural strength and to reduce energy loss.
This unit comes with (4) 4" stem casters, two with brakes, for maneuverability during cleaning. Both the 1/10 hp refrigerator compressor and the 1/2 hp freezer compressor use R-290 refrigerant that has an ozone depletion potential (ODP) of 0 and a global warming potential (GWP) of 3. The refrigerator section holds cabinet temperatures of 33-38 degrees Fahrenheit, while the freezer section maintains a cabinet temperature of -10 degrees Fahrenheit, keeping foods at safe storage temperatures. This unit requires a 115V electrical connection for operation.
Overall Dimensions:
Width: 27"
Depth: 29 3/4"
Height: 83 3/8"
Top Section Capacity: 11.4 cu. ft.
Bottom Section Capacity: 8.3 cu. ft.
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Customer questions about this product
I haven’t heard of R-290, R-600a, R-513a, or R-448A refrigerant before. What is it?
What is Galfan coating?
Can this item fit through a standard height 80" doorway ?
5-15P
This unit comes with a NEMA 5-15P plug.
UL Listed, US & Canada
This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.
UL Classified EPH
This product has been certified by the Underwriters Laboratories (UL) to meet applicable ANSI/NSF standards and / or other food equipment hygiene codes and requirements.
Energy Star Qualified
This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.
