- Features a Load-Sure guard to protect against improper loading
- Easy-to-use digital microprocessor control
- Boasts a thermostatic expansion valve metering device for quick refrigeration recovery times
- Includes LED lighting and guaranteed for life cam-lift hinges and work flow door handle
- 115V; 3/4 hp compressor; R-404A refrigerant
- Shipping Weight
- 870 lb.
- 76 5/16 Inches
- 35 Inches
- 83 7/16 Inches
- Interior Width
- 71 5/16 Inches
- Interior Depth
- 27 Inches
- Interior Height
- 58 7/16 Inches
- 16 Amps
- 60 Hertz
- 1 Phase
- 115 Volts
- Access Type
- 69.1 cu. ft.
- Compressor Location
- Top Mounted
- Stainless Steel and Aluminum
- Door Style
- Door Type
- Dutch Half Doors
- Without Dutch Half Doors
- LED Lighting
Made in America
- Hinge Location
- 3/4 HP
- Installation Type
- Number of Doors
- 3 Doors
- Number of Shelves
- 9 Shelves
- Plug Type
- NEMA 5-20P
- Refrigerant Type
- Temperature Range
- -10 - 0 Degrees F
Customer questions about this product
Can I use the top of my unit for storage?
Nothing should be stored on top of your unit. Typically, top mount refrigerators and freezers do not have an actual top. If you’re looking for extra storage space, we recommend choosing a bottom mount unit.
Can this item fit through a standard height 80" doorway ?
Due to the height of this item, it may not be able to fit through a standard 80" tall doorway when standing upright. Please consider the best means of entry before purchasing, or measure your entryway to ensure that you will be able to bring your order inside if the item cannot be carried on its side.
Traulsen G31010 Details

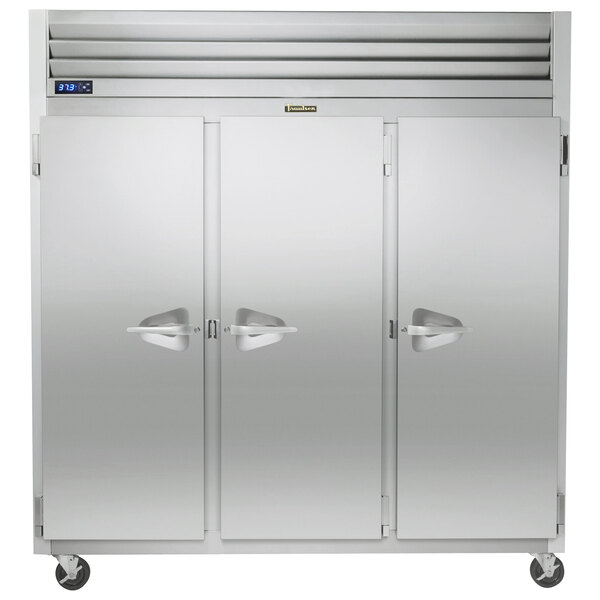

This Traulsen G31010 77" G Series three section solid door reach in freezer utilizes microprocessor controls and 2" of foamed-in-place insulation to provide outstanding temperature preservation and performance! This freezer features durable stainless steel doors and front, with anodized aluminum sides and interior construction. The G31010 features a left hinged door on the left section, with right hinged doors on the middle and right sections. Plus, the unit boasts of a sturdy door handle design that's guaranteed for life, ensuring that you can use it for many years to come.
The spacious 69 cubic foot interior of this Traulsen three door reach in freezer comes standard with 9 epoxy coated wire shelves capable of holding 225 lb. each, and automatically-activated LED interior lighting. The doors' cam lift hinge design is guaranteed for life, and features a self-closing design, with a stay open feature when the door is opened past 120 degrees.
The Traulsen G31010 features a top mounted, self-contained, balanced refrigeration system that uses R-404A refrigerant. Its 3/4 hp compressor is designed to hold temperatures between -5 and 0 degrees Fahrenheit. Traulsen's unique clockwise airflow pattern keeps cold air in, and warm air out, whenever the door is opened. A gasket-protecting metal door pan, and removable vinyl magnetic door gaskets ensure durability and outstanding temperature preservation. Four 6" casters with brakes make the Traulsen G31010 three section reach in freezer easy to move for cleaning.
Width: 76 5/16"
Height: 83 7/16"
Width: 71 5/16"
Height: 58 7/16"
Capacity: 69 cu. ft.
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
Made in America
This item was made in the United States of America.
UL US & Canada
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL) for use in the United States of America and Canada.
This unit comes with a NEMA 5-20P plug.
Resources and Downloads for
A PDF viewer is required to view this product's information. Download Adobe Acrobat software
Note: Traulsen equipment has a 3 year parts and labor warranty. Traulsen compressors have a 5 year warranty. RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.
