Product Overview
- Stainless steel exterior, aluminum interior
- Roll-in design
- INTELA-TRAUL microprocessor control system
- Accommodates two 27" x 29" x 66" pan racks
- Foamed-in-place insulation helps maintain consistent temperatures
- Self-closing doors with stay-open feature provide convenience
- Environmentally-friendly, R-404A refrigerant
- 115V
Other Products from this Line
$18,833.00/Each
$36,397.00/Each
- Quantity
- 1/Each
- Shipping Weight
- 720 lb.
- Width
- 68 Inches
- Depth
- 35 9/16 Inches
- Height
- 83 1/4 Inches
- Amps
- 9.4 Amps
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 115/208-230 Volts
- Capacity
- 74.3 cu. ft.
- Compressor Location
- Top Mounted
- Construction
- Stainless Steel and Aluminum
- Door Style
- Swing
- Door Type
- Solid
- Dutch Half Doors
- Without Dutch Half Doors
- Features
- Made in America NSF Listed Roll-In Spec Line
- Horsepower
- 1 HP
- Number of Doors
- 2 Doors
- Plug Type
- NEMA L14-20P
- Rack Capacity
- 2
- Refrigerant Type
- R-404A
- Sections
- 2 Sections
- Temperature Range
- -5 - 0 Degrees F

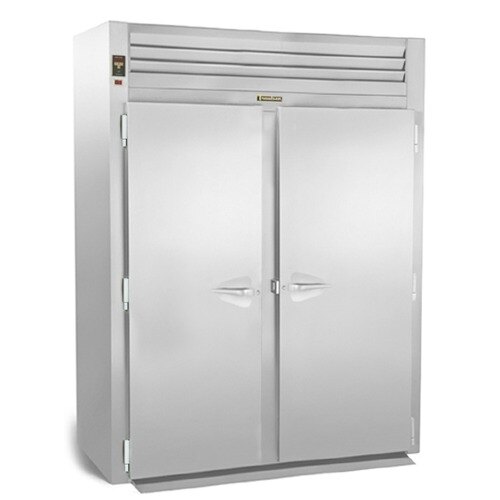

Traulsen AIF232LUT-FHS Details
Store frozen food and ingredients with ease using this Traulsen Specification Line AIF232LUT-FHS 74.3 cu. ft. two section roll-in freezer. It uses its INTELA-TRAUL microprocessor controls to deliver unparalleled accuracy and performance for your commercial kitchen. As the industry's most advanced technology for controlling and monitoring temperatures, the easy-to-use INTELA-TRAUL controls provide HACCP temperature monitoring and are even NAFEM Data Protocol compliant to deliver the results you expect for years to come.
With its roll-in design, this freezer can accommodate two 27" x 29" x 66" pan racks full of frozen food! This unit's doors are self-closing with a stay-open feature when they're opened past 120 degrees for easy loading and unloading. The included metal door liners also protect the removable vinyl magnetic door gaskets for a secure, tight seal.
A top mounted 1 hp compressor, environmentally-friendly R-404A refrigerant, and high density, foamed-in-place insulation ensure outstanding temperature preservation and efficiency. Plus, the compressor's top mounted design prevents dust, food, and spills from damaging the compressor's fan intake. This unit requires a 115V electrical connection for operation.
Overall Dimensions:
Length: 68"
Width: 35 9/16"
Height: 83 1/4"
Interior Dimensions:
Width: 63"
Depth: 28"
Height: 66 5/16"
Capacity: 74.3 cu. ft.
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Customer questions about this product
Can this item fit through a standard height 80" doorway ?
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
Made in America
This item was made in the United States of America.
UL Listed, US & Canada
This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.
L14-20P
This unit comes with a locking NEMA L14-20P plug.
Need Parts & Accessories?
Show replacement parts and accessories for Traulsen AIF232LUT-FHS today!
Resources and Downloads for
Traulsen AIF232LUT-FHS
A PDF viewer is required to view this product's information. Download Adobe Acrobat software
Warranty Info
Note: Traulsen equipment has a 3 year parts and labor warranty. Traulsen compressors have a 5 year warranty. RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.
