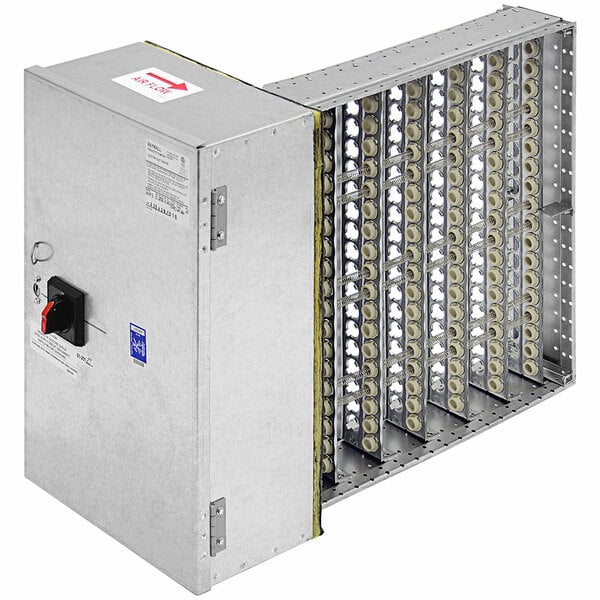

TPI PD Series 26" x 35 1/2" x 16" Packaged Duct Heater 4PD3524163 - 480V, 3 Phase, 35 kW

TPI 4PD3524163 Details

Provide heating in your industrial or commercial environment with this TPI PD Series 26" x 35 1/2" x 16" packaged duct heater 4PD3524163! This heater mounts to the ductwork in your establishment to provide an even, steady flow of warm air. It is constructed of durable galvanized steel for long-lasting use, and it has a 24" x 16" duct for installation. It features 1/2" of fiberglass insulation for efficient heat transfer and reduced heat loss. Plus, the compartment includes a hinged lid to cover and protect the internal components.

The heater's automatic reset temperature limiting control regulates the electric flow, while the secondary temperature protective device prevents overheating. For additional safety, this unit also features a door interlock to shut off the motor when the door is opened, along with a pressure fan interlock to shut off the unit if it detects abnormal circumstances.

Providing 35 kW of power, this heater is an efficient choice for your facility. It is regulated with 3 step-down control transformers that reduce the voltage output to 24V. For optimal operation, this unit is also built with a definite purpose magnetic contactor to produce a strong magnetic field. This unit requires a 480V, 3 phase electrical connection for operation.

Overall Dimensions:
Length: 26"
Width: 35 1/2"
Height: 16"

Duct Dimensions:
Width: 24"
Height: 16"
