Saleregular price$374.49

$280.87/Each

Ships free with Plus

Earn up to $8.43 back (843 points)with a Webstaurant Rewards Visa® Credit Card

Quick Shipping

Usually ships in 1 business day

Not eligible for expedited shipping

Product Overview

  • Temperature range between 60 and 110 degrees Fahrenheit
  • 10 ft. air throw at 262 CFM for powerful heat circulation
  • Includes thermal cut-off switch and manual reset to prevent overheating
  • Mount or temporarily place on floor, or use bracket (sold separately) to mount to wall or ceiling
  • 208/240V, 1 phase, 3.6-4.8 kW
UPC Code:686334446297

TPI HF685TC Specs

Quantity
1/Each
Shipping Weight
20.48 lb.
Width
13 1/2 Inches
Depth
11 1/2 Inches
Height
17 1/2 Inches
Power Cord Length
6 Feet
Phase
1 Phase
Voltage
208/240 Volts
Wattage
3.6 - 4.8 Kilowatts
Air Throw
10 Feet
Heating Area
680 Feet
Max CFM
262 CFM
Mounting Style
Ceiling  Wall Mounted
Plug Type
NEMA 6-30P
Temperature Range
60 - 110 Degrees F
Total BTU
16,384 BTU
Type
Forced Air  Heaters
Usage
Indoor

TPI HF685TC Details

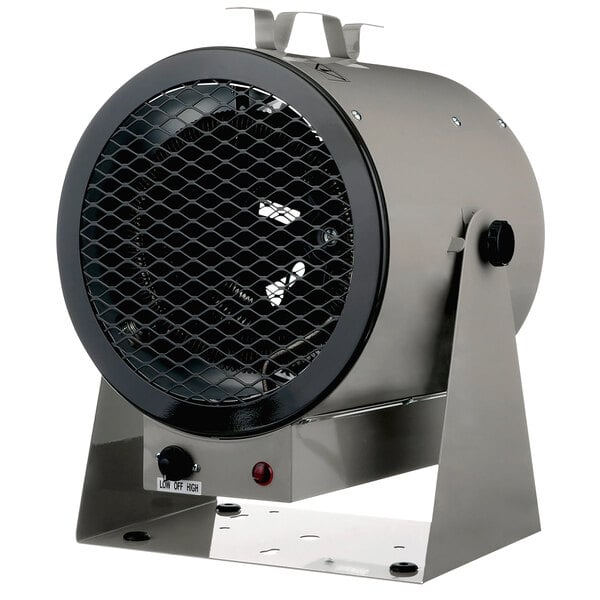

Maintain a comfortable workspace with the TPI HF685TC 680 Series Bulldog forced air wall / ceiling mount portable heater. This heater is designed to fit virtually any indoor location, whether on the floor or mounted to the wall or ceiling (mounting bracket sold separately). Wherever it's used, it provides excellent air circulation, throwing air 10 ft. at 262 CFM for well-distributed, even heat.

Adjustable with an easy-to-use thermostat, the heat output from the steel tubular heating element ranges from 60 to 110 degrees Fahrenheit. It's also protected with features to ensure mechanical safety. It not only includes a high-limit thermal cut-out switch to prevent the heat from rising to unsafe temperatures, it boasts a manual reset. In the event the heat does exceed the limit, the user can manually reset the heater, allowing it to cool to a safe and sustainable temperature.

Whether at a temporary jobsite or in your facility, using this 680 Series Bulldog heater is a great way to keep warm. It comes standard with a 6' long cord for ample slack between it and the 208/240V electrical connection it needs to operate.

Overall Dimensions:
Width: 13 1/2"
Depth: 11 1/2"
Height: 17 1/2"

Attention CA Residents:

Customer questions about this product

Can I use this heater outdoors?

No, because this heater has an electric motor outdoor use is not recommended for the safety of the operator.
Ask your own question!
  • 6-30P

    6-30P

    This unit comes with a NEMA 6-30P plug.

  • UL Listed, US & Canada

    UL Listed, US & Canada

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.

Need Parts & Accessories?

Show replacement parts and accessories for TPI HF685TC today!

Resources and Downloads for
TPI HF685TC

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Find Related Products
