Product Overview

  • Features a built-in, tamper-proof thermostat
  • Temperature range of 0 degrees to 110 degrees Fahrenheit
  • Designed with a vane axial fan blade; 600 RPM motor
  • Durable, powder coated 18 gauge steel grill construction
  • 120V, 1500/750W
UPC Code:00686334380881

TPI E3323TDRP Specs

Quantity
1/Each
Shipping Weight
26.9 lb.
Width
14 1/8 Inches
Depth
4 Inches
Height
19 1/2 Inches
Amps
12.5 Amps
Phase
1 Phase
Voltage
120 Volts
Features
Made in America
Material
Steel
Max CFM
175 CFM
Mounting Style
Wall Mounted
Plug Type
Hardwire
Temperature Range
0 - 110 Degrees F
Total BTU
5,120 BTU
Type
Heaters

TPI E3323TDRP Details

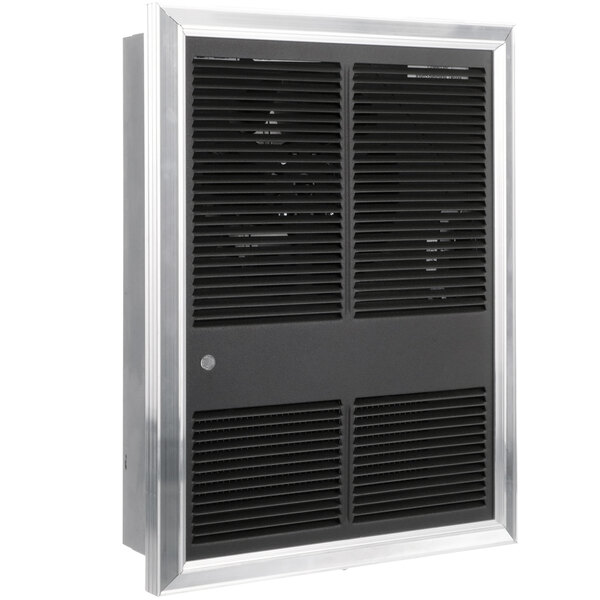

Heat industrial spaces with this TPI E3323TD-RP 3320 series commercial fan forced wall heater. This unit features a built-in, tamper-proof thermostat with temperature range of 0 degrees to 110 degrees Fahrenheit. Designed with a vane axial fan blade, this heater has a 600 RPM motor that provides a quiet 175 CFM of down flow air. Thanks to the durable, powder coated 18 gauge steel grill construction, this heater is built for long-lasting use.

For added versatility, you can use an optional surface or semi-recess mounting adapter (sold separately) to mount this heater where you need it most. This unit has a manual disconnect switch, automatic fan delay circuit, and an automatic reset thermal limit. This unit requires a 120V electrical connection for operation.

Rough-In Dimensions:
Width: 14 1/8"
Depth: 4"
Height: 19 1/2"

Grill Dimensions:
Width: 15 15/16"
Height: 20 13/16"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:
  • Made in America

    Made in America

    This item was made in the United States of America.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

  • ETL, US

    ETL, US

    This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States.
