$897.28/Each

Earn up to $26.92 back (2,692 points)with a Webstaurant Rewards Visa® Credit Card

Usually Ships in 2-3 Weeks from manufacturer

Lead times vary based on manufacturer stock

Not eligible for expedited shipping

Product Overview

  • Provides an even, steady flow of warm air throughout the ductwork of your facility
  • Durable galvanized steel construction
  • 1/2" fiberglass insulation for efficient operation and reduced heat loss
  • Safety features regulate temperature to prevent overheating
  • 12" x 8" duct; 208V, 3 Phase
UPC Code:686334617086

TPI 8PD51283 Specs

Quantity
1/Each
Shipping Weight
22 lb.
Length
26 Inches
Width
18 1/2 Inches
Height
8 Inches
Phase
3 Phase
Voltage
280 Volts
Wattage
5 Kilowatts
Features
Made in America
Installation Type
Ceiling / Wall Mounted
Material
Galvanized Steel
Mounting Style
Duct
Plug Type
Hardwire
Power Type
Electric
Type
Duct Heaters

TPI 8PD51283 Details

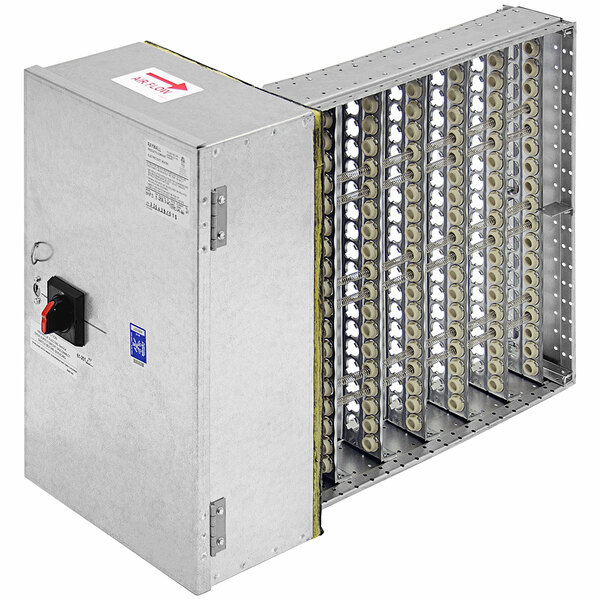

Provide heating in your industrial or commercial environment with this TPI PD Series 26" x 18 1/2" x 8" packaged duct heater 8PD51283! This heater mounts to the ductwork in your establishment to provide an even, steady flow of warm air. It is constructed of durable galvanized steel for long-lasting use, and it has a 12" x 8" duct for installation. It features 1/2" of fiberglass insulation for efficient heat transfer and reduced heat loss. Plus, the compartment includes a hinged lid to cover and protect the internal components.

The heater's automatic reset temperature limiting control regulates the electric flow, while the secondary temperature protective device prevents overheating. For additional safety, this unit also features a door interlock to shut off the motor when the door is opened, along with a pressure fan interlock to shut off the unit if it detects abnormal circumstances.

Providing 5 kW of power, this heater is an efficient choice for your facility. It is regulated with 1 step-down control transformer that reduces the voltage output to 24V. For optimal operation, this unit is also built with a definite purpose magnetic contactor to produce a strong magnetic field. This unit requires a 208V, 3 phase electrical connection for operation.

Overall Dimensions:
Length: 26"
Width: 18 1/2"
Height: 8"

Duct Dimensions:
Width: 12"
Height: 8"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:
  • Made in America

    Made in America

    This item was made in the United States of America.

  • ETL, US

    ETL, US

    This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.
