$7,649.00/Set

This product is no longer available. We've left this page up for reference only.

Other Available Colors:

  • Satin Black
  • Satin Silver

Usually Ships in 6-8 Weeks from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • 3-pane Low-E glass doors, argon fill
  • Energy efficient LED lighting with dimmer
  • Pre-wired and fully integrated energy controller
  • 30" x 27" shelving system included
  • Right-hinged configuration
  • Heated frame, door rails, and glass
  • Complies with DOE 2017 standards
UPC Code:400012218484

Specs

Quantity
3/Set
Shipping Weight
675 lb.
Width
30 Inches
Height
72 Inches
Cutout Width
92 5/8 Inches
Shelf Width
30 Inches
Shelf Depth
27 Inches
Cutout Height
73 3/4 Inches
Voltage
120 Volts
Color
Silver
Door Style
Swing
Door Type
Glass
Features
LED Lighting  Made in America  NSF Listed
Hinge Location
Right
Number of Doors
3 Doors
Number of Shelves
15 Shelves
Plug Type
Hardwire
Type
Doors

Customer questions about this product

Does this product include the walk-in cooler or freezer system?

No, this product does not include a cooler or freezer system; it only includes the merchandiser door(s) with shelving.

Is there anything I need to know to correctly wire the controller for this door?

A pig tail setup is provided to wire the controller to the power circuit. The manufacturer recommends 1 circuit for the lighting and 1 circuit for the heat. Consider consulting an electrician to aid in the installation.
Ask your own question!

Details

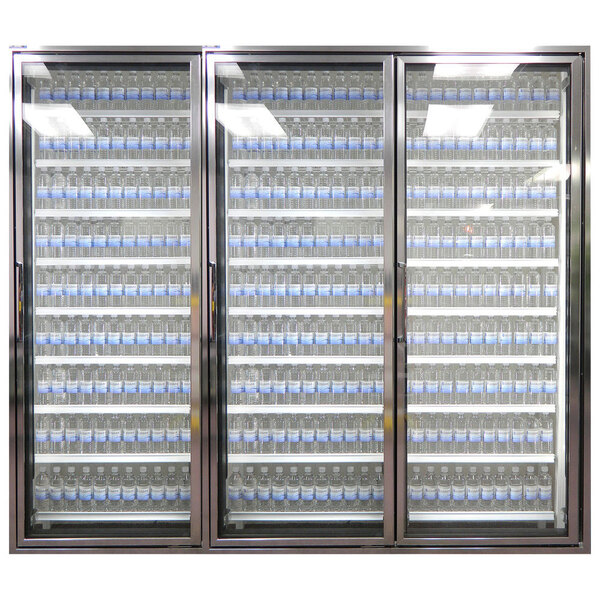

Great for markets, convenience stores, and grocery stores, this Styleline CL3072-LT 30" x 72" anodized bright silver freezer door set is designed to help your walk-in merchandiser area run at optimum efficiency, while its sleek look and LED lighting with dimmer highlight your refrigerated products and draw in hungry and thirsty customers! And with the included shelving system, you'll have everything you need to start selling all kinds of frozen entrees, appetizers, vegetables, and ice cream right away! This unit will also fit right in at bars, breweries, wineries, or bakeries.

Each door features tempered, three-pane Low-E glass doors with an argon fill, delivering maximum efficiency and break-resistance even in high-traffic locations where the doors are constantly opened and closed. It takes energy efficiency a step further, though, with an innovative ESC-Micro energy control. This system determines the dew point (point at which harmful condensation forms) by using separate sensors to detect ambient temperature, relative humidity, and the frame temperature. With this information, the controller can better determine how much heat is needed to prevent condensation and run the heaters more efficiently, keeping the glass, frame, and rails clear but also cutting down the overall run time on the heater circuit by up to 75% compared to similar doors. The shorter heater run time also helps lessen refrigeration cycles, further reducing your energy bill. The controller is also pre-wired and fully integrated for easier installation, unlike other models that need wired on-site.

The anodized bright silver finish on the door and the door frame offers a clean, neutral look that complements the interior of any store well, and it installs easily with a stainless steel trim kit. Each door also comes standard with its own shelving system featuring galvanized posts, (5) 27" deep epoxy-coated shelves, shelf brackets and levelers, and moldings for price tags.

You can also easily adjust the tension on the door's self-closing system to meet your exact needs, using only a 5/16" wrench and an 11/16" wrench. Each door features a right-hinged design. The controller requires a 120V electrical connection.

Door Dimensions:
Width: 30"
Height: 72"

Shelf Dimensions:
Width: 30"
Depth: 27"

Cutout Dimensions:
Width: 92 5/8"
Height: 73 3/4"

Attention CA Residents:

Attention CA Residents

WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • UL Listed, US

    UL Listed, US

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

Resources and Downloads

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

RESIDENTIAL USERS: Styleline assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.
