$6,709.00/SetDiscounted shipping with Plus
Earn up to $201.27 back (20,127 points)with a Webstaurant Rewards Visa® Credit Card
- 3-pane Low-E glass doors, argon fill
- Energy efficient LED lighting with dimmer
- Pre-wired and fully integrated energy controller
- 24" x 27" shelving system included
- Right-hinged configuration
- Heated frame, door rails, and glass
- Complies with DOE 2017 standards
- Shipping Weight
- 585 lb.
- 24 Inches
- 72 Inches
- Cutout Width
- 72 9/16 Inches
- Shelf Width
- 24 Inches
- Shelf Depth
- 27 Inches
- Cutout Height
- 72 3/4 Inches
- 120 Volts
- Door Style
- Door Type
- LED Lighting
Made in America
- Hinge Location
- Number of Doors
- 3 Doors
- Number of Shelves
- 15 Shelves
- Plug Type
Customer questions about this product
- Does this product include the walk-in cooler or freezer system?
- No, this product does not include a cooler or freezer system; it only includes the merchandiser door(s) with shelving.
- Is there anything I need to know to correctly wire the controller for this door?
- A pig tail setup is provided to wire the controller to the power circuit. The manufacturer recommends 1 circuit for the lighting and 1 circuit for the heat. Consider consulting an electrician to aid in the installation.

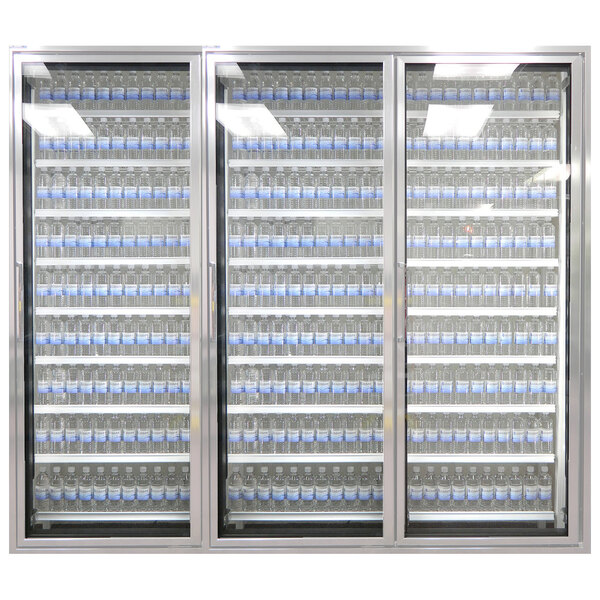

Great for markets, convenience stores, and grocery stores, this Styleline CL2472-LT 24" x 72" anodized satin silver freezer door set is designed to help your walk-in merchandiser area run at optimum efficiency, while its sleek look and LED lighting with dimmer highlight your refrigerated products and draw in hungry and thirsty customers! And with the included shelving system, you'll have everything you need to start selling all kinds of frozen entrees, appetizers, vegetables, and ice cream right away! This unit will also fit right in at bars, breweries, wineries, or bakeries.
Each door features tempered, three-pane Low-E glass doors with an argon fill, delivering maximum efficiency and break-resistance even in high-traffic locations where the doors are constantly opened and closed. It takes energy efficiency a step further, though, with an innovative ESC-Micro energy control. This system determines the dew point (point at which harmful condensation forms) by using separate sensors to detect ambient temperature, relative humidity, and the frame temperature. With this information, the controller can better determine how much heat is needed to prevent condensation and run the heaters more efficiently, keeping the glass, frame, and rails clear but also cutting down the overall run time on the heater circuit by up to 75% compared to similar doors. The shorter heater run time also helps lessen refrigeration cycles, further reducing your energy bill. The controller is also pre-wired and fully integrated for easier installation, unlike other models that need wired on-site.
The anodized satin silver finish on the door and the door frame offers a clean, neutral look that complements the interior of any store well, and it installs easily with a stainless steel trim kit. Each door also comes standard with its own shelving system featuring galvanized posts, (5) 27" deep epoxy-coated shelves, shelf brackets and levelers, and moldings for price tags.
You can also easily adjust the tension on the door's self-closing system to meet your exact needs, using only a 5/16" wrench and an 11/16" wrench. Each door features a right-hinged design. The controller requires a 120V electrical connection.
Width: 72 9/16"
Height: 73 3/4"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
Made in America
This item was made in the United States of America.
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
