This product is no longer available. We've left this page up for reference only.

Usually Ships in 6-8 Weeks from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • 3-pane Low-E glass doors, argon fill
  • Energy efficient LED lighting with dimmer
  • Pre-wired and fully integrated energy controller
  • 24" x 27" shelving system included
  • Right-hinged configuration
  • Heated frame, door rails, and glass
  • Complies with DOE 2017 standards
UPC Code:400012213281


Shipping Weight
195 lb.
24 Inches
72 Inches
Cutout Width
25 1/16 Inches
Shelf Width
24 Inches
Shelf Depth
27 Inches
Cutout Height
72 3/4 Inches
120 Volts
Door Style
Door Type
LED Lighting  Made in America  NSF Listed
Hinge Location
Number of Doors
1 Door
Number of Shelves
5 Shelves
Plug Type

Customer questions about this product

Does this product include the walk-in cooler or freezer system?

No, this product does not include a cooler or freezer system; it only includes the merchandiser door(s) with shelving.

Is there anything I need to know to correctly wire the controller for this door?

A pig tail setup is provided to wire the controller to the power circuit. The manufacturer recommends 1 circuit for the lighting and 1 circuit for the heat. Consider consulting an electrician to aid in the installation.

Ask your own question!

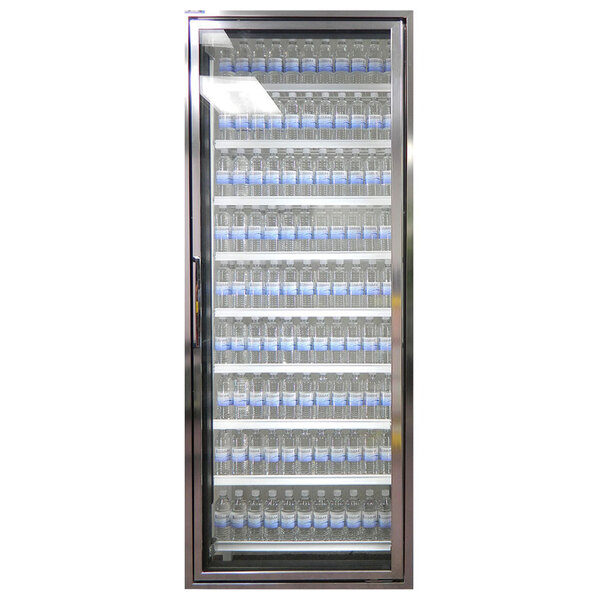

Great for markets, convenience stores, and grocery stores, this Styleline CL2472-LT 24" x 72" anodized bright silver freezer door is designed to help your walk-in merchandiser area run at optimum efficiency, while its sleek look and LED lighting with dimmer highlight your refrigerated products and draw in hungry and thirsty customers! And with the included shelving system, you'll have everything you need to start selling all kinds of frozen entrees, appetizers, vegetables, and ice cream right away! This unit will also fit right in at bars, breweries, wineries, or bakeries.

This door features tempered, three-pane Low-E glass doors with an argon fill, delivering maximum efficiency and break-resistance even in high-traffic locations where the doors are constantly opened and closed. It takes energy efficiency a step further, though, with an innovative ESC-Micro energy control. This system determines the dew point (point at which harmful condensation forms) by using separate sensors to detect ambient temperature, relative humidity, and the frame temperature. With this information, the controller can better determine how much heat is needed to prevent condensation and run the heaters more efficiently, keeping the glass, frame, and rails clear but also cutting down the overall run time on the heater circuit by up to 75% compared to similar doors. The shorter heater run time also helps lessen refrigeration cycles, further reducing your energy bill. The controller is also pre-wired and fully integrated for easier installation, unlike other models that need wired on-site.

The anodized bright silver finish on the door and the door frame offers a clean, neutral look that complements the interior of any store well, and it installs easily with a stainless steel trim kit. The door also comes standard with its own shelving system featuring galvanized posts, (5) 27" deep epoxy-coated shelves, shelf brackets and levelers, and moldings for price tags.

You can also easily adjust the tension on the door's self-closing system to meet your exact needs, using only a 5/16" wrench and an 11/16" wrench. This door features a right-hinged design. The controller requires a 120V electrical connection.

Door Dimensions:
Width: 24"
Height: 72"

Shelf Dimensions:
Width: 24"
Depth: 27"

Cutout Dimensions:
Width: 25 1/16"
Height: 73 3/4"

Attention CA Residents:

Attention CA Residents

WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • UL Listed, US

    UL Listed, US

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States.

  • Hardwired


    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

Resources and Downloads

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

RESIDENTIAL USERS: Styleline assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.
