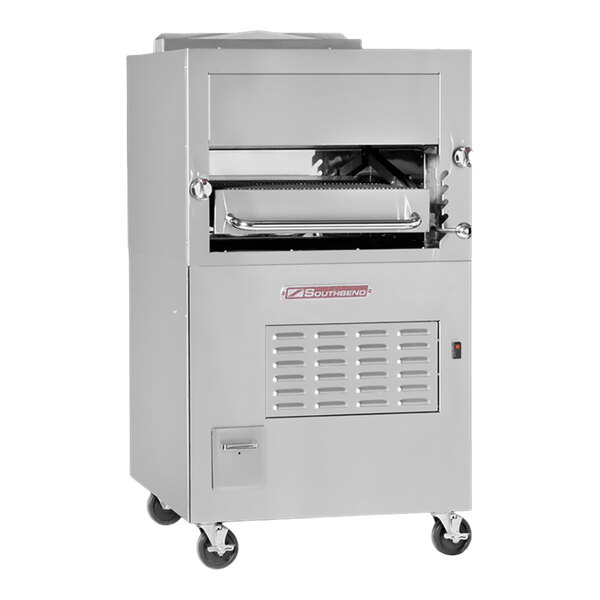

Southbend 170 34" Liquid Propane Single Deck Free-Standing Infrared Broiler - 104,000 BTU
Item number 996170lMFR number 170
Works With
- Apply, opens link in this tab
Earn up to $450.99 back (45,099 points)
(45,099 points) with a Webstaurant Rewards Visa® Credit Card
Usually Ships in 2 Weeks from manufacturer
Lead times vary based on manufacturer stock
Product Overview
- Free-standing, single deck broiler with 104,000 BTU infrared burners
- Integrated blower system reduces smoke and vapor buildup
- Features 90-second preheat time and no delays between cooking cycles
- Spacious 24 1/2" x 27 1/2” roll-out broiling area with cool front zone
- Durable stainless steel front, side, and back construction
UPC Code:400018167984
Works With
- Quantity
- 1/Each
- Shipping Weight
- 618 lb.
- Width
- 34 Inches
- Depth
- 37 Inches
- Height
- 63 1/2 Inches
- Power Cord Length
- 7 Feet
- Broiler Width
- 24 1/2 Inches
- Broiler Depth
- 27 1/2 Inches
- Amps
- 1 Amp
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 115 Volts
- Casters
- Without Casters
- Control Type
- Manual
- Features
- Made in America NSF Certified
- Gas Connection Size
- 3/4 Inches
- Heating Source
- Infrared
- Installation Type
- Freestanding
- Material
- Stainless Steel
- Number of Decks
- Single
- Plug Type
- NEMA 5-15P
- Power Type
- Liquid Propane
- Total BTU
- 104,000 BTU
- Type
- Broilers
Southbend 170 Details
Reduce broiling time by up to one-third and increase kitchen efficiency with this Southbend infrared broiler! This high-powered single deck broiler has a free-standing design and features 104,000 BTU infrared burners that deliver one of the hottest cooking surfaces on the market for rapid and even cooking results. The fully insulated burner boxes and lining help to retain heat and enhance energy efficiency, while the constant-burning pilot lighters offer heat control. With an integrated blower system that delivers clean, filtered air and reduces smoke and vapor buildup, you can maintain a clean cooking environment while producing perfectly broiled dishes every time. This broiler includes a 90-second preheat time without delays between cooking cycles, maximizing productivity even in high-demand environments.
The spacious 24 1/2" x 27 1/2" roll-out broiling area provides ample space for preparing multiple dishes simultaneously. Plus, it features a 3" cool front zone for holding space while broiling. Constructed with a heavy-duty stainless steel construction, this broiler is built to withstand the demands of a busy kitchen. With a five-position adjustable grid height for precise control, removable branding grids for attractive presentation, and adjustable 6" stainless steel legs for stability, this versatile broiler offers customizable options for your cooking needs. The washable metal mesh air filter ensures a clean airflow and a well-maintained unit. Built with speed, strength, and consistency in mind, this broiler is a valuable addition to any commercial kitchen seeking high performance every shift.
This unit requires a liquid propane gas connection and a 115V electrical connection for operation.
Overall Dimensions:
Width: 34"
Depth: 37"
Height: 63 1/2"
Broiling Area Dimensions:
Width: 24 1/2"
Depth: 27 1/2"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

3/4" Gas Connection
This unit comes with a 3/4" gas connection to be installed by a professional.

Made in America
This item was made in the United States of America.

CSA, US and Canada
This product is certified by CSA to applicable U.S. and Canadian standards.

NSF Certified
This item is certified by NSF to applicable standards.

5-15P
This unit comes with a NEMA 5-15P plug.
