Product Overview

  • Complete installation kit for an 8 valve Servend BIB beverage dispenser
  • Includes 2 wide x 4 high welded incline rack and 8 Flojet syrup pumps for bag in box syrups
  • Primary regulator, secondary regulator, and tubing included
  • Connects syrup pumps, water line, and regulator to properly measure liquid prior to dispensing
  • Plumbing hardware included for the regulator and dispenser cold plate inlet
UPC Code:400012971952

Servend 5014117 Specs

Quantity
1/Each
Shipping Weight
121 lb.
Width
27 1/4 Inches
Depth
17 1/2 Inches
Height
50 Inches
Type
Conversion Kits and Adapter Kits

Servend 5014117 Details

The Servend 5014117 8 valve bag in box installation kit contains the necessary components for installing a Servend 8 valve beverage dispenser. The kit is for use as part of a comprehensive bag in box system, allowing the dispenser to be placed in a public, front-of-house area while storing the in-use syrup boxes in the back-of-house for maintenance and space-efficiency. This particular kit accommodates up to 8 bag in box syrups (sold separately).

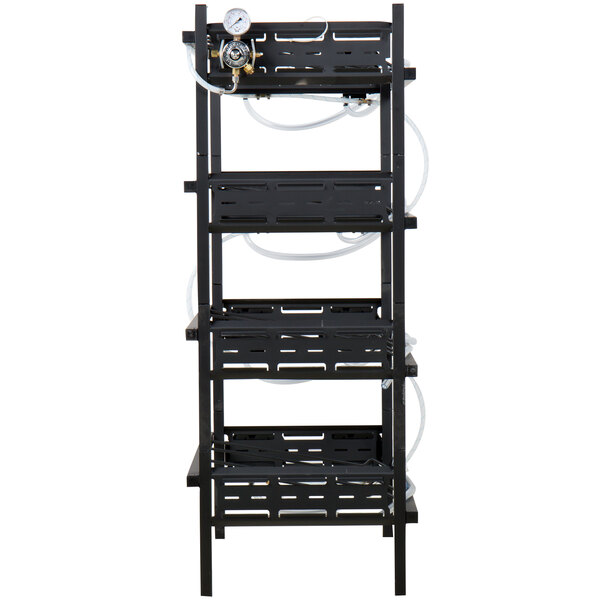

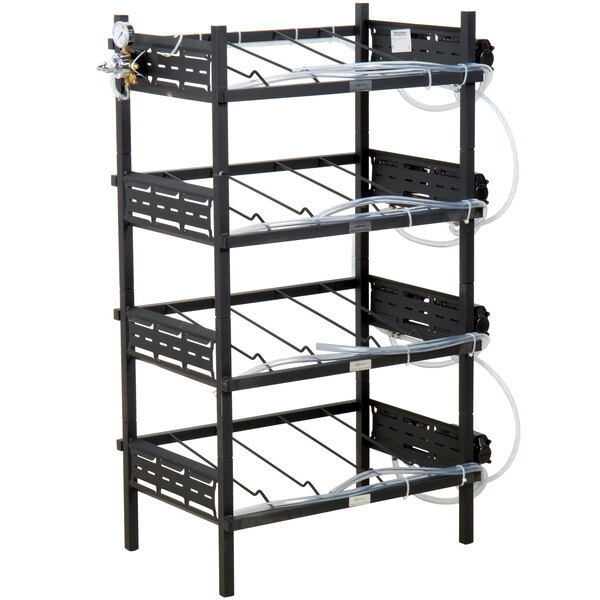

A welded rack features 4 tiers for the syrups, with 2 syrups fitting on each tier. To help simplify syrup box maintenance, the rack is even designed at an incline. 8 Flojet pumps are included in the kit to mount to the rack, as is a primary regulator and a secondary regulator. Both regulators work to dispense the proper amount of syrup at the proper pressure, which is then pushed through a long hose (sold separately) to the beverage dispenser for service. Other tubing comes standard, connecting the pumps to the regulators and syrup boxes. This kit includes the washers, barbed crosses, and other hardware necessary to assemble and connect the kit components.

Kit Includes:
- 2 x 4 welded incline rack

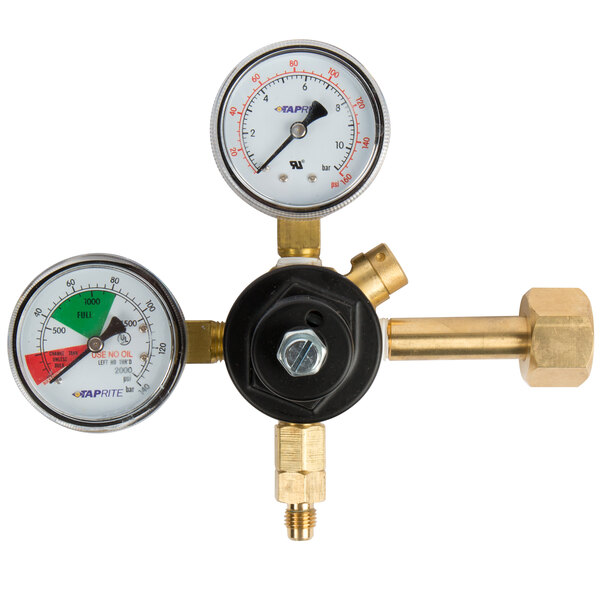

- Primary regulator
- Secondary regulator
- 8 Flojet syrup pumps
- 100' roll of 1/4" braided tubing
- 100' roll of 3/8" braided beverage tubing
- 25' roll of 3/8" BIB tubing
- Washers
- Nut and stem assemblies
- Barbed crosses
- Barbed tees
- Cable ties

Overall Dimensions:
Width: 27 1/4"
Depth: 17 1/2"
Height: 50"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

What tubing do I need for my BIB rack?

You will always need two more lines than the number of valves your unit has. Each tubing will have one line for each valve, and then two extra lines for water. For a 20 valve Servend unit, you will need two packs of 12 line tubing. For a 24 valve Servend unit, you will need two packs of 14 line tubing. Choose the length of the tubing based on how far the BIB rack is from the unit.
