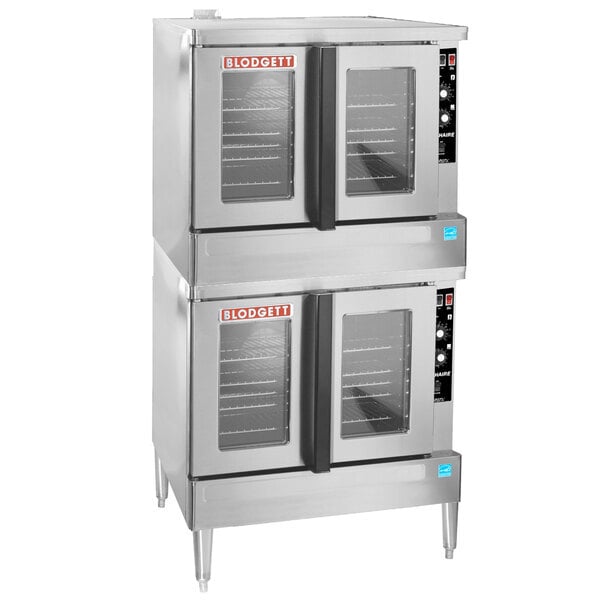

Scratch and Dent Blodgett ZEPHAIRE-100-E Double Deck Full Size Standard Depth Electric Convection Oven with Draft Diverter -220/240V, 3 Phase, 22kW

Item number  195zeph10e2eMFR number  ZEPH100E DOUBLE

You are viewing a product from WebstaurantStore Outlet.

$10,878.40/EA

Condition:Outlet

Usually Ships in 6-7 Business Days from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • Durable full angle iron frame with 6" adjustable stainless steel legs
  • 5 racks that can hold (5) 18" x 26" baking pans per deck in left to right position
  • Powder-coated door handle that operates 2 dependent doors per compartment
  • 14 gauge double-sided porcelainized baking compartment liner for easy clean up
  • Temperature range from 200 to 500 degrees Fahrenheit and solid state manual controls
  • 22kW in total; three tubular heaters and 1/2 hp blower motor per compartment; 220/240V, 3 Phase
  • 2 interior oven lamps
  • Note: only the oven holds the ETL certification

Works With

This is an outlet item

Any warranty information listed in the manual is void unless otherwise stated and we will not be able to accept any returns.

Return Policy

Please note that all items are sold as is, and all sales are final. We guarantee these items will work on arrival following installation in accordance with the product documentation. We recommend that you carefully read the product description, damage/use description, and other related product literature such as specification sheets and product manuals before placing your order.

Please inspect each item carefully when it arrives at your place of business. If you observe any damage not detailed in the description on this website that may have been caused during shipping, do not sign for the delivery and contact us ASAP.

Cart Policy

Because Outlet items sell quickly on a first-come, first-serve basis, simply placing the item in your shopping cart for checkout at a later time does not guarantee a "hold" on the item.

Warranty Policy

Note that Outlet products are sold without any warranty. If you have any questions or concerns about a product even after reading the description and product literature, please contact us.

Blodgett ZEPH100E DOUBLE Specs

Quantity
1/Each
Shipping Weight
960 lb.
Width
38 1/4 Inches
Depth
36 7/8 Inches
Height
70 5/8 Inches
Interior Width
29 Inches
Interior Depth
24 1/4 Inches
Interior Height
20 Inches
Amps
24 - 26 Amps
Hertz
60 Hz
Phase
3 Phase
Voltage
220/240 Volts
Wattage
22 Kilowatts
18" x 26" Pan Capacity
10 Pans
Control Type
Dial
Features
Draft Diverter Energy Star Qualified Made in America NSF Certified
Horsepower
1/2 hp
Installation Type
Freestanding
Maximum Temperature
500 Degrees F
Number of Chambers
2 Chambers
Number of Decks
Double
Number of Doors
4 Doors
Number of Racks
10 Racks
Oven Interior Style
Standard Depth
Plug Type
Hardwire
Power Type
Electric
Size
Full Size
Temperature Range
200 - 500 Degrees F
Ventilation Type
Draft Diverter
Wattage (per Cavity)
11 kW

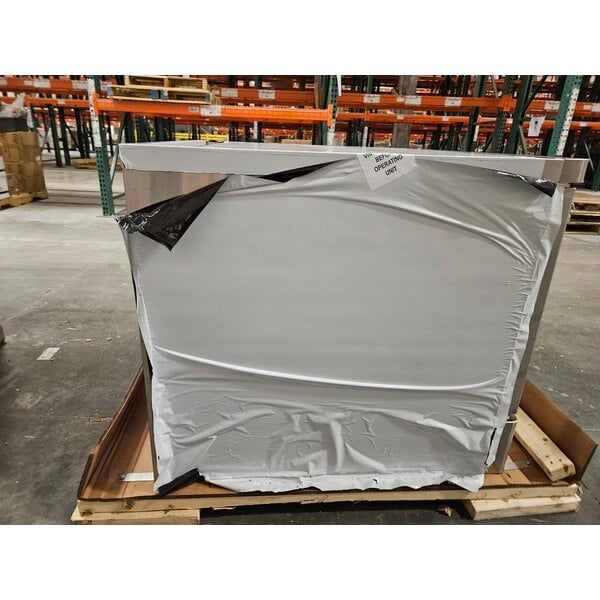

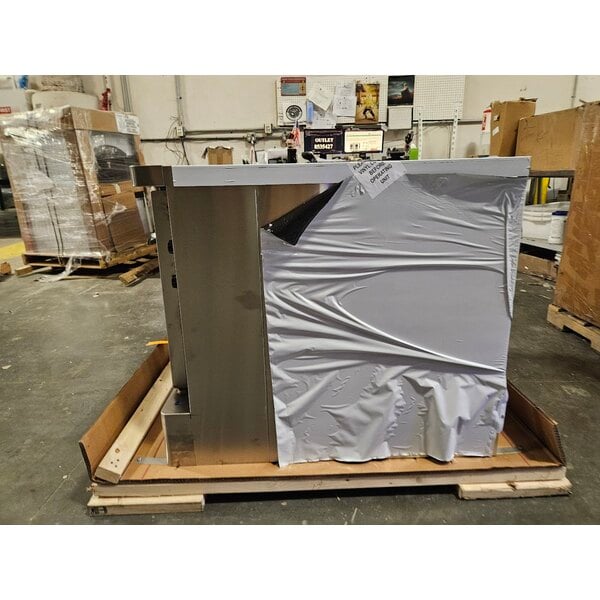

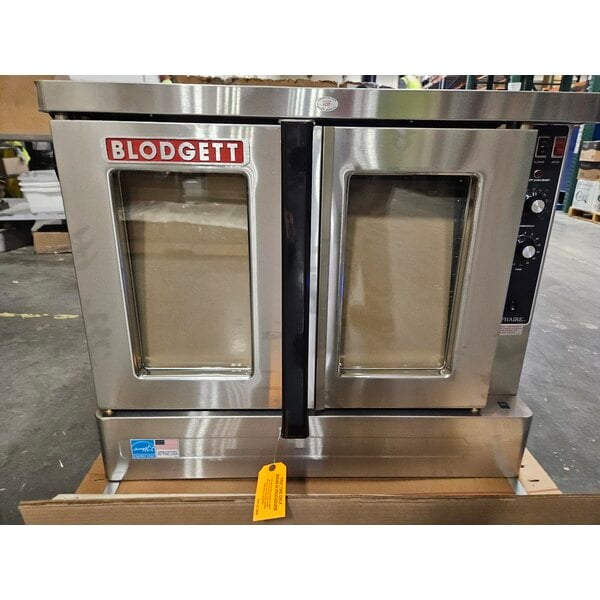

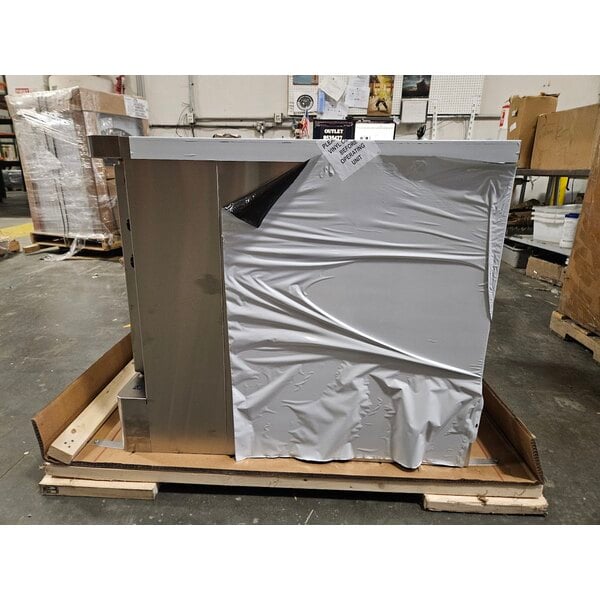

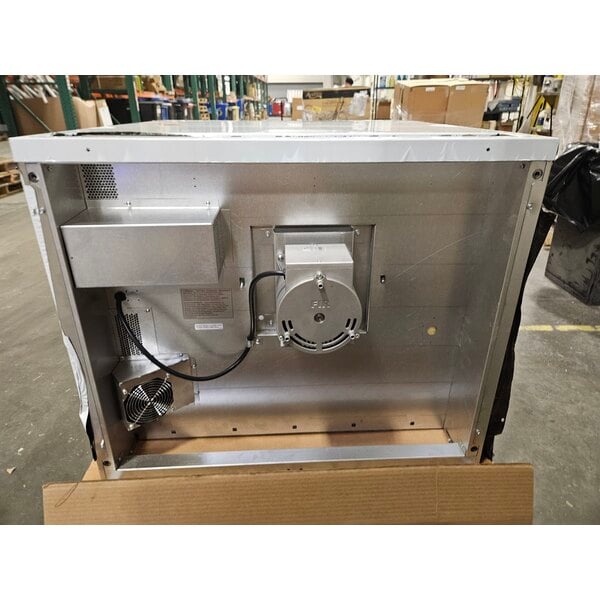

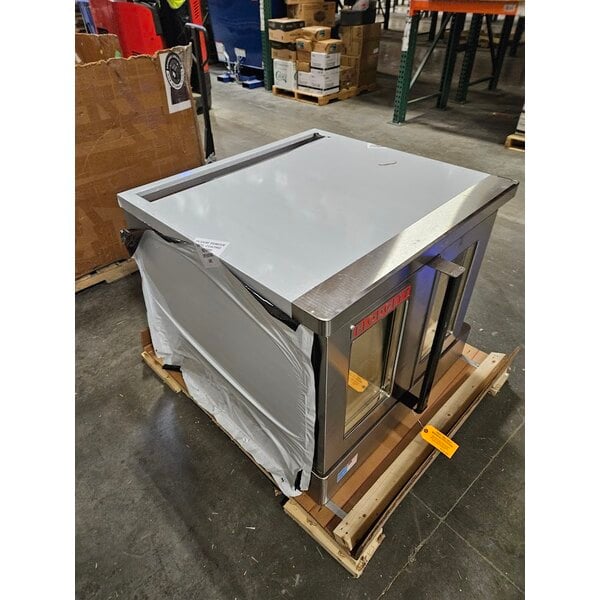

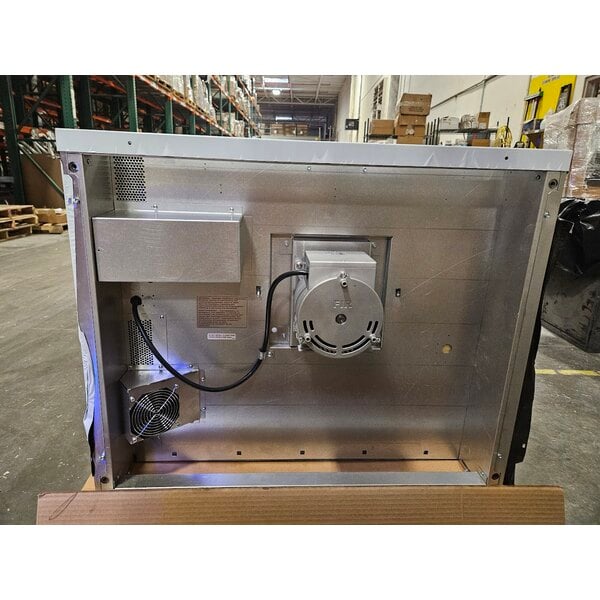

Scratch and Dent Blodgett ZEPH100E DOUBLE Details

  • New; never used
  • Out of original packaging
  • The units' legs are missing

Cooking your restaurant's most famous ribs, braised steaks, chicken, and bread will never be easier than with this Blodgett ZEPHAIRE-100-E double deck standard depth electric convection oven with draft diverter! Boasting a sturdy iron frame with a stainless steel top and 6" adjustable legs, this oven is sure to provide functionality to your kitchen while operating smoothly and productively. This double deck oven provides you with twice the production capacity in the same footprint as a single deck unit and features solid state manual controls with an electro-mechanical 60 minute timer for easy adjustment and monitoring of popular food items.

Thanks to each compartment's two speed fan and 1/2 hp blower motor, this convection oven efficiently recirculates heated air through its interior compartment, which reduces energy consumption and increases performance. This system offers a cost-effective way of cooking your product at a lower temperature for a shorter amount of time, allowing you to get food to the tables faster.

The powder-coated handles provide a comfortable grip when opening and closing the doors, which are tightly secured to the frame with a triple-mounted pressure lock design. The interior features five chrome-plated racks that can be configured into eleven rack positions with a minimum of 1 5/8" spacing to ensure that you are getting the most out of your oven space. This oven also has the capacity to hold up to (5) 18" x 26" standard full size baking pans per deck. A 14 gauge double-sided porcelainized baking compartment liner allows for easy clean up of your unit. As an added benefit, the interior is illuminated with 2 interior oven lamps, giving you the ability to check on your product without opening the doors and letting excess heat escape.

Each compartment has three tubular heaters that are controlled by a solid state thermostat with a temperature range from 200 to 500 degrees Fahrenheit, which gives you the ability to prepare a wide variety of products. For safety, the blower motor has an automated thermal overload protection mechanism and a control area cooling fan. It requires a 220/240V, 3 phase electrical connection.

Overall Dimensions:
Left to Right: 38 1/4"
Front to Back: 36 7/8"
Height: 70 5/8"

Interior Dimensions:
Left to Right: 29"
Front to Back: 24 1/4"
Height: 20"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:
  • NSF Certified

    NSF Certified

    This item is certified by NSF to applicable standards.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

  • Energy Star Qualified

    Energy Star Qualified

    This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.

  • ETL Listed

    ETL Listed

    This product has been certified by ETL, a division of the Intertek Group.
