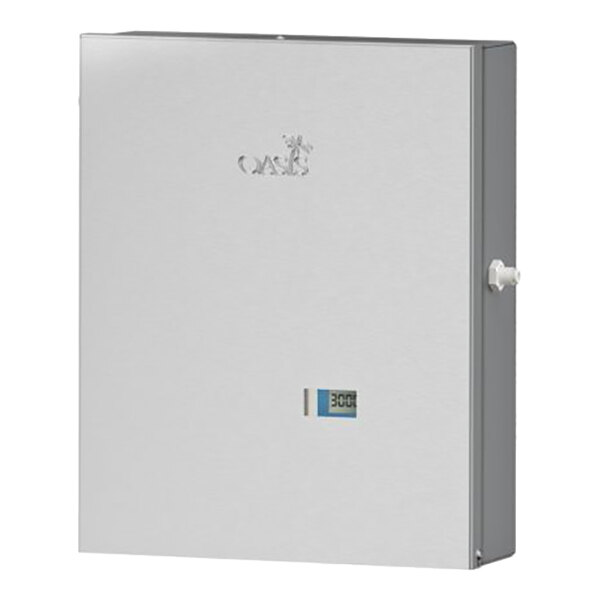

Oasis 041741A001 12 11/16" x 4 1/4" x 14 1/4" 1.50 GPM Stainless Steel Universal Vandal-Resistant Filter Box with VersaFilter III Water Filtration System and Filter Cartridge
Item number 81a41741a001MFR number 041741A001
- Apply, opens link in this tab
Earn up to $7.71 back (771 points)
(771 points) with a Webstaurant Rewards Visa® Credit Card
Quick Shipping
Usually ships in 1 business day
Product Overview
- Compact, vandal-resistant, 20 gauge stainless steel housing
- Compatible with select Oasis unfiltered water fountains and bottle fillers (sold separately)
- Converts unfiltered water system to filtered for improved water quality
- 1.50 GPM flow rate with 4,750-gallon maximum capacity and 12-month service life
- Includes 1 replacement filter and (2) AA batteries
UPC Code:004174100016
- Quantity
- 1/Each
- Shipping Weight
- 10.7 lb.
- Length
- 12 11/16 Inches
- Width
- 4 1/4 Inches
- Height
- 14 1/4 Inches
- Application
- Drinking Water
- Capacity
- 4,750 Gallons
- Color
- Silver
- Features
- ADA Compliant Vandal-Resistant
- Filter Type
- Sediment Taste
- Gauge
- 20 Gauge
- Inlet / Outlet Size
- 1/4 Inch
- Material
- Stainless Steel
- Micron Rating
- 0.5 Micron
- PSI
- 20 - 125 PSI
- Service Flow Rate
- 1.5 GPM
- Temperature Range
- 35 - 100 Degrees F
- Type
- Filtration Systems
- Water Inlet Size
- 1/4 Inches
OASIS 041741A001 Details
Improve the quality of your drinking water with this Oasis universal vandal-resistant filter box with a VersaFilter III water filtration system! Designed to provide a cost-effective solution to upgrading existing equipment, this unit is equipped with a VersaFilter III high-capacity, multi-stage water filtration system that easily converts a non-filtered water system to a filtered system to improve the taste and appearance of your drinking water. It's compatible with select Oasis unfiltered water fountains and bottle fillers with cold water supply lines as well as filter heads and replacement cartridges (all sold separately).
Ensure that your customers, employees, students, and guests have access to clean and refreshing drinking water by installing this convenient, efficient water filtration system in commercial, medical, hospitality, and fitness settings. This economical system is made with a high dirt-holding capacity that reduces the number of filter changes per year. The filter provides water that is virtually free of dirt, rust, and sediment down to approximately 0.5 micron to ensure that even the smallest of contaminants can't slip through. It also inhibits the build-up of scale and corrosion.
This compact water filtration system is made with a heavy-duty vandal-resistant, 20 gauge stainless steel housing with an embedded logo that deters tampering and withstands abuse for long-lasting, reliable performance in high-traffic areas like office buildings or schools, and public facilities like government buildings. The wall-mount filter box also features a small footprint that makes it ideal for universal indoor installation near water coolers and accessible water lines. The housing features a 12 3/8" input height, and the unit is made with an automatic shut-off valve that engages when the filter is inserted or removed.
This water filtration system features an LED filter status monitor with an integrated bottle counter and an audible alarm to indicate that a filter replacement or maintenance is needed. It has an operating temperature range from 35-100 degrees Fahrenheit for use in a wide range of settings, and it includes 1 replacement filter and (2) AA batteries. It's also designed with a 1.50 GPM flow rate, a pressure range of 20-125 PSI, a 4,750-gallon maximum capacity, and a 12-month service life.
Overall Dimensions:
Length: 12 11/16"
Width: 4 1/4"
Height: 14 1/4"

1/4" Water Connection
This unit comes with a 1/4" water connection for water supply.

ADA Compliant
This item meets criteria established by the Americans with Disabilities Act (ADA).
