Phase: 1 Phase

Special Order Shipping

An estimated delivery date will be provided after placing the order

Product Overview

  • Heavy gauge steel frame with gray powder coat
  • Optional mounting brackets to point fan in any direction
  • Recommended for 8' to 10' hoods (sold separately)
  • Permanently lubricated bearings
  • 3/4 hp motor delivers 2630 CFM and 1750 RPM
UPC Code:400016104868

NAKS 151B INLINE Specs

Quantity
1/Each
Shipping Weight
184 lb.
Depth
27 Inches
Diameter
27 3/4 Inches
Maximum Height
36 Inches
Phase
1 Phase
Voltage
115/230 Volts
Color
Silver
Cubic Feet per Minute
2,630 CFM
Drive Type
Belt Drive
Features
Made in America
Horsepower
3/4 HP
Material
Steel
Plug Type
Hardwire
RPM
1,750 RPM
Style
Inline
Type
Exhaust Fans

NAKS 151B INLINE Details

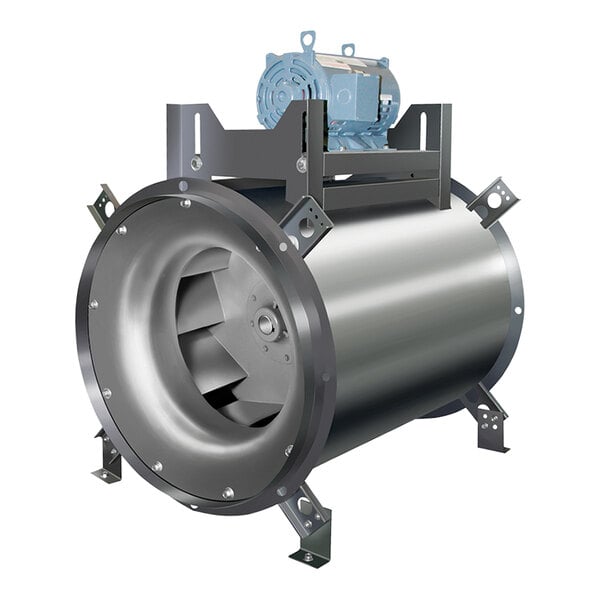

This NAKS 151-B-INLINE belt drive centrifugal inline exhaust fan works in conjunction with your restaurant hood (sold separately) to keep your kitchen free of hazardous grease buildup. Essential for use over fryers, griddles, charbroilers, and conveyor pizza ovens that produce grease during the cooking process, the exhaust fan pulls grease-laden air out of the hood and relocates it outside of the building. This prevents grease from accumulating where it could become a fire or sanitation hazard so that your kitchen stays clean and safe.

This unit is made with a heavy gauge steel frame, and it has a powder coated charcoal gray color. The fan can be oriented in any direction and offers mounting flanges for easy installation. With permanently lubricated motor bearings, this unit is designed for long-lasting operation. For convenient maintenance, the gasket door is oversized. It is also bolted and gasketed for increased stability. Integrated within the unit is a backward inclined non-overloading aluminum wheel. This exhaust fan is recommended for 8' to 10' hood sizes.

The fan boasts a 3/4 hp motor that delivers 2630 CFM and 1750 RPM. This unit requires a 115V/230V single phase electrical connection. Please be sure to review any relevant fire codes in your area before ordering a ventilation system and understand the requirements for any equipment going under your hood as this may change from area to area.

Overall Dimensions:
Diameter: 27 3/4"
Depth: 27"
Max Height: 36"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

How do I size a fan for my hood?

There are many factors that can affect which fan you need for your hood. Any recommended hood sizes given in a fan’s description are representative of a typical installation – factors like long duct runs, duct turns, and using high heat equipment like fryers and charbroilers can require a more powerful fan. Please consult your AHJ (Authority Having Jurisdiction) or installer if you need assistance sizing a hood fan.
Ask your own question!
  • Made in America

    Made in America

    This item was made in the United States of America.

  • UL Listed, US

    UL Listed, US

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.
