Product Overview

  • Stainless steel cabinets with expanded urethane foam insulation and anti-vibration pads
  • 1/2 hp propylene glycol-bathed, air-cooled compressor and 2 pumps
  • Sight glass and easy-to-read digital thermostat
  • Split-deck, remote design for compressor placement in a cool, ventilated location
  • Compatible with select Micro Matic remote and long-draw glycol-cooled systems (sold separately)
UPC Code:400017514079

Micro Matic MMPP4302-PKG-R Specs

Quantity
1/Each
Shipping Weight
175 lb.
Width
36 3/4 Inches
Depth
17 3/4 Inches
Height
23 1/4 Inches
Condenser Width
23 1/4 Inches
Condenser Depth
17 1/4 Inches
Condenser Height
18 1/2 Inches
Amps
21 Amps
Voltage
115 Volts
Capacity
11.5 gallons
Features
Air Cooled Digital Thermostat Made in America
Horsepower
1/2 hp
Number of Pumps
2 Pumps
Plug Type
Hardwire NEMA 5-15P
Power Type
Electric
Refrigerant Type
R-513A
Total BTU
3,600 BTU
Type
Beer Cooling Systems
Usage
Indoor Outdoor

Micro Matic MMPP4302-PKG-R Details

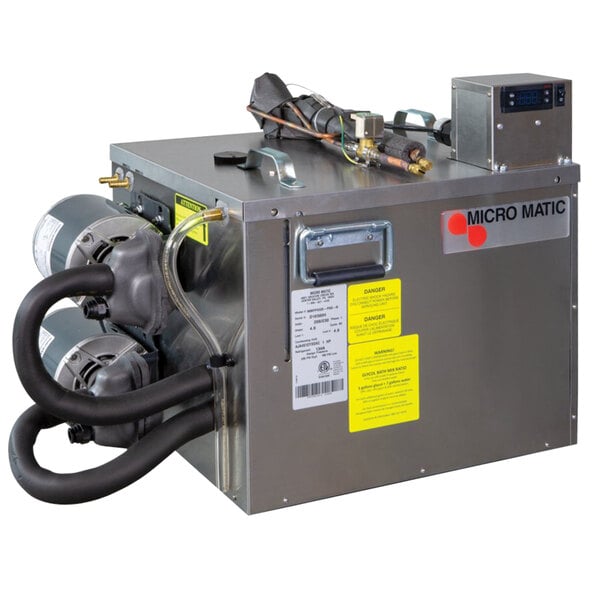

Dispense the craft beers your customers love with this Micro Matic Pro-Line 2-pump remote power pack! This propylene glycol-cooled power pack is designed to deliver cold draft beer over long distances. It features a split-deck, remote design for accessibility that allows the compressor to be placed in a cool, ventilated indoor or outdoor location while the unit with the bath, pumps, and motor is located in a separate housing near your walk-in cooler and kegs (sold separately). This item features rugged stainless steel cabinets with handles and covers and expanded urethane foam-insulated walls and floors to maintain glycol temperature and minimize condensation. It also features anti-vibration pads to reduce motor noise, a self-contained pump-down refrigeration system, 2 industry-standard Procon vertical rotary vane pumps with a 1/3 hp motor for glycol recirculation, and an assembled lift-off upper deck lid for easy maintenance and repairs. The bath with pumps and motor features a 1/2" O.D. push-in connector, 3/8" barbs, and an 18-140 refrigerant running pressure.

This power pack runs at 21 amps and features a 1/2 hp insulated, air-cooled compressor designed for less frequent cycling and long life. It sits in a large-capacity 11.5 gallon glycol bath with an adjustable, easy-to-read digital thermostat for accurate temperatures and an exterior sight glass to verify levels without removing the lid. This 3,700 BTU power pack is designed for use with Micro Matic remote and long-draw glycol-cooled systems (sold separately). A fan control switch and crankcase heater are also included. It runs on R-513a refrigerant and requires a 115V power system for operation. The condenser and bath must be within 50' of one another. The condenser must be hardwired while the bath features an 8' power cord with a plug.

Condenser Dimensions:
Width: 23 1/4"
Depth: 17 1/4"
Height: 18 1/2"

Bath Dimensions:
Width: 36 3/4"
Depth: 17 3/4"
Height: 23 1/4"
Capacity: 11.5 gallon

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:
  • Made in America

    Made in America

    This item was made in the United States of America.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.
