Name: Leer 30CS-R290 36" Outdoor Cold Wall Ice Merchandiser with Straight Front and Galvanized Steel Door
Brand: Leer
SKU: 53330CSHC
Price: 2629 USD
Availability: LimitedAvailability

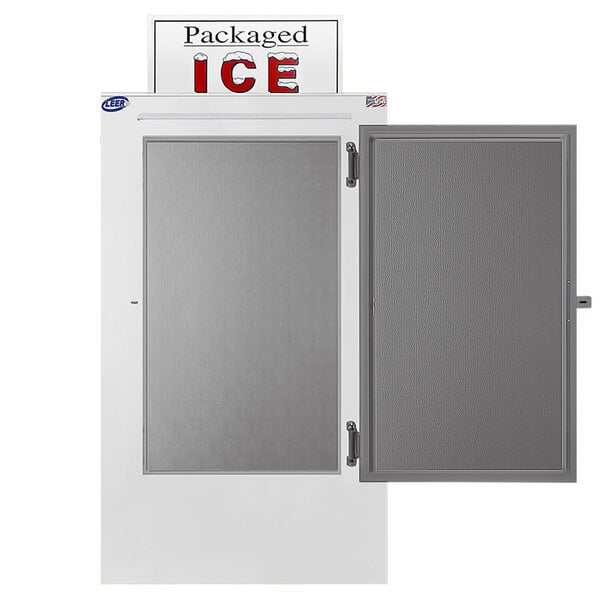

A Leer ice merchandiser with a galvanized steel door open.

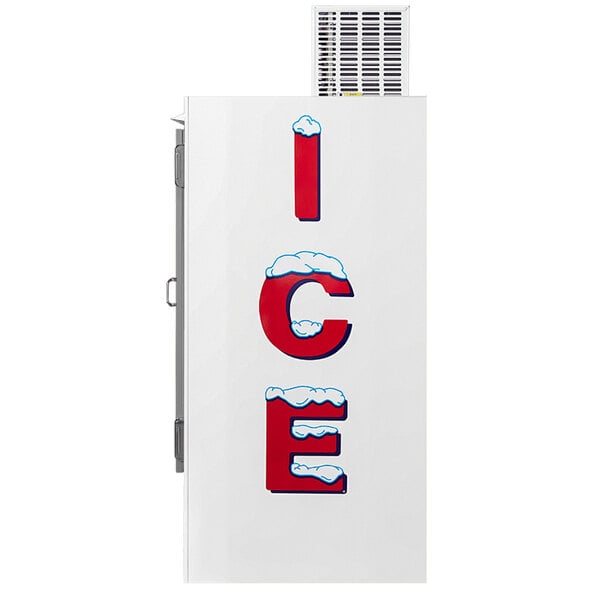

A white Leer ice merchandiser with red "ice" lettering.

0:00 / 0:00

Only

$2,629.00/Each

Discounted shipping with Plus

Earn up to $78.87 back (7,887 points)with a Webstaurant Rewards Visa® Credit Card

Usually Ships in 5-7 Business Days from manufacturer

Lead times vary based on manufacturer stock

Product Overview

Accommodates up to (65) 10 lb. bags of ice
Cold wall model uses eco-friendly R-290 refrigerant
Straight galvanized steel doors; high impact vinyl breaker strips
Water-tight lock-foam seam construction with acrylic polyurethane coating
Electronic controls ensure ease of use; 1/3 hp, 115V

UPC Code:400014113275

View all Leer Ice Merchandisers

A time-tested design and iconic look make the Leer 30CS-R290 36" outdoor ice merchandiser perfect for selling bagged ice.

This Leer 30CS-R290 outdoor cold wall ice merchandiser is an excellent choice for convenience stores, beer distributors, supermarkets, or any business that sells bagged ice! With plenty of smart design features and an iconic, easily recognizable design, this unit lets customers know that you’ve got plenty of the ice they need available for purchase! It accommodates up to (65) 10 lb. bags of ice to keep your business well-stocked for any need.

NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
Made in America
This item was made in the United States of America.
CE Listed
This product complies with the standards imposed by Conformance European (CE).
5-15P
This unit comes with a NEMA 5-15P plug.
UL Listed, US & Canada
This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.

Cold Wall System for Maximum Capacity

This merchandiser uses a cold wall refrigeration system with R290 refrigerant. Compared to an auto-defrost unit, it has a simpler design with fewer moving parts and a slightly larger capacity. However, a defrost cycle must be run manually to remove excess ice buildup, and typically these units will recover slower than an auto-defrost unit if the doors are opened frequently. Cold wall units also don’t drip condensate constantly like an auto-defrost unit, only when the defrost cycle is run.

Outdoor Installation

This unit is designed to be installed outdoors and features a solid door design and a rain shield that work together to protect your ice from the elements.

Max-Life Gasket

The gasket is made from durable Santoprene, which provides superior durability over other gasket materials. This gives you better temperature retention for longer.

Dependable, Iconic Design

The steel cabinet uses water-tight, offset seams for optimal strength and a 2-part acrylic polyurethane coating for better resistance to corrosion, adhesion, and humidity. It also provides it with a smooth, mid-range gloss finish. And since it comes with Leer’s iconic snow-capped “ICE” signage, you can be sure that customers will take notice!

Superior Temperature Control

2 1/2” thick insulation on the ceiling and walls and 3” thick insulation on the floor provide maximum temperature retention. This helps to keep your ice frozen and ready for purchase, while also reducing the strain on the refrigeration system for more efficient operation. And thanks to its electronic control system, you can easily monitor the unit and make changes as necessary.

Customer Q&AAsk a Question

I haven’t heard of R-290, R-600a, R-513a, or R-448A refrigerant before. What is it?

R-290 (also known as high purity propane or CARE 40) and R-600a (also known as refrigerant grade Isobutane or CARE 10) are hydrocarbon refrigerants. R513a (also known as Opteon XP10) and R-448A (also known as Solstice N40) are HFO (hydrofluoroolefin) refrigerants. They are being used by some manufacturers in response to the EPA’s Significant New Alternatives Policy (SNAP) Program.

What is the difference between cold wall refrigeration and auto defrost refrigeration?

The biggest difference between cold wall and auto defrost refrigeration is the amount of condensation created during the cooling process.

In a cold wall refrigeration system, or coil cooled system, a series of copper wires runs through the walls of the merchandiser. These copper wires radiate cold air into the cabinet in order to keep the ice cold. This causes condensation to occur on the walls of cold wall merchandisers, meaning they will need to be defrosted and cleaned regularly.

In an auto defrost refrigeration system, or forced air system, cold air is pumped into the cabinet using fans, which keeps your ice cold. This type of refrigeration system cuts down on the amount of condensation that forms inside the merchandiser, and the condensation that does form in the unit is removed by an automatic condensation evaporator system.

Will this ice merchandiser / ice transport hold ice cream?

No. Ice cream must be stored at -20 degrees Fahrenheit or below. This unit has a temperature range of 16 degrees (+/- 4 degrees).

Overall Dimensions:

Width:: 36 Inches
Depth:: 30 Inches
Height:: 76 1/2 Inches
