$634.20/Each
Contact us for details
Ships free with PlusStart a Live Chat(Mon - Thur: 5am - 12am EST
Fri: 5am - 8pm EST
Sat & Sun: 9am - 4pm EST)
Earn up to $19.03 back (1,903 points)with a Webstaurant Rewards Visa® Credit Card
Product Overview
- Forces CO2 into water to create carbonation for sodas
- No need to turn off CO2 or water to service; maintain electronics without depressurizing the tank
- Exclusive two-piece probe design reduces service time, improves diagnostics, and lowers costs.
- 180 fl. oz. tank capacity; stainless steel tank
- Injection molded plastic base
- 180 psi pressure relief valve for safety
- Includes a backflow preventer to limit contamination; 2 soda outlets
- 115V, 1/3 hp, 1725 RPM motor
Other Products from this Line
McCann's E400397 Specs | |
---|---|
Quantity | 1/Each |
Shipping Weight | 25.6 lb. |
Features | Made in America NSF Listed |
Plug Type | NEMA 5-15P |
Type | Motor, Fan, and Pump Parts |
McCann's E400397 Details

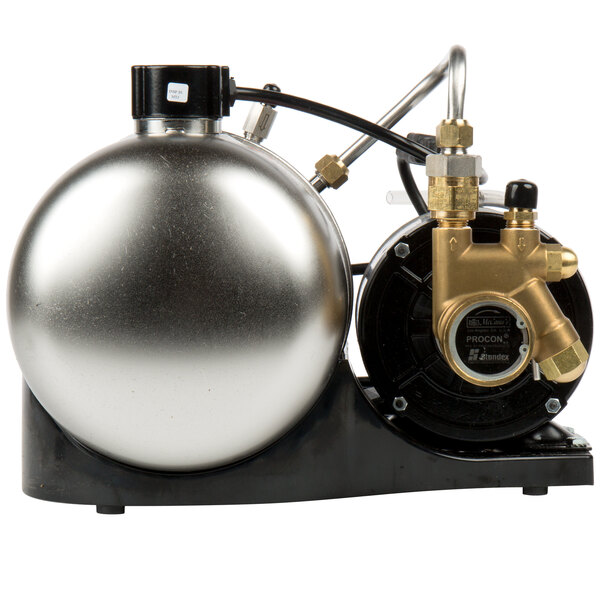

Complement your soda machine with this McCann's E400397 Big Mac Fastflow carbonator. Designed to provide the fizz for your carbonated drinks, this carbonator takes plain water and CO2 and combines them to create carbonated water. It uses a durable rotary-vane style brass water pump that delivers water in an atomized form to the carbonator tank. It includes an internal 100 micron strainer and a 180 psi pressure relief valve. Plus, it is made of stainless steel so it is easy to clean and durable.
For ease of serviceability, this model has an exclusive two-piece probe design that helps reduce service times, improve diagnostics, and lower costs. With this probe, there's no need to turn of the CO2 or the water in order to service the unit. Also, the electronics package is fully-encapsulated so a service agent can easily remove it for testing and service without the need to depressurize the tank. The electronics even resist damage from spikes in amperage for greater reliability.

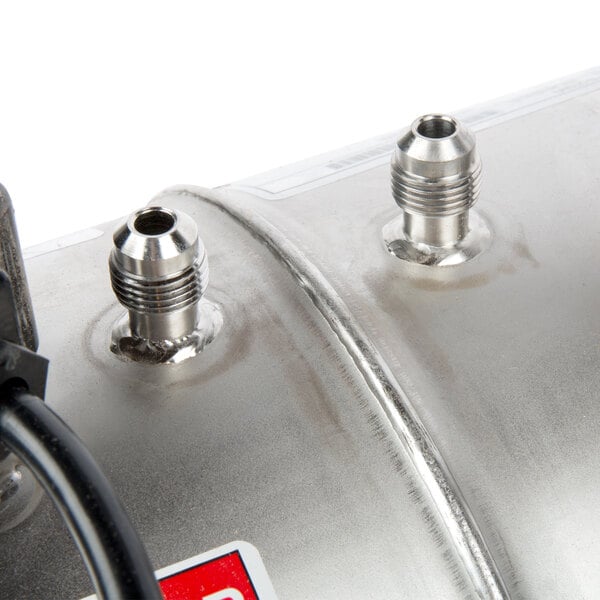

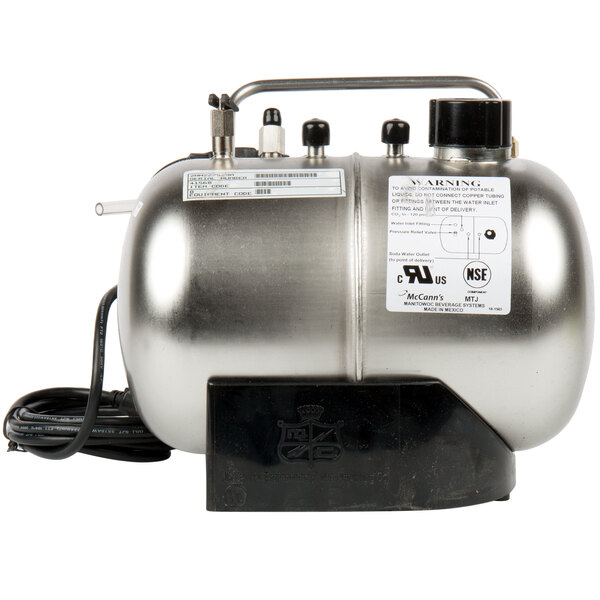

The tank is made of durable stainless steel and has a capacity of 180 fl. oz. The liquid-level float assembly and heat sink probe cap help extend the product life and prevent issues down the road. This carbonator unit sits on an injection molded plastic base that helps to cushion the unit and reduce noise from vibration. It even comes equipped with a backflow prevention device to reduce the chances of contaminated water flowing back into the clean water supply. This model has a 1/3 hp, 1725 RPM motor and requires a 115V electrical connection for operation.
Overall Dimensions:
Length: 14"
Width: 13"
Height: 10 1/2"
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Made in America
This item was made in the United States of America.
NSF Listed
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
3/8" Water Connection
This unit comes with a 3/8" water connection.
5-15P
This unit comes with a NEMA 5-15P plug.
