Finish: Stainless Steel
Product Overview
- Holds up to (11) 3 gallon ice cream tubs
- Durable stainless steel top
- Multiple flip top design allows more than one staff member to access ice cream
- Perfect for ice cream shops, diners, and restaurants
- R-290 refrigerant; 1/3 hp compressor
Works With"Works With" items are guaranteed to work with the item you are viewing, such as lids that will fit a cup or casters that will fit a piece of equipment. If an item is not listed in this section, we do not guarantee that it will work with the product you are viewing and do not recommend that you purchase them for use together.
- Quantity
- 1/Each
- Shipping Weight
- 275 lb.
- Width
- 54 Inches
- Depth
- 30 1/8 Inches
- Height
- 34 1/8 Inches
- Amps
- 7.3 Amps
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 115 Volts
- Cabinet Type
- Flip Top
- Capacity
- 17.3 cu. ft.
- Compressor Location
- Bottom Mounted
- Container Display Capacity
- 11 Cans
- Container Storage Capacity
- 8 Cans
- Door Style
- Swing
- Door Type
- Solid
- Features
- Made in America NSF Listed
- Front Style
- No Sneeze Guard
- Horsepower
- 1/3 HP
- Number of Doors
- 4 Doors
- Plug Type
- NEMA 5-15P
- Refrigerant Type
- R-290
- Temperature Range
- 10 Degrees F
- Total Container Capacity
- 19 Cans
- Type
- Dipping Cabinets
Master-Bilt DC-8DSE Details

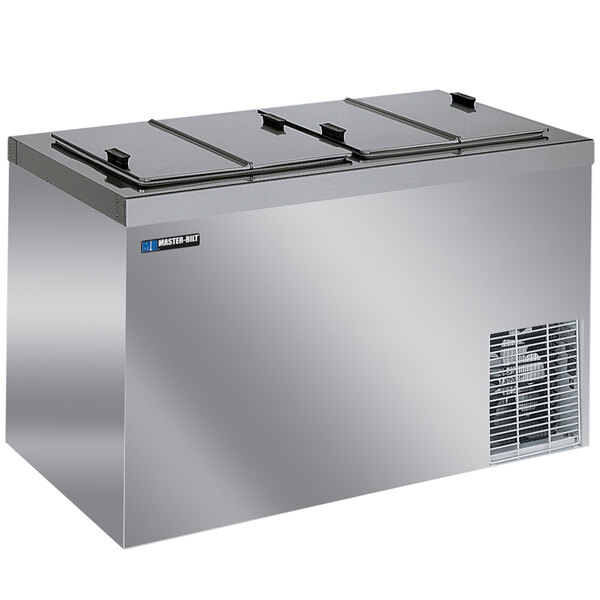

Scoop up some soothing summertime sweetness with this 17.3 cu. ft. Master-Bilt DC-8DSE stainless steel finish ice cream dipping cabinet. The Master-Bilt DC-8DSE flip top dipping cabinet can hold 11 standard 3 gallon ice cream canisters on top, with room underneath for up to eight more.
Its refrigeration system with cold wall evaporator utilizes R-290 refrigerant and a powerful 1/3 hp compressor to maintain temperatures between - 10 and 10 degrees Fahrenheit. A seamless, stainless steel top and 2 1/4" foamed-in-place "zero ODP" urethane insulation also help keep your ice cream cold and ready to serve.
The dipping cabinet's multiple flip top stainless steel lids provide easy access to each flavor, and allow several staff members to scoop at the same time for fast service during peak hours. This flip top dipping cabinet requires a 115V electrical connection.
Overall Dimensions:
Width:54"
Depth: 30 1/8"
Height: 34 1/8"
Capacity: 17.3 cu. ft.
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Customer questions about this product
Does this item come with tub holders?
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
Made in America
This item was made in the United States of America.
5-15P
This unit comes with a NEMA 5-15P plug.
UL Listed, US & Canada
This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.
