$2,274.00/Each

Ships free with Plus

Earn up to $68.22 back (6,822 points)with a Webstaurant Rewards Visa® Credit Card

Usually Ships in 8-10 Weeks from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • For use with select Indigo series QuietQube remote condenser ice machines
  • To be installed indoors or outdoors, away from ice machine
  • Remote design lowers ambient temperature near your ice machine
  • Cool vapor defrost (CVD) technology is quieter than traditional hot gas evaporators
  • Maximum line length: 100'
  • Maximum vertical rise: 35' above ice machine
  • Maximum vertical drop: 15' below ice machine
  • 208-230V, 1 Phase
UPC Code:400010995202

Manitowoc Ice CVDT1200-261 Specs

Quantity
1/Each
Shipping Weight
243 lb.
Width
34 Inches
Depth
24 1/4 Inches
Height
25 3/4 Inches
Amps
14.8 Amps
Hertz
60 Hertz
Phase
1 Phase
Voltage
208 - 230 Volts
Condenser Type
Remote
Features
NSF Listed
Plug Type
Hardwire
Type
Remote Condensers

Customer questions about this product

How do I ensure my new Manitowoc product’s warranty is activated?

To ensure your warranty is activated with the manufacturer, you can register your product online at Manitowoc’s website under the services tab. Go to http://manitowocice.com/Service/Warranty#Warranty-Registration

Will this ice machine meet my business’s ice demand?

Every business type has unique demands for ice. If you have any questions about how much ice you’ll need please reference our Types of Ice Machines buying guide.

Ask your own question!

Manitowoc Ice CVDT1200-261 Details

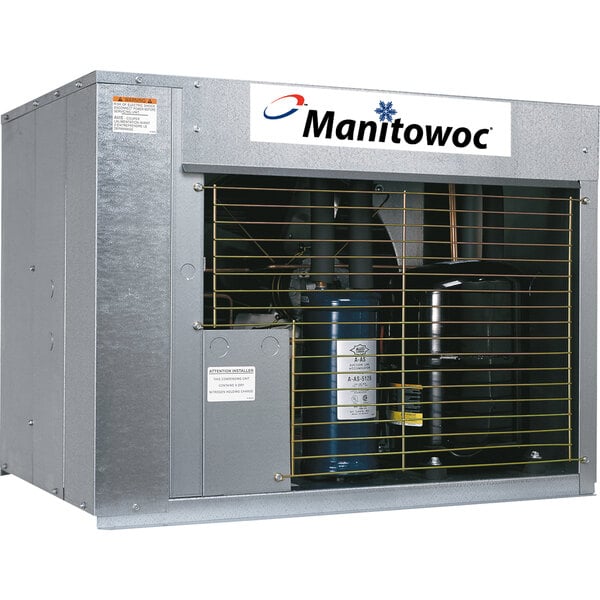

When used in conjunction with i-1176C or IB-1090 Indigo series QuietQube ice machines, this Manitowoc CVDT1200-261 remote ice machine condenser provides quieter operation than comparable remote condenser units! The secret is the unit's cool vapor defrost (CVD) technology, which is quieter and more efficient than the hot gas evaporator systems utilized by traditional remote condenser machines. Just connect your ice machine via a remote tubing line kit (sold separately), and this remote condenser will effectively dissipate heat at a convenient location, away from the ice machine. In addition to a quieter operation, this remote condenser will help lower the ambient temperature around your ice machine, which drastically improves efficiency while providing a more comfortable environment for your staff.

- Maximum line length: 100'

- Maximum vertical rise: 35' above machine

- Maximum vertical drop: 15' below machine

- Operates between -20-130 degrees Fahrenheit

Overall Dimensions:
Left to Right: 34"
Front to Back: 24 1/4"
Height: 25 3/4"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Attention CA Residents

WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

  • UL Listed, US & Canada

    UL Listed, US & Canada

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.

  • ARI / AHRI

    ARI / AHRI

    This certification is awarded by the Air-Conditioning, Heating, and Refrigeration Institute to denote products of exceptional performance.

  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • CE Listed

    CE Listed

    This product complies with the standards imposed by Conformance European (CE).

Need Parts & Accessories?

Show replacement parts and accessories for Manitowoc Ice CVDT1200-261 today!

Resources and Downloads for
Manitowoc Ice CVDT1200-261

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications. PLEASE NOTE: Parts carry a 90 day limited warranty.

Equivalent Items

Manitowoc Ice ICVD1195-261 (Formerly)
