Product Overview

  • Durable polyethylene construction won't rust or corrode
  • Type "M" access covers make it ideal for pedestrian and light traffic use
  • Features 4" no-hub connections
  • Boasts flow rate of 150 GPM and grease capacity of 1,097 lb.
  • Includes a grease capacity alarm and a high water sensor
UPC Code:400015202770

Endura 40150A04M Specs

Shipping Weight
283 lb.
78 Inches
32 Inches
48 1/2 Inches
1,097 lb.
NSF Listed

Threaded Connections
Flow Rate
150 GPM
Inlet and Outlet Size
4 Inches

Grease Traps

Endura 40150A04M Details

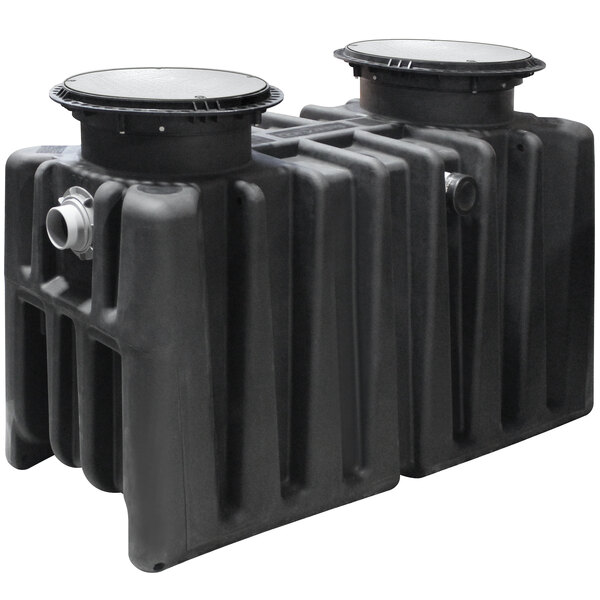

The Endura XL 40150A04M hydromechanical grease interceptor prevents greasy substances from entering plumbing systems, septic fields, and wastewater treatment facilities where they cannot be processed properly and could harm the environment. This grease interceptor is different from traditional metal grease traps since it is made of a durable, seamless polyethylene material that will not rust, corrode, or leak. Despite the lighter material, it still boasts a flow rate of 150 GPM and a grease capacity of 1,097 lb., making it a viable alternative to traditional large capacity interceptors.

This grease interceptor has "M" covers with a proof load minimum of 4,000 lb., making it ideal for light traffic and pedestrian use. The "M" covers are lighter than the standard "S" covers, and they mount flush with the surrounding frame. Each interceptor also features the Endura XL Grease Interceptor and Alarm, which functions as a grease capacity alarm and a high water sensor. This system monitors the status of the unit and serves as a safeguard for your facility, signaling blockages and impending back-ups.

This interceptor is compatible with a remote pump, and it's equipped with 4" inlet and outlets for no-hub connections. There are three pre-plumbed outlet options, for straight through or side outlet drainage connections, so you can choose the most convenient outlet for you. Simply cover the other two outlets with the caps provided. Installation must be performed by a licensed professional.

Overall Dimensions:
Length: 78"
Width: 32"
Height: 48 1/2"
Flow Rate: 150 GPM
Average Efficiency: 96.3%
Threaded Connection Size: 4"
Grease Capacity: 1097 lb.

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

  • NSF Listed

    NSF Listed

    This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.

  • IAPMO R&T UPC Certified - USA

    IAPMO R&T UPC Certified - USA

    This product is certified by the International Association of Plumbing and Mechanical Officials (IAPMO) to meet Uniform Plumbing Code (UPC) standards for the USA

  • IAPMO R&T UPC Certified - USA & Canada

    IAPMO R&T UPC Certified - USA & Canada

    This product is certified by the International Association of Plumbing and Mechanical Officials (IAPMO) to meet Uniform Plumbing Code (UPC) standards for the USA and Canada.
