$7,284.00/Each
This product is no longer available. We've left this page up for reference only.
Product Overview
- Produces up to 994 lb. of full cube ice per day
- Dishwasher-safe water distribution tube and plastic foodzone parts make cleaning easy
- 1-touch sanitizing and descaling, indicator LEDs notify you when cleaning is required
- Agion antimicrobial protection
- 208-230V, 60 Hz, 3 Phase
- Quantity
- 1/Each
- Shipping Weight
- 225 lb.
- Width
- 30 1/4 Inches
- Depth
- 24 1/4 Inches
- Height
- 27 Inches
- Amps
- 8.9 Amps
- Hertz
- 60 Hz
- Phase
- 3 Phase
- Voltage
- 208 - 230 Volts
- 24 Hour Ice Yield
- 994 Pounds
- Condenser Type
- Water Cooled
- Features
- BPA Free Made in America NSF Listed
- Ice Type
- Full Size Cubes
- Plug Type
- Hardwire
- Power Usage
- 4.1 kWh per 100 lbs.
- Refrigerant Type
- R-404A
- Type
- Ice Machines
- Water Inlet Size
- 3/8 Inches
- Water Usage
- 19 Gallons Per 100 lbs.

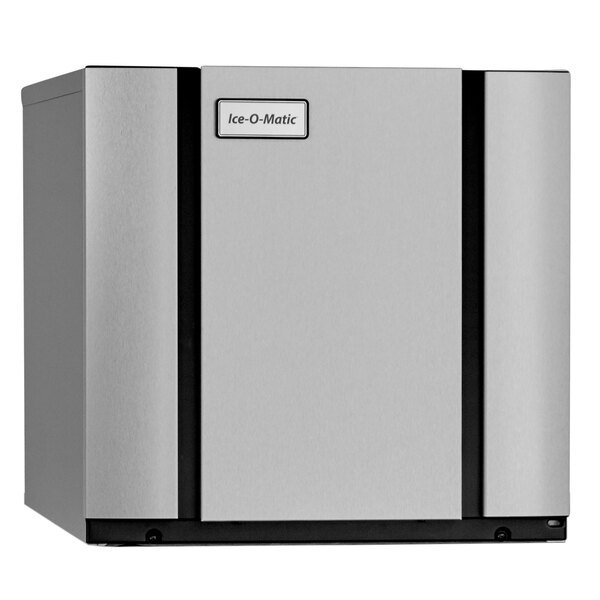

Ice-O-Matic CIM1137FW Details
Choose this Ice-O-Matic CIM1137FW 30" water cooled ice machine for dependable ice production and a host of smart design features that will help your business run at maximum efficiency! This ice machine is capable of producing up to 994 lb. of full cube (7/8" x 7/8" x 7/8") ice per day and it exceeds energy regulations for ice machines, providing superior efficiency that will save you on your utility bill. All ice machines require frequent maintenance and cleaning to keep them running properly, so it's important to choose a model that will make this process as easy and as fast as possible. Ice-O-Matic's Elevation series accomplishes this by making the foodzone components out of recyclable, dishwasher-safe, and BPA-free plastic. Simply snap each piece out, run them through a dishwasher cycle, and then snap them back into place to get back to producing ice! The entire disassembly process takes mere minutes, which makes it easier for your employees to do, and also makes it more likely that it will be done when the machine requires it. Additionally, key components utilize Agion antimicrobial protection to help inhibit harmful pathogens from growing in the first place.
The Universal Smart Harness control board system allows easy access, and provides digital diagnostics, universal components and a common configuration that together make it easy and intuitive to set up your new machine, and to find and fix a problem should one arise. This translates to shorter installation times, easier service calls, and more money saved on your bottom line! It uses R404A refrigerant and requires a 208-230V, 3 phase electrical connection.
Overall Dimensions:
Width: 30 1/4"
Depth: 24 1/4"
Height: 27"
Customer questions about this product
How can I figure out the total daily water consumption of my water cooled ice maker?
(Potable Water + Condensor Water) x (lb. of ice per day / 100)
Example: (12 gal + 124 gal) x (400 lb / 100) = 544 gallons per 24 hours
How do I match up ice machines, bins, and dispensers?
Additionally, adapter and deflector kits can be used to match up ice machines with other types of bins / dispensers. When available, literature from the manufacturer regarding bin / dispenser / machine compatibility and adapter / deflector kits is also included on our product pages and is kept as up-to-date as possible. If you have any questions, our Customer Solutions team is also happy to help!
Is this Ice-O-Matic product returnable?
My ice machine has been shut down, or not in use since the COVID-19 shutdowns, how should I restart it?
Why does my water cooled ice machine use more water than is advertised?
Why should I buy a water filter along with this product?
Will this ice machine meet my business’s ice demand?
Made in America
This item was made in the United States of America.
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
UL Listed, US & Canada
This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.
CE Listed
This product complies with the standards imposed by Conformance European (CE).
BPA Free
This item is free of the chemical Bisphenol A (BPA).
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
3/8" Water Connection
This unit comes with a 3/8" water connection for water supply.
Need Parts & Accessories?
Show replacement parts and accessories for Ice-O-Matic CIM1137FW today!
Resources and Downloads for
Ice-O-Matic CIM1137FW
A PDF viewer is required to view this product's information. Download Adobe Acrobat software
