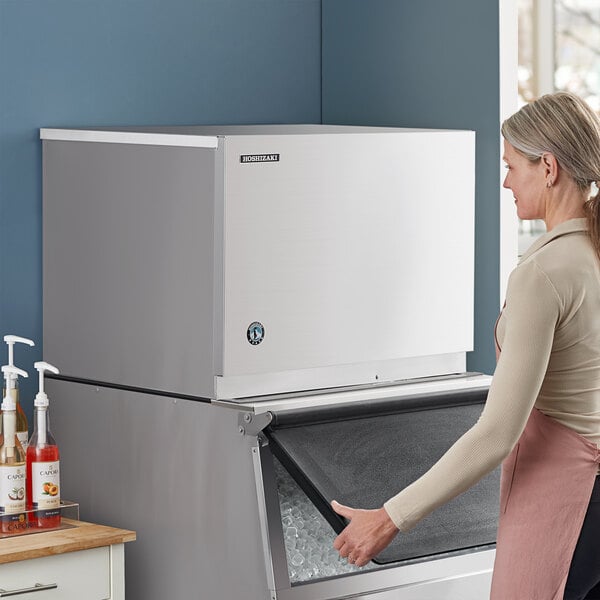

Hoshizaki KMD-505MWJ 30" Water-Cooled Modular Crescent Cube Ice Machine - 592 lb., 115V
Item number 415kmd505mwjMFR number KMD-505MWJ
$4,870.00/Each
This product is no longer available. We've left this page up for reference only.
Product Overview
- Produces up to 592 lb. of crescent-style ice per day
- Low 22" height for space-restricted areas
- 24" depth ideal for placing onto beverage dispensers
- EverCheck alert system and CycleSaver design for energy efficiency and less down time for cleaning
- 115V, 1 phase
UPC Code:400017198842
Other Products from this Line
- Quantity
- 1/Each
- Shipping Weight
- 176 lb.
- Width
- 30 Inches
- Depth
- 24 Inches
- Height
- 22 Inches
- Amps
- 11 Amps
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 115 Volts
- 24 Hour Ice Yield
- 592 Pounds
- Condenser Type
- Water Cooled
- Features
- Made in America NSF Certified UL Certified
- Ice Type
- Crescent Cubes
- Installation Type
- Modular
- Plug Type
- Hardwire NEMA L6-30P
- Refrigerant Type
- R-404A
- Type
- Ice Machines
- Water Inlet Size
- 1/2 Inches
Hoshizaki KMD-505MWJ Details
Easily produce up to 592 lb. of ice per day with this Hoshizaki 30" water-cooled crescent ice machine. Perfect for virtually any food service operation, hospital, school, or resort, this unit boasts a compact design for the vast amount of ice it produces. Each crescent cube measures 1 1/8" x 1 1/2" x 1/2", providing a larger cube that will not melt as fast and water down drinks, making it also great for bars.
At 24" in depth, this cuber is perfectly optimized for use with beverage dispensers. Fewer parts to the construction of this machine help increase its overall durability and make it much easier to work on when it comes time for routine maintenance. Plus, this unit is built with a strong and sleek stainless steel exterior for enhanced durability. The EverCheck alert system notifies you when your machine needs service, making maintenance simpler than ever. The stainless steel double-sided evaporator is designed for increased efficiency with maximized surface area, a faster harvest cycle for increased production, and an increased bonded surface area that creates a stronger, more durable structure.
To save on space, you can mount two units, side-by-side, for double the amount of ice production while only taking up 60" of floor space. Plus, the low profile design is perfect for space-restricted areas with lower ceilings. This unit uses R-404A refrigerant and a CycleSaver design for maximum performance and energy efficiency, while consistently producing crescent-shaped ice cubes that are both crystal clear in appearance and easy to chew. This unit also features snap-fit parts for easy cleaning and a simple one-hour cleaning process thanks to its Clean Assist technology. This machine requires a 115V electric connection.
Overall Dimensions:
Width: 30"
Depth: 24"
Height: 22"

NSF Certified
This item is certified by NSF to applicable standards.

Made in America
This item was made in the United States of America.

ARI / AHRI
This certification is awarded by the Air-Conditioning, Heating, and Refrigeration Institute to denote products of exceptional performance.

Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.

1/2" Water Connection
This unit comes with a 1/2" water connection for water supply.

UL Certified
This product is certified to applicable standards and requirements by UL Solutions.
Resources and Downloads for Hoshizaki KMD-505MWJ

Specsheet
Opens in new tab
Manual
Opens in new tab
Manual
Opens in new tab
Warranty
Opens in new tab
Extended Warranty
Opens in new tab
Parts List
Opens in new tab
Ice Types Guide
Opens in new tab
Brochure
Opens in new tabA PDF viewer is required to view this product's information. Download Adobe Acrobat softwareOpens in new tab
Warranty Info
Note: warranty may vary depending on equipment production date.
Equivalent Items
- Hoshizaki KML-500MWJ (Formerly)
