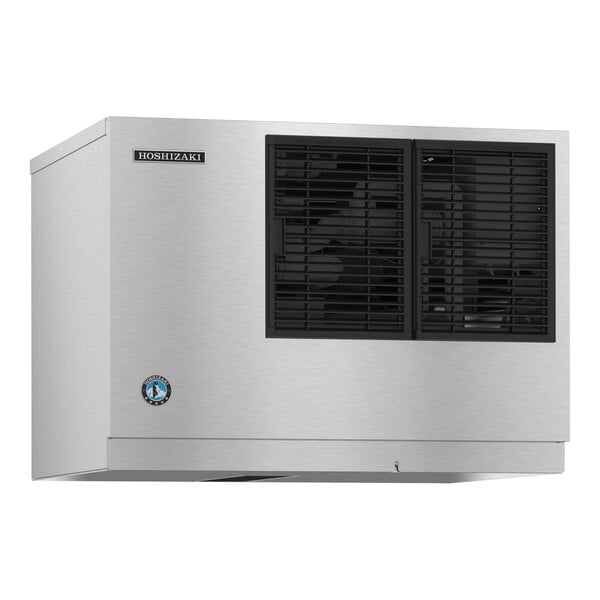

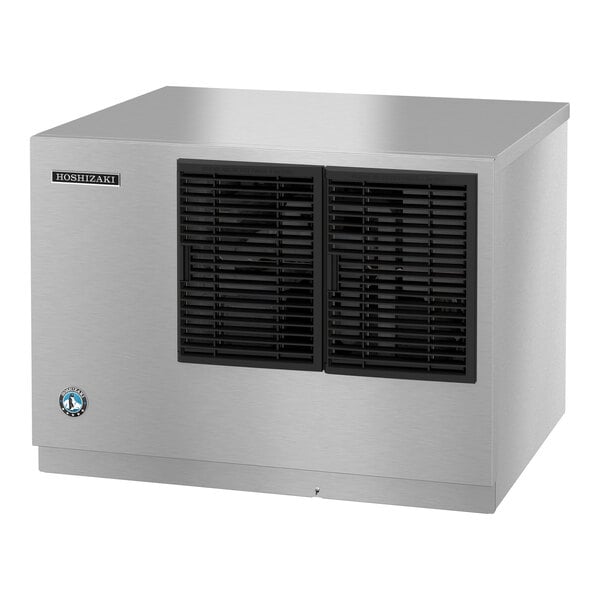

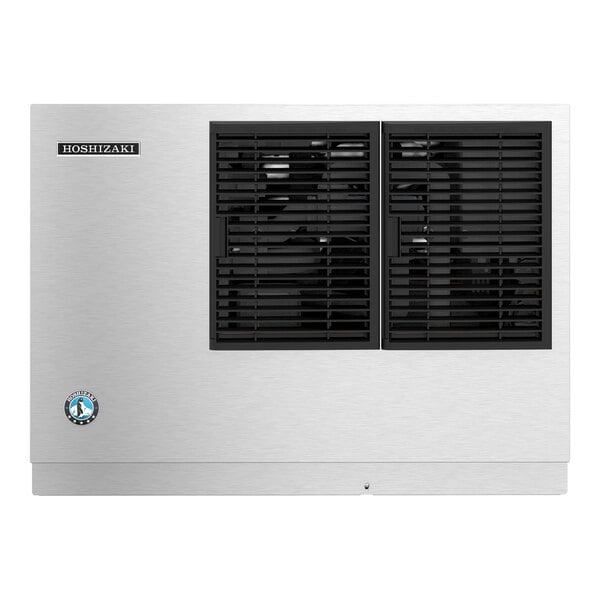

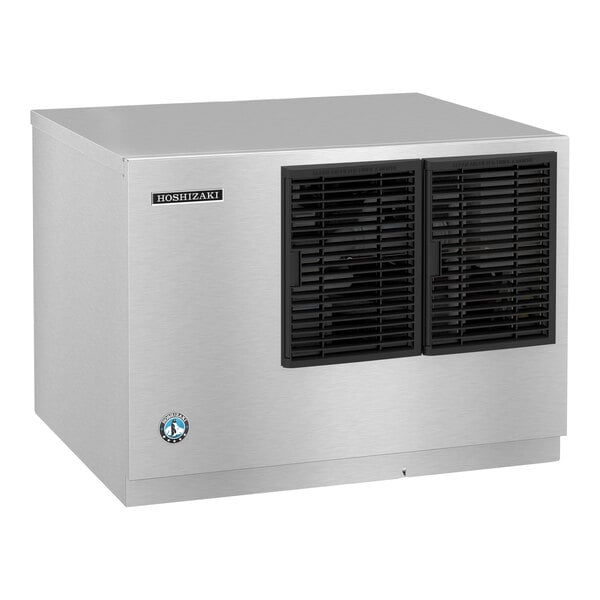

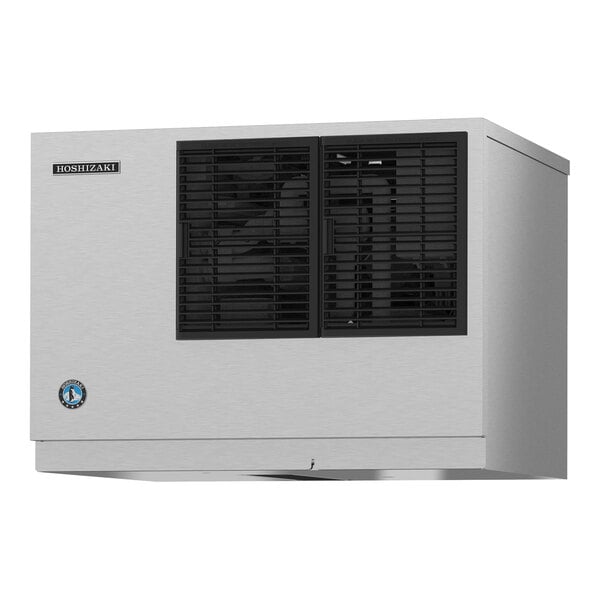

Hoshizaki KM-330MAK 30" Low Profile Air-Cooled Modular Crescent Cube Ice Machine - 431 lb., 115V
Item number 415km330makMFR number KM-330MAK
Works With
$4,265.00/Each
Contact us for details
Start a Live ChatMon-Thu 8AM-8PM EST · Fri 8AM-6PM EST · Sat 9AM-4PM EST
- Apply, opens link in this tab
Earn up to $127.95 back (12,795 points)
(12,795 points) with a Webstaurant Rewards Visa® Credit Card
Quick Shipping
Usually ships in 1 business day
Product Overview
- Produces up to 431 lb. of crescent cube ice per day
- Low profile 26" height for space-restricted areas
- EverCheck alert system and CycleSaver design
- CleanAssist 1 hour cleaning process
- KM Edge stainless steel double-sided evaporator
UPC Code:400018266014
Works With
- Quantity
- 1/Each
- Shipping Weight
- 163 lb.
- Width
- 30 1/8 Inches
- Depth
- 24 Inches
- Height
- 22 Inches
- Amps
- 8.6 Amps
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 115 Volts
- 24 Hour Ice Yield
- 431 Pounds
- Ambient Temperature Range
- 45 - 100 Degrees F
- Condenser Type
- Air-Cooled
- Features
- Made in America NSF Certified UL Certified
- Ice Type
- Crescent Cubes
- Installation Type
- Modular
- Material
- Stainless Steel
- Plug Type
- Hardwire
- Refrigerant Type
- R-290
- Type
- Ice Machines
- Water Inlet Size
- 1/4 Inches
- Water Pressure Range
- 10 - 113 PSI
- Water Temperature Range
- 45 - 90 Degrees F
Hoshizaki KM-330MAK Details
Easily produce up to 431 lb. of ice per day with this Hoshizaki 30" low profile air-cooled crescent ice machine. Perfect for virtually any food service operation, hospital, school, or resort, this unit boasts a compact design for the vast amount of ice it produces. Each crescent cube measures 1 1/8" x 1 1/2" x 1/2", providing a larger cube that will not melt as fast and water down drinks, making it also great for bars.
These half-cylinder shaped cubes work great in cocktails, drinks, ice baths, and help your machine work smarter and more efficiently. The curved design of the cubes allows water to flow evenly over the surface of the evaporator during ice creation, ensuring that impurities are washed away instead of being trapped and frozen in conventional grid-style evaporators. It also ensures that cubes come off individually instead of in unusable sheets and clusters, and the evaporator's smooth, open surfaces are easier to clean and stay clean longer than a traditional grid-style evaporator.
The low profile 22" height makes it suitable for space-restricted areas with lower ceilings, allowing you to maximize your ice production without sacrificing valuable space. Plus, this cuber is perfectly optimized for use with beverage dispensers (sold separately). Fewer parts to the construction of this machine help increase its overall durability and make it much easier to work on when it comes time for routine maintenance. An ultrasonic bin control comes factory-installed for optimal functionality, while the self-diagnostic programming will automatically adjust to changing conditions, providing you with peace of mind.
This unit is built with a strong and sleek stainless steel exterior for enhanced durability. Its EverCheck alert system notifies you when your machine needs service, making maintenance simpler than ever. The KM Edge stainless steel double-sided evaporator is designed for increased efficiency with maximized surface area, a faster harvest cycle for increased production, and an increased bonded surface area that creates a stronger, more durable structure.
This unit uses R-290 refrigerant and a CycleSaver design for maximum performance and energy efficiency, while consistently producing crescent-shaped ice cubes that are both crystal clear in appearance and easy to chew. The air filters are completely removable for cleaning, which keep the condenser coils clean to improve performance and longevity. This unit also features snap-fit parts for easy cleaning and a simple 1-hour cleaning process thanks to its CleanAssist technology. This machine requires a 115V electric connection for operation.
Overall Dimensions:
Width: 30 1/8"
Depth: 24"
Height: 22"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Made in America
This item was made in the United States of America.

Certified by NSF
This item is certified by NSF to applicable standards.

UL Certified
This product is certified to applicable standards and requirements by UL Solutions.

Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.

ARI / AHRI
This certification is awarded by the Air-Conditioning, Heating, and Refrigeration Institute to denote products of exceptional performance.

1/4" Water Connection
This unit comes with a 1/4" water connection for water supply.
Questions & Answers
Looking For Specific Info? Get quick answers to product questions with our AI-powered search.
Frequently Asked Questions From Customers
Additionally, adapter and deflector kits can be used to match up ice machines with other types of bins / dispensers. When available, literature from the manufacturer regarding bin / dispenser / machine compatibility and adapter / deflector kits is also included on our product pages and is kept as up-to-date as possible. If you have any questions, our Customer Solutions team is also happy to help!
