$3,725.00/Each

for details

Ships free with Plus

Due to a manufacturer's price increase, this price will increase by 4% on 04/01/21
Wish List
Rapid Reorder
  • Stores up to 1605 lb. of ice
  • Polyethylene bin liner for sanitary storage
  • H-GUARD Plus Antimicrobial adds extra protection to the ice scoop (included)
Shipping: Usually Ships in 1-6 Weeks; Contact our Customer Solutions team with your ZIP code for more info.
View all Hoshizaki Ice Bins

Hoshizaki

Hoshizaki: Baffle Installation

Hoshizaki: Baffle Installation

About Transcript Embed
Hoshizaki large ice machine storage bins. The baffle is attached with a slot tab mechanism located inside the bin so that it does not need any fasteners. The baffle can be removed by rotating the baffle upwards to a horizontal position.. Next, the baffle can be lifted off the tabs. At this time the baffle can be removed through the door opening. Rotate the baffle up, lift up the snout, and remove. Insert the baffle so slots are facing forward and the flange is facing down. Lay the baffle on the interior flange so that the slot aligns with the locator tab. Please note, the baffle should be inserted horizontally when attaching to the locator tabs, allowing the baffle to lie on the snout supports.

Copy and paste the embed code above.

Watch this video to learn how to properly install your Hoshizaki large storage bin baffle.

Hoshizaki B-1650SS Specs
Width 60 Inches
Depth 41 Inches
Height 66 Inches
Bin Storage Capacity 1,605 lb.
Liner Material Polyethylene
Material Stainless Steel
NSF Listed Yes
Type Ice Bins

Customer questions about this product

How do I match up ice machines, bins, and dispensers?
To help you find the right bin / dispenser / machine combination for your needs, you'll find manufacturer recommended ice bins and dispensers listed in the You May Also Need items on each ice machine's product page. Dispensers and ice bins will have manufacturer recommended ice machines listed in the You May Also Need items on their pages. If the bin or dispenser is wider than the ice machine, additional adapters, deflectors, and/or top kits may be necessary to join the machine to the bin. Please refer to the provided documentation on the ice machine and ice bin / dispenser product pages for more information.

Additionally, adapter and deflector kits can be used to match up ice machines with other types of bins / dispensers. When available, literature from the manufacturer regarding bin/ dispenser / machine compatibility and adapter / deflector kits is also included on our product pages and is kept as up-to-date as possible. If you have any questions, our Customer Solutions team is also happy to help!
Does this ice bin / ice dispenser come with an ice machine?
No, this product must be paired with a compatible ice machine for ice production.
Ask your own question!

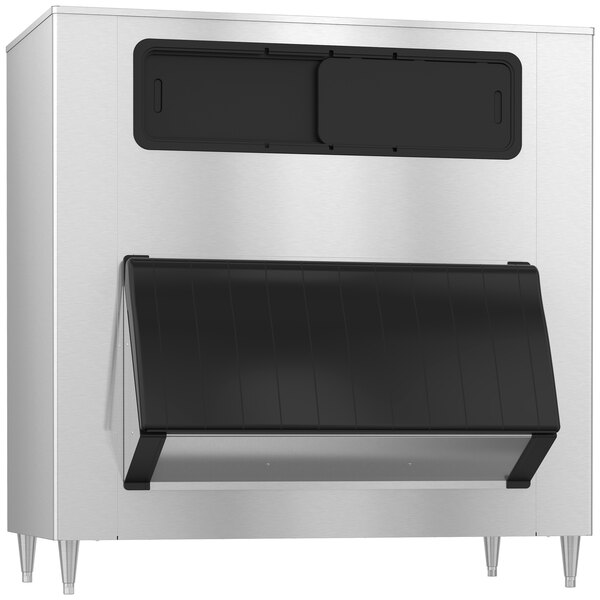

Hoshizaki B-1650SS Details

Safely store up to 1605 lb. of ice with this Hoshizaki B-1650SS 60" ice storage bin! It boasts foamed-in-place polyurethane insulation in all of the bin walls and the bottom of the unit to provide you with maximum ice preservation.

- Stainless steel exterior and seamless polyethylene bin liner ensure simple cleaning and an attractive, long-lasting appearance

- Sealed door gasket helps protect against airborne bacteria

- View windows provide instant inspection and thermal break

- Pouch style insulated door prevents condensation while providing maximum access and mimimal spillage

- 6" adjustable stainless steel legs

- Universal top kit and 82 oz. scoop with H-GUARD Plus antimicrobial agent are included

Overall Dimensions:
Left to Right: 60"
Front to Back: 41"
Height: 66"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

  • NSF Listed

    NSF Listed

    This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.

Resources and Downloads for
Hoshizaki B-1650SS

Specsheet Specsheet Manual Manual Warranty Warranty Top Kit Compatibility Chart Compatibility Chart Diagram Diagram
