$9,750.00/Each

Contact us for details

Ships free with Plus

Call 717-392-7472(Mon - Thur: 5am - 12am EST
Fri: 5am - 8pm EST
Sat & Sun: 9am - 4pm EST)

Earn up to $292.50 back (29,250 points)with a Webstaurant Rewards Visa® Credit Card

Installation Services

Check if installation is currently available for your area.

Enter ZIP Code >

Usually Ships in 1-2 Weeks from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • Produces "crescent cube" (1 1/8" x 1 1/2" x 1/2") half-cylinder ice
  • Up to 1671 lb. of ice per day
  • Protected by H-GUARD Plus antimicrobial agent for safety and sanitation
  • EverCheck alert system and CycleSaver design for energy efficiency and less down time for cleaning
  • 208-230V 3 phase
UPC Code:400010949984

Hoshizaki KM-1601SWJ3 Specs

Quantity
1/Each
Shipping Weight
360 lb.
Width
48 Inches
Depth
27 3/8 Inches
Height
27 3/8 Inches
Amps
8.8 Amps
Hertz
60 Hertz
Phase
3 Phase
Voltage
208 - 230 Volts
24 Hour Ice Yield
1,671 Pounds
Condenser Type
Water Cooled
Features
NSF Listed  Stackable
Ice Type
Crescent Cubes
Plug Type
Hardwire
Power Usage
3.32 kWh per 100 lbs.
Refrigerant Type
R-404A
Type
Ice Machines
Water Usage
18.5 Gallons Per 100 lbs.

Customer questions about this product

How can I figure out the total daily water consumption of my water cooled ice maker?

In order to figure out the total daily water consumption you must take into consideration both condenser cooling water as well as potable ice making water. The equation is as follows:

(Potable Water + Condensor Water) x (lb. of ice per day / 100)

Example: (12 gal + 124 gal) x (400 lb / 100) = 544 gallons per 24 hours

My ice machine has been shut down, or not in use since the COVID-19 shutdowns, how should I restart it?

If your ice machine has been shut down or not in use for a prolonged period time, please reference your machine's user-manual for a restart procedure, often called “Winterization." Please reference your user manual or contact customer service with any questions.

Why does my water cooled ice machine use more water than is advertised?

Water cooled ice machines will seem to use more water than they should because they are constantly pulling in water to cool the machine when it's turned on. The water usage that most manufactures list is the amount of water needed to produce a certain number of pounds of ice in the given period of time, but doesn't factor in the amount of water that the machine will use in total.

Will this ice machine meet my business’s ice demand?

Every business type has unique demands for ice. If you have any questions about how much ice you’ll need please reference our Types of Ice Machines buying guide.

Ask your own question!

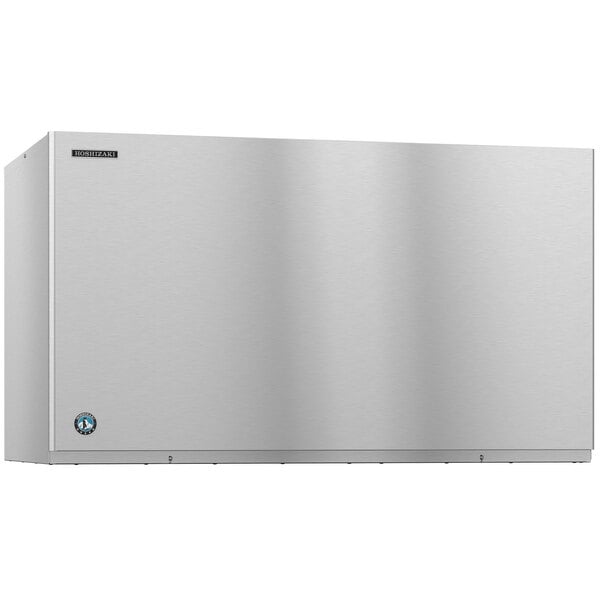

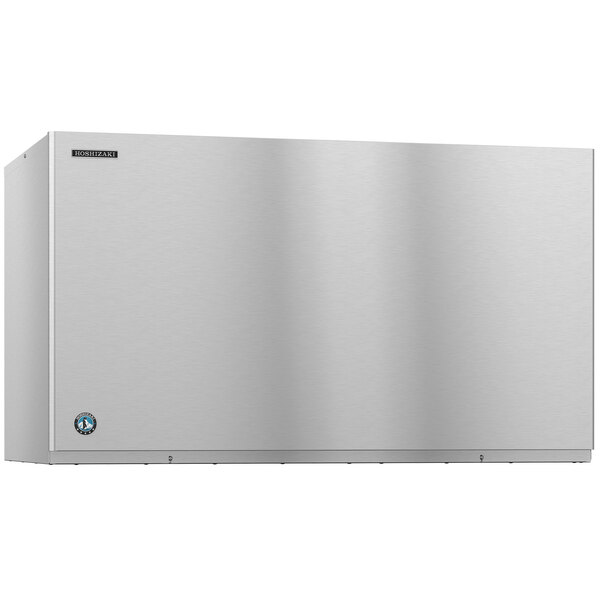

Hoshizaki KM-1601SWJ3 Details

This Hoshizaki KM-1601SWJ3 water cooled ice machine can produce up to 1671 lb. of crescent cube ice per day, and with its stackable design you can put a second unit on top for even greater ice production in the same floor space! Its stainless steel exterior and evaporator are designed for years of dependable service, and the unit utilizes "H-Guard Plus" antimicrobial protection for increased sanitation. The KM-1601SWJ3 requires a 208-230V 3 phase electrical connection.

- Stackable design allows increased ice production

- Produces "crescent cube" (1 1/8" x 1 1/2" x 1/2") half-cylinder ice

- EverCheck alert system, CycleSaver design for ease of use and efficiency

- Stainless steel exterior and evaporator

- R-404A refrigerant

- 208-230V 3 phase

Overall Dimensions:
Left to Right: 48"
Front to Back: 27 3/8"
Height: 27 3/8"

Please check the Compatibility resource for information on items that work with this product.

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • UL Listed, US & Canada

    UL Listed, US & Canada

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.

  • ARI / AHRI

    ARI / AHRI

    This certification is awarded by the Air-Conditioning, Heating, and Refrigeration Institute to denote products of exceptional performance.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

  • Stackable

    Stackable

    This item can safely be stacked with identical or indicated items to promote easy transportation and space-saving storage.

Need Parts & Accessories?

Show replacements and accessories for Hoshizaki KM-1601SWJ3 today!

Resources and Downloads for
Hoshizaki KM-1601SWJ3

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

Note: warranty may vary depending on equipment production date.

Equivalent Items

Hoshizaki KM-1601SWH3 (Formerly)
