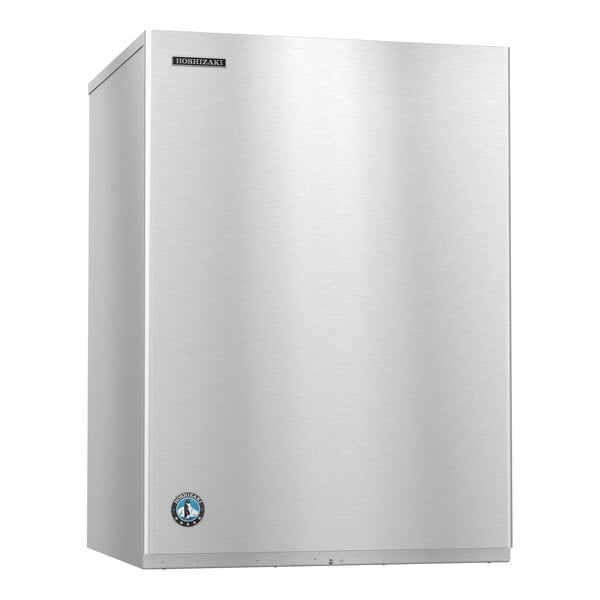

Hoshizaki KM-1601MRJZ3 30" Remote Air-Cooled Modular Crescent Cube Ice Machine - 1,653 lb., 208-230V, 3 Phase
Item number 415km16mrjz3MFR number KM-1601MRJZ3
Works With
$10,340.00/Each
Contact us for details
Start a Live ChatMon-Thu 8AM-8PM EST · Fri 8AM-6PM EST · Sat 9AM-4PM EST
Earn up to $310.20 back (31,020 points)with a Webstaurant Rewards Visa® Credit Card
Usually Ships in 1-2 Weeks from manufacturer
Lead times vary based on manufacturer stock
Product Overview
- Produces up to 1,653 lb. of crescent cube ice per day
- Durable stainless steel dual-sided KMEdge evaporator
- EverCheck alert system and CycleSaver design
- Remote condenser (sold separately) ensures a more comfortable environment
- R-404A refrigerant, 208-230V, 3 phase
UPC Code:400017983509
Works With
- Quantity
- 1/Each
- Shipping Weight
- 316 lb.
- Width
- 30 Inches
- Depth
- 27 5/8 Inches
- Height
- 41 11/16 Inches
- Amps
- 12.9 Amps
- Hertz
- 60 Hz
- Phase
- 3 Phase
- Voltage
- 208 - 230 Volts
- 24 Hour Ice Yield
- 1,653 Pounds
- Ambient Temperature Range
- 45 - 100 Degrees F
- Color
- Silver
- Condenser Type
- Air Cooled Remote
- Features
- Made in America NSF Certified
- Ice Type
- Crescent Cubes
- Installation Type
- Modular
- Material
- Stainless Steel
- Plug Type
- Hardwire
- Refrigerant Type
- R-404A
- Type
- Ice Machines
- Water Inlet Size
- 3/8 Inches
- Water Pressure Range
- 10 - 113 PSI
- Water Temperature Range
- 45 - 90 Degrees F
Hoshizaki KM-1601MRJZ3 Details
Easily produce up to 1,653 lb. of ice per day with this Hoshizaki remote air-cooled modular ice machine. Perfect for virtually any food service operation, hospital, school, or resort, this unit produces crescent cube ice that is great for food displays and in beverages. Each crescent cube measures approximately 1 1/8" x 1/2" x 1 1/2". For both ease of overall cleaning and maximum performance, the machine features integrated ultrasonic bin control.
The unit's quiet operation and efficient remote condenser design make this machine perfect for hotels, bars, restaurants, buffets, and any other establishment that needs to limit ambient noise for customer and employee comfort. Less noise reaches the customer environment, which results in a more peaceful, inviting atmosphere. This 3-phase unit operates using R-404A refrigerant.
For impressive performance, the unit has an EverCheck alert system for dependable use and a CycleSaver design for energy efficiency. One flush cycle runs automatically per hour, and an assisted cleaning process is offered through the CleanAssist feature. To save space, you can mount two units side-by-side for double the amount of ice production.
When the demand for ice is high, an operation requires a reliable, durable ice machine. This one is built with a strong and sleek stainless steel exterior and even features a stainless steel dual-sided KMEdge evaporator. This machine requires a 208-230V electric connection and must be hardwired. A cord and plug are not included. Compatible remote condensers, ice bins, and dispensers sold separately.
Overall Dimensions:
Width: 30"
Depth: 27 5/8"
Height: 41 11/16"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

NSF Certified
This item is certified by NSF to applicable standards.

Made in America
This item was made in the United States of America.

ARI / AHRI
This certification is awarded by the Air-Conditioning, Heating, and Refrigeration Institute to denote products of exceptional performance.

Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.

UL Certified
This product is certified to applicable standards and requirements by UL Solutions.

3/8" Water Connection
This unit comes with a 3/8" water connection for water supply.
Questions & Answers
Looking For Specific Info? Get quick answers to product questions with our AI-powered search.
Frequently Asked Questions From Customers
Additionally, adapter and deflector kits can be used to match up ice machines with other types of bins / dispensers. When available, literature from the manufacturer regarding bin / dispenser / machine compatibility and adapter / deflector kits is also included on our product pages and is kept as up-to-date as possible. If you have any questions, our Customer Solutions team is also happy to help!
Resources and Downloads for Hoshizaki KM-1601MRJZ3

Specsheet
Opens in new tab
Manual
Opens in new tab
Warranty
Opens in new tab
Parts List
Opens in new tab
Service Manual
Opens in new tab
Brochure
Opens in new tabA PDF viewer is required to view this product's information. Download Adobe Acrobat softwareOpens in new tab
Warranty Info
Note: warranty may vary depending on equipment production date.
