Hobart 4822-34 #22 Meat Grinder / Chopper 120V - 1 1/2 hp
Contact us for detailsShips free with Plus
Call 717-392-7472 (Mon-Thur 24 Hours, Fri 12AM-8PM EST
Sat & Sun: 9AM-4PM EST)
- 120V, 60Hz., single phase
- Grinds 12-20 lb. per minute
- 6' flexible cord
- 1 1/2 hp motor
- All food contact surfaces are easy to remove and clean without tools
- Stainless steel housing
- 212 RPM
You May Also Need
The Hobart model 4822 chopper is designed to grind 16 pounds per minute, first cutting through a 1/8" plate while the 4822FS will grind 20-22 pounds per minute, first cutting through a 1/8" plate. The 4812 chopper will cut 8 pounds per minute first cutting. This is essentially the only difference in the choppers. All use a 1 horsepower Hobart-built motor. For the purpose of this video, we will use a Hobart model 4822 chopper.

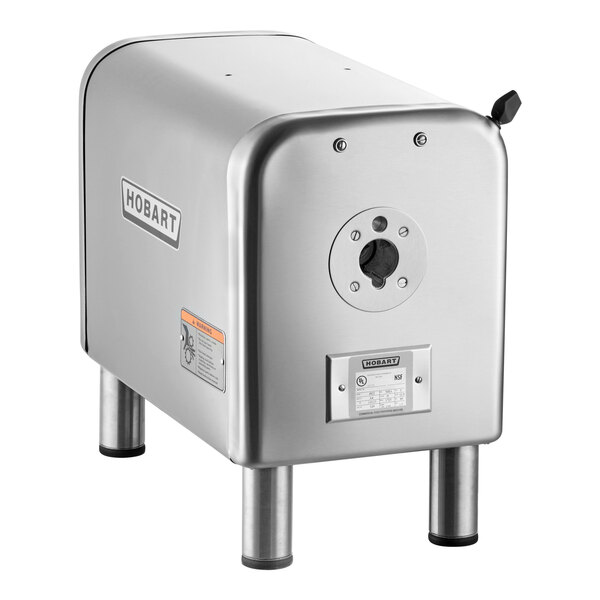

Prior to assembly, a light coating of FactoPure T70 oil supplied should be applied to the surfaces of all parts. The knife and plate need some preliminary lubrication. Rub towel over the cutting faces of these parts. Check to ensure the hub and socket are clean and clear of any obstruction. Insert the cylinder assembly with a slight twisting motion toward the left. The cylinder stop-pin in the attachment will contact the side of the hole that receives it. Tighten the thumb screw. Note, when disassembling the chopper, it is only necessary to loosen the thumb screw about three turns. It should never be removed.
Slide the worm into the cylinder and rotate the square shag of the worm until it locks into the hub drive. Install the knife with cutting edges out and the plate, making sure the notch aligns with the pin in the bottom of the cylinder. Thread the adjusting ring on and tight. If the knife and plate are both sharp, only a moderate pressure will be needed. Knives and plates must be sharp and true for proper cutting action.
Install the feed pan and the feed stopper. On the FS model, tighten the feed pan screw holding the pan securely to the chopper attachment assembly. Note, the knife and plate depend on meat for lubrication, therefore the chopper should never be operated without meat. Never allow your chopper to run without meat in the chopping end; only a few minutes of such running can ruin and knife and plate.
Take out the entire chopper attachment each time after using, and place it in the refrigerator till needed again. Remember, the chopper must be thoroughly cleaned and sanitized after assembly and before being placed into service. We will cover cleaning and detail later in the tape.

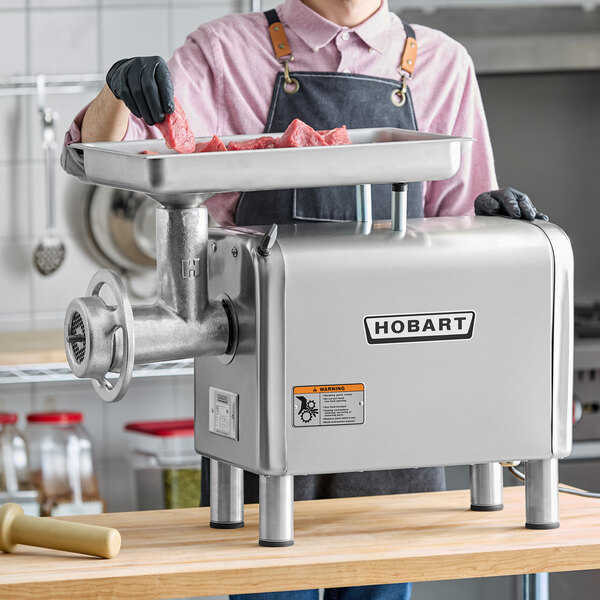

Cut the meat into strips. Turn the machine on and feed the meat into the chopper using the feed stopper only as needed. If the strips are cut to proper size, they will feed without assistance from the feed stopper. Allowing both hands of the operator free to feed the meat. When running meat through the chopper a second time, more speed is attained by feeding small quantities at a time than by trying to force large amounts with the feed stopper. The feed pan should always be kept in place in the cylinder. It not only makes regular feeding easy, but keeps the chopper attachment ready for immediate use.
The fineness to which meat is cut is governed by the size of the holes in the plate, not by the tension put on the adjusting ring. Remember, do not tighten the adjusting ring more than hand tight.
The chopper should be thoroughly cleaned after installation and before being placed into service. For cleaning, powder detergent such as Spic and Span is recommended. Do not use liquid soap. It will corrode metal surfaces. Warning: Disconnect the electrical supply. Using a hot detergent solution, clean rinse water, and a sanitizing solution, clean, rinse, and sanitize the feed pan, feed stomper, worm assembly, knife, plate, and adjusting ring. Using a long nylon brush, clean the cylinder assembly. Wash, rinse, and sanitize the machine housing using clean cloths.
This concludes operator training for the Hobart model 4812 and model 4822 chopper. To obtain service and parts information concerning these choppers, contact your local Hobart service office.
Learn how to properly assemble, clean, and operate your Hobart model 4812 and 4822 chopper with this informative, step-by-step video.
|Hobart 4822-34 Specs|
|Width||12 13/16 Inches|
|Depth||29 7/8 Inches|
|Height||23 1/4 Inches|
|Capacity||12 - 20 lb. per minute|
|Horsepower||1 1/2 HP|
|Type||Meat Choppers / Grinders|
Customer questions about this product
- What do I need to do to complete my order for this meat grinder / chopper?
- Under “Accessories & Options” (top right of the page), any fields marked with an asterisk (*) MUST be selected at time of order; you need to choose one of the available options in that field for the product to work properly. However, you can find all of our available options on the site too. If, for example, you wanted to order several different grinder plate sizes, you can find additional ones in our Meat Grinder Accessories category!
- Does adding optional accessories impact the lead time on this product?
- Yes. If optional accessories are added to this product, this product may require additional lead time. If you have any questions prior to ordering please contact Customer Solutions.
- I'm concerned that the plates and knives I have won't work with this hub. Is there a way I can be sure they will fit?
- Measure the square hole in your plate or knife. A standard #12 hub fits plates and knives with a 9/16" square hole, while a standard #22 hub fits plates and knives with a 3/4" square hole.
Hobart 4822-34 Details
The Hobart 4822-34 #22 meat chopper is perfect for "on-demand" meat chopping, grinding 12-20 lb. of meat per minute through a 1/8" plate. Its powerful 1 1/2 horsepower motor operates the 212 RPM transmission for fast, uniform results every time.
The Hobart 4822-34 meat chopper offers unbeatable ease of cleaning and sanitation. In fact, all parts which contact food are easily accessible and readily removable for convenient cleaning without the use of tools. Plus, the exterior stainless steel housing is easy to wipe down and sanitize so that your meat grinder is always clean for the next use. This unit requires a 120V, 60Hz. single phase electrical connection.
Width: 12 13/16"
Depth: 29 7/8"
Height: 23 1/4"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
Made in America
This item was made in the United States of America.
UL US & Canada
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL) for use in the United States of America and Canada.

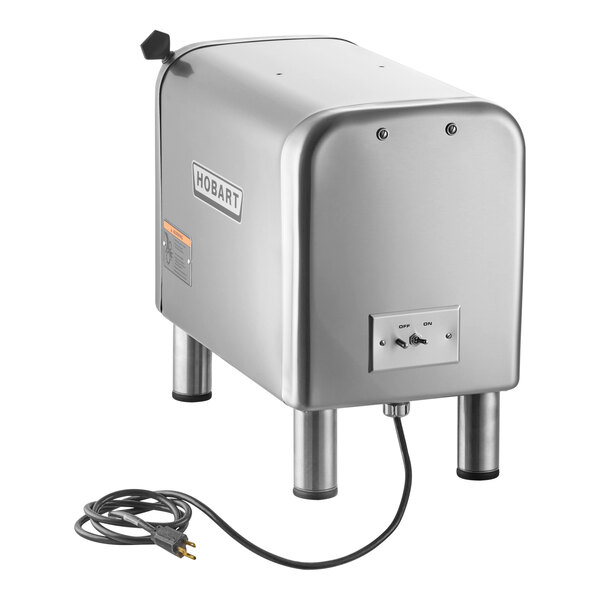

This unit comes with a NEMA 5-15P plug.
Resources and Downloads for
A PDF viewer is required to view this product's information. Download Adobe Acrobat software
RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. The right is reserved to deny shipment for residential usage; if this occurs, you will be notified as soon as possible.
