$2,869.00/Each
Discounted shipping with PlusEarn up to $86.07 back (8,607 points)with a Webstaurant Rewards Visa® Credit Card
Product Overview
- Supplies fresh supply air to hoods equipped with a makeup air system
- Includes washable aluminum mesh filters, accessible through hood end cap for easy service
- Galvanized steel housing, weather-proof cabinet designed for outdoor roof mounting
- Recommended for hoods 20' - 24' long
- 5200 CFM, 1 1/2 hp, 888 RPM, 115V, 1 phase
Works With"Works With" items are guaranteed to work with the item you are viewing, such as lids that will fit a cup or casters that will fit a piece of equipment. If an item is not listed in this section, we do not guarantee that it will work with the product you are viewing and do not recommend that you purchase them for use together.
- Quantity
- 1/Each
- Shipping Weight
- 284 lb.
- Phase
- 1 Phase
- Voltage
- 115 Volts
- Cubic Feet per Minute
- 5,200 CFM
- Drive Type
- Belt Drive
- Features
- Made in America
- Horsepower
- 1 1/2 HP
- Plug Type
- Hardwire
- RPM
- 888 RPM
- Type
- Supply Ventilation System Components

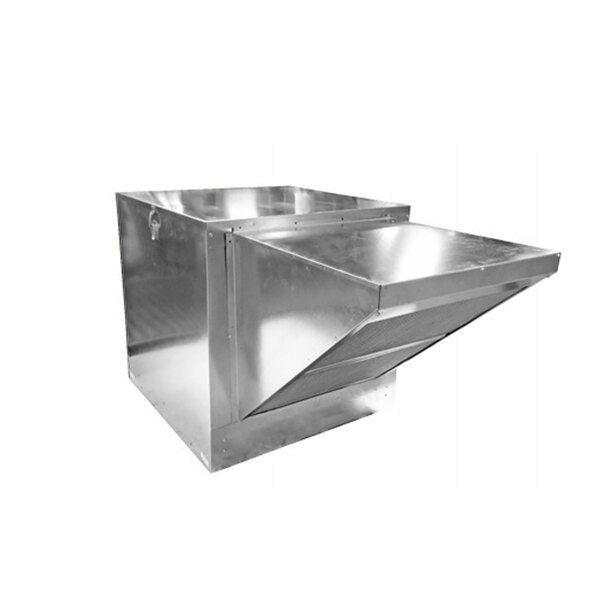

NAKS SF11 Details
This NAKS SF11 supply fan works in conjunction with your makeup restaurant hood system to deliver fresh air into your kitchen and ensure a comfortable work environment! Makeup air is important in applications where the kitchen doesn't have enough fresh air coming in to replace the air exhausted by the hood, since your hood requires this replacement air to perform to specifications and remove grease, smoke, and VOCs effectively. It is recommended for use on hoods 20' - 24' long.
This 5200 CFM, belt drive fan delivers superior power with low noise levels, and it features a 15" blower. The fan is designed for durability, too, with a housing made from galvanized steel and a weather-proof cabinet that is designed for outdoor roof mounting. The heavy duty ball bearings in the motor withstand temperatures from -65 to +250 degrees Fahrenheit, giving you maximum durability. It comes with 2 washable aluminum mesh filters that install within the intake hood, and are accessible through the hood end cap for easy service. The motor is 115V, single phase, and is rated at 1 1/2 hp. It must be hard-wired; a cord and plug are not included. Please be sure to review any relevant fire codes to your area before ordering a ventilation system, and understand the requirements for any equipment going under your hood as this may change from area to area.
Overall Dimensions:
Length: 57"
Width: 32"
Height: 32"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Customer questions about this product
How do I size a fan for my hood?
UL Listed, US
This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States.
Made in America
This item was made in the United States of America.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
