$5,380.00/Each

Ships free with Plus

for details

Earn up to $161.40 back (16,140 points)with a Webstaurant Rewards Visa® Credit Card

Fuel Type: Natural Gas

Installation Services

Check if installation is currently available for your area.

Usually Ships in 2 Weeks from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • Stainless steel front, top, sides, backsplash, and bottom
  • Two 20,000 BTU infra-red burners
  • 2 individual Hi-Lo valve controls
  • Three-position, spring-balanced adjustable rack assembly
  • For range-mount applications
  • Large capacity removable grease pan
  • 1/2" NPT gas inlet required
  • Natural gas
UPC Code:400010076826

Garland / US Range UIR60-0001 Specs

Quantity
1/Each
Shipping Weight
260 lb.
Width
59 Inches
Depth
16 5/8 Inches
Height
34 1/2 Inches
Phase
1 Phase
Features
NSF Listed
Gas Connection Size
1/2 Inches
Installation Type
Range Mounted
Number of Shelves
1 Shelf
Power Type
Natural Gas
Total BTU
40,000 BTU
Type
Salamanders

Garland / US Range UIR60-0001 Details

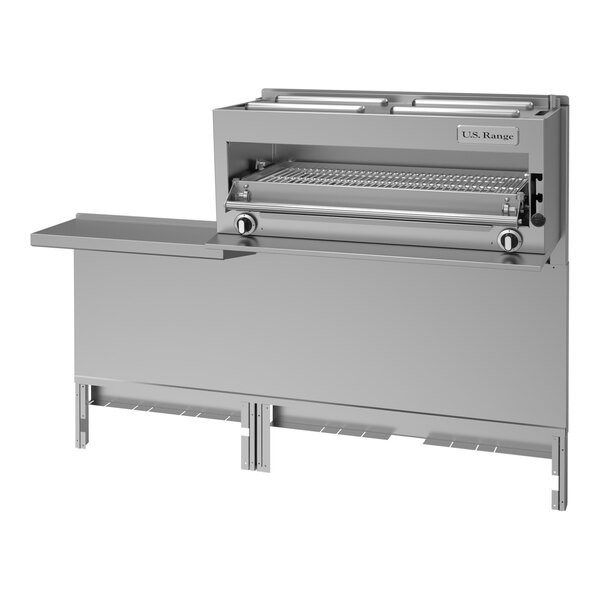

This Garland / U.S. Range UIR60 natural gas Infra-Red range-mount salamander broiler is a great addition to your existing U60 range (sold separately)! Thanks to two powerful 20,000 BTU infra-red burners, you'll be able to brown the tops of casseroles, melt cheese, broil or reheat individual entrees, and finish cuts of meat with ease! The Garland / U.S. Range UIR60 features a 35 1/2" wide broiler on the left side with a 24" flue riser with shelf on the right.

This range-mount, salamander broiler features a stainless steel top, front, sides, backsplash, and bottom with a heat shield for durability and easy cleaning. A three position spring-balanced adjustable rack assembly, two individual hi-lo valve controls, and a large capacity removable grease pan enhance flexibility and ease of use. A 1/2" NPT gas inlet is required.

Overall Dimensions:
Width: 59"
Depth: 16 5/8"
Height (total): 34 1/2"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

Can I cancel my order for this Garland item if I change my mind?

Because this item is built-to-order, the manufacturer will charge a 10% cancellation fee for orders where the item has already been built but not yet shipped.

My business is at a high elevation; does this change anything when I order gas cooking equipment?

Many gas equipment manufacturers need to make adjustments to the equipment so it operates correctly at elevations over 2,000 feet. Sometimes we can special order from the manufacturer and have your cooking equipment delivered ready-to-go, but in cases where your unit is in stock and waiting to ship, you’ll need to have a qualified service technician come to your location and alter your unit at the time of installation so that it is compatible with a higher elevation. Contact our Special Orders team prior to placing your order, and we will let you know what will work best for the equipment you are planning to purchase.
Ask your own question!
  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • CSA Design, US

    CSA Design, US

    This item has been certified by the Canadian Standards Association (CSA) to meet applicable certification requirements for gas-fired products used in the United States.

  • CSA Blue Flame, Canada

    CSA Blue Flame, Canada

    This product has been certified by the Canadian Standards Association (CSA) to meet requirements for gas-fired products in Canada.

  • 1/2" Gas Connection

    1/2" Gas Connection

    This unit comes with a 1/2" gas connection to be installed by a professional.

Resources and Downloads for
Garland / US Range UIR60-0001

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

Please note that this item is subject to a 7% export warranty administration fee for all international orders.
Please note that this item is subject to a 15% Export Infringement Administration fee for all international orders. RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications. Note: This warranty covers products shipped to and installed in the USA only.
