Product Overview
- 4 1/2" tall spout, 0.5 GPM multi-laminar spray device
- 3/8 compression connection for water line; 3/8" back-check tee mixing valve included
- 24" long flex hose connects faucet to control module
- Powered via plug-in adapter or with 4 AA batteries (both included)
- Brass construction, polished chrome finish
Other Products from this Line
$374.04/Each
$398.81/Each
$345.25/Each
$366.21/Each
$377.59/Each
- Quantity
- 1/Each
- Shipping Weight
- 5.65 lb.
- Spout Length
- 3 7/8 Inches
- Faucet Height
- 4 1/2 Inches
- Battery Type
- AA
- Faucet Centers
- Single
- Features
- ADA Compliant Automatic Shutoff Flex Inlets Included Hands Free Mixer Multi-Laminar
- Finish
- Chrome
- Flow Rate
- 0.5 GPM
- Material
- Brass
- Mounting Holes Required
- 1 Mounting Hole
- Mounting Style
- Deck Mounted
- Spout Type
- Deck Spout
- Type
- Touchless Faucets
- Water Inlet Size
- 3/8 Inches
Sloan 3362103 Details

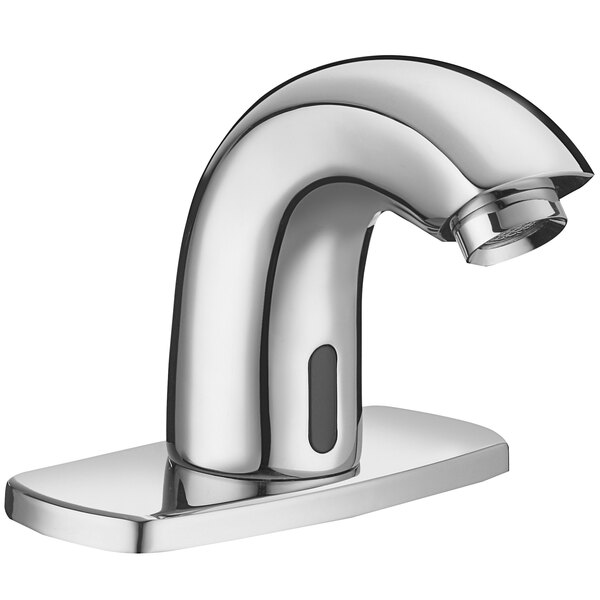

This Sloan 3362103 deck mounted sensor faucet with 4 1/2" spout, 4" trim plate, and 0.5 gpm multi-laminar spray device is a great way to bring the convenience and safety of hands-free operation to your restroom! It features a polished chrome finish that complements nearly any design aesthetic, lending a subtle, modern accent to any sink. It features a 4 1/2" high curved pedestal spout with a 0.5 gpm multi-laminar spray device, which creates a comfortable flow pattern without aerating the water stream. This design is particularly important in applications where contamination is a concern, since a typical aerator can introduce airborne germs into the water supply.
The infrared sensor has an adjustable range of 4" - 12" and comes set with a default timeout of 30 seconds. By using a sensor, you eliminate the faucet handle, which is a key contact point for germs to spread. This helps to make your business safer and more sanitary for guests and employees alike! The faucet installs on a single mounting hole, with a 4" trim plate to blend it into the sink deck and to cover up any unused holes from an old faucet. A 24" long flex hose and 36" long sensor cable connect the faucet to the control module, which installs conveniently underneath the sink and is powered by the plug-in adapter or with 4 AA batteries (included). With batteries installed, it can provide up to 2 years of life, giving you plenty of time before a changeout is needed. A filtered solenoid valve and serviceable strainer filter are also included.
It also comes with a 3/8" back-check tee mixing valve to mix the incoming hot and cold water to the desired temperature. The supply hoses for the hot and cold lines to the tee, and the hose to connect the tee to the faucet are sold separately.
Overall Dimensions:
Spout Length: 3 7/8"
Faucet Height: 4 1/2"
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Customer questions about this product
Can I use this product to serve drinking water?
Does this item have any additional agency approvals and certifications?
What measurements do I need to install a faucet?
Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.
Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.
Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
CalGreen Compliant
This product is compliant with California's CalGreen Green Building Standards Code.
IAPMO R&T, UPC Certified - USA
This product is certified by the International Association of Plumbing and Mechanical Officials (IAPMO) to meet Uniform Plumbing Code (UPC) standards for the USA
ADA Compliant
This item meets criteria established by the Americans with Disabilities Act (ADA).
IAPMO R&T, UPC Certified - USA & Canada
This product is certified by the International Association of Plumbing and Mechanical Officials (IAPMO) to meet Uniform Plumbing Code (UPC) standards for the USA and Canada.
3/8" Water Connection
This unit comes with a 3/8" water connection for water supply.
