Name: T&S WaveCrest ECW-3158-BN Brushed Nickel Deck Mount Sensor Faucet with 4" Compact Cast Spout and 0.5 GPM Vandal-Resistant Non-Aerated Spray Device
Brand: T&S Brass and Bronze Works
SKU: 510ECW3158BN
Price: 499 USD
Availability: LimitedAvailability

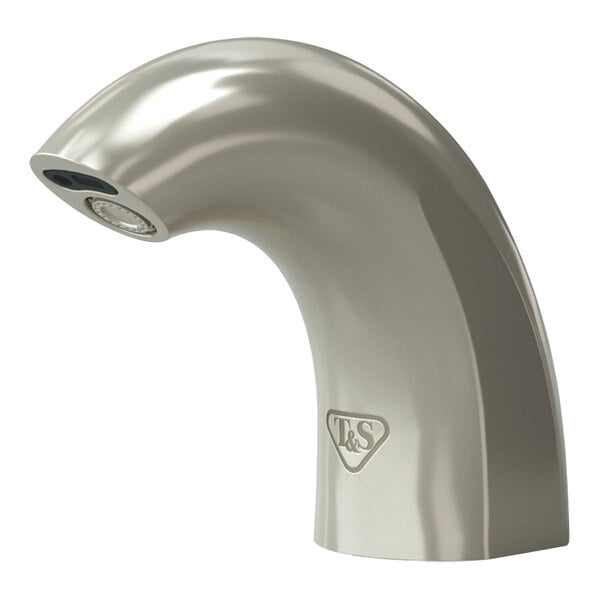

A T&S WaveCrest brushed nickel deck mount sensor faucet with a curved spout.

0:00 / 0:00

Only

$499.00/Each

Ships free with Plus

Due to a manufacturer's price increase, this price will increase by 5.00% on 01/01/25

Earn up to $14.97 back (1,497 points)with a Webstaurant Rewards Visa® Credit Card

Finish: Brushed Nickel

Usually Ships in 2-3 Weeks from manufacturer

Lead times vary based on manufacturer stock

Product Overview

Brass spout with brushed nickel finish
Water-resistant control module with adjustable flow control switches
0.5 GPM vandal-resistant non-aerated spray device
Integral check valve and mechanical temperature mixing valve
AC/DC adapter with battery backup

UPC Code:671262916035

View all T&S Brass and Bronze Works Hands Free / Electronic Faucets

Quantity: 1/Each
Shipping Weight: 5.05 lb.
Spout Length: 3 15/16 Inches
Faucet Width: 2 Inches
Faucet Height: 4 11/16 Inches
Battery Type: AA
Faucet Centers: Single
Features: Automatic Shutoff Flex Inlets Included Hands Free Motion Sensor NSF Listed With Mixing Valve
Finish: Nickel
Flow Rate: 0.5 GPM
Material: Brass
Mounting Holes Required: 1 Mounting Hole
Mounting Style: Deck Mounted
Plug Type: NEMA 1-15P
Power Type: AC Adapter Battery
Pressure Rating: 20 - 125 PSI
Spout Clearance: 3 5/16 Inches
Spout Type: Cast
Temperature Rating: 40 - 140 Degrees F
Type: Touchless Faucets
Water Inlet Size: 3/8 Inches

T&S Brass and Bronze Works ECW-3158-BN Details

This T&S WaveCrest deck-mounted sensor faucet is a great way to help make your restroom contact-free, improving safety and sanitation! Because it uses an electronic sensor to control the water flow, this model eliminates a key contact point for germs to spread - the faucet handles. The faucet's electronics are housed inside a water-resistant control module, which installs out of the way below the countertop and is powered by an AC/DC adapter with a battery backup. This ensures you can always operate it, even in the event of a power outage. The single-hole, deck-mounted design is easy to install. For optimum versatility, this unit features an integral check valve and mechanical temperature mixing valve. It has a temperature range of 40 to 140 degrees Fahrenheit.

The brushed nickel brass compact cast spout provides an elegant design and ample space for hand-washing, while a 0.5 GPM vandal-resistant non-aerated spray device creates a gentle flow pattern with minimal splashing. The vandal-resistant design makes it well-suited for high-traffic areas. The 18" flexible stainless steel water hoses with 3/8" compression connections connect the faucet to the control valve. Its control module has convenient flow control switches, allowing you to adjust water flow to meet your specific needs. With a pressure range of 20-125 PSI, this module delivers reliable performance in various water pressure conditions. Additionally, the auto time-out, auto flush, and shut-off delay control options offer customizable settings to optimize water usage and efficiency.

Overall Dimensions:
Spout Length: 3 15/16"
Faucet Height: 4 11/16"
Faucet Width: 2"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

Can I use this product to serve drinking water?

This product is not intended for use in applications where potable (drinking) water is dispensed for human consumption.

Does this item have any additional agency approvals and certifications?

There are a wide range of regulations that govern plumbing code! We attempt to list any current certification marks with an official logo on the product page for your convenience. However, additional approvals, codes, and standards this product adheres to may be listed on the product specsheet.

What measurements do I need to install a faucet?

When installing a faucet, these are some of the most common measurements you’ll need:

Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.

Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.

Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.

Ask your own question!

ADA Compliant
This item meets criteria established by the Americans with Disabilities Act (ADA).
CSA, US and Canada
This product has been certified by the Canadian Standards Association (CSA) to meet select standards for electrical, plumbing, and/or mechanical products in the United States and Canada.
UL Listed, US & Canada
This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
1-15P
This unit comes with a NEMA 1-15P plug.
3/8" Water Connection
This unit comes with a 3/8" water connection for water supply.
