Other Available Voltages:

  • No heat technology dries hands in 10 seconds
  • Offers up to 95% cost savings when compared with paper towels
  • Uses up to 80% less energy than conventional dryers
  • Comes with noise reduction nozzle, adjustable speed settings, sound controls, and heat options
  • 110/120V, 500W
UPC Code: 700251125193
Xlerator Hand Dryer Surface Mount and Wall Guard Installation

Xlerator Hand Dryer Surface Mount and Wall Guard Installation

Okay, let's get started. Surface mount video number one. Hopefully you're ready. You've got your checklist, you've got your supplies and tools in place. Let's get started here in the restroom. I've got Brett and Chris, both from RMSe. Chris, our technician. Brett, my goodness gracious, we're not making Chris's job any easier in this kind of environment. Correct. Now we've given him a very small space to work in. We've given him tile walls. The sinks are on top of him. This is about as difficult as it gets. But, if you can do it here, you can do it anywhere. Let's give our viewers at home a birds-eye view. Let's get out of the shot and we're going to let Chris do his thing! All right, Chris is removing the old paper towel dispenser in preparation for the hand dryer install. Yes, he's removing the old mounting hardware so the dryer has a nice, smooth surface to mount to. Here, Chris is marking the specific locations for the mounting holes. He's making sure to use the correct heights as specified by the manufacturer. The heights are located in the instructions. It is extremely important that the dryer meets certain ADA guidelines where applicable. Make sure you also use the correct tools such as a hammer drill as Chris is using here. It's also extremely important that the dryer be level upon installation. It's highly recommended that a trained professional preform this electrical installation. Here, the proper gauge wire is being routed into the electrical panel based on the voltage that the wire is rated for. Xlerator comes in a range of voltages to meet varying electrical services. The wire is being routed to a new, 20 amp breaker. Xlerator can also be installed on 15 amp breakers, which is important when retro-fitting older buildings. Depending on the voltage, the dryer may need to be on a dedicated circuit and appropriate breaker. In this case, the dryer needs a dedicated circuit. One more wire and the Xlerator will be good to go at the other end of the restroom. While the wired circuit is still off in the panel, Chris is bringing the other end down the wall with a snake in the location of the knock-out. on the Xlerator base plate. he is screwing the electrical connector to the base plate and following the electrical schematic sticker located on the hand dryer for wire connections. With the power still off, the cover is installed to the hand dryer using two tamper-proof screws and a wrench which are provided with all units. Lastly, power is installed and the unit is ready for use. Xlerator offers the Xlerator hand dryer wall guard. The wall guard is an anti-microbial shield made specifically to fit underneath your hand dryer. This will protect your walls from water spray that may be blown off of wet hands by Xlerator's powerful air stream. To install the wall guard, clean the wall surface with isopropyl alcohol. This will make sure the surface is dry and free of any dust or debris. Center the wall guard underneath the hand dryer so the top of the wall guard is 1" below the bottom of the dryer. Four strips of double-sided tape are included for reach panel. Apply the tape strips to the textured side of the black or white panel and the smooth side of the brushed, stainless panel as shown. Lay the tape out according to the illustration included in your instructions. Press each tape strip firmly onto the plastic or stainless steel as it is applied. Continue until all four strips are applied. Alignment is critical. Once the wall guard is placed, it can't be repositioned. Align the top edge of the wall guard with the markings on the wall and firmly press into place. If you'd like to, you can even apply a small bead of silicone sealant around the edge. To clean your wall guard, use mild, soapy water and a soft cloth. Mild dish soap mixed with water in a spray bottle works best. Any cleaner that contains ammonia or abrasive cleansers should not be used on the surface.

Copy and paste the embed code above.

Mount your Xlerator hand dryer and wall guard using these step-by-step instructions! Once both are in place, your guests can quickly and easily dry their hands. Your wall will even be protected from excess water, soap, and debris.

Xlerator Hand Dryer Recess Kit Installation

Xlerator Hand Dryer Recess Kit Installation

Welcome to video number two. Now, we have the proper surface mount and base established. Now it's time to talk about putting in the proper ADA compliant recess kit. Brett, we have to cut a hole in this fresh, green wall. Yes, exactly. This is the Xlerator recess kit. It is going to allow you to put in an ADA compliant application. It's going to recess your dryer about 3 1/2" to 4" if you're in a tight space. This will actually create more space for your walkway and give you a little better flow for your bathroom. You can put it in yourself, but we highly recommend you need a skilled technician to do this kind of work. This is going to take a more skilled technician than our last application because we are going to be cutting through drywall, or for that matter, solid surface. Okay, let's get started. Let's bring in our professional technician, Chris, once again. Perfect. Here, Chris is measuring the cut-out location for the recess kit. He is marking straight lines at the proper recommended mounting height and having the cut fall between wall studs. Using a reciprocating saw, he carefully cuts out a section of the sheetrock. It may be necessary to use more tools, depending on the wall material. It never hurts to undercut the rectangular section and then open it up slowly while test-fitting the recess kit to ensure a nice fit. A non-live circuit, which has already been wired into the panel is being routed to the recess kit and secured with an electrical connector. With that wire in place, Chris is sliding the recess kit into the cut-out in the wall. It fits nicely in place. It's not too tight that it cracks the sheetrock and not too loose where it falls out of the wall. The cut-out was placed near a stud so it could be screwed to the recess kit for proper support. Now that the recess kit is in place, the hand dryer is being mounted. This is being done by placing the dryer base plate over the six, 1/4", 20 threaded studs. Using a nut driver, the dryer is mounted to the studs with the provided nuts. Again, it's important to have the correct tools as Chris has a nut driver here to mount the base plate. Chris is not finishing the wiring to the dryer. Again, by following the wiring schematic located on the dryer. Here, Chris is measuring the wires, cutting them to the correct length, making sure he doesn't have too much wire once he puts the cover on. The recess kit has a unique hinging door which allows the dryer to tilt forward for easy mounting access of the cover. Two tamper-proof screws are removed to hinge the unit forward and the cover is mounted to the dryer by using two tamper-proof screws. The hinge door is being secured in place with two tamper-proof screws which were removed to originally lower the door. Power is turned on and the Xlerator installed in the recess kit is ready for use.

Copy and paste the embed code above.

Properly install a recess kit for your Xlerator hand dryer with these step-by-step instructions! The recess is ADA compliant and will maximize the space in your restroom.

Xlerator Eco Hand Dryer

Xlerator Eco Hand Dryer

The future depends on green technology, on innovations that shape the way we live, the resources we consume, and the impact we make on our environment. The Xlerator Eco hand dryer sets a new standard in hand drying efficiency and sustainability. Its new, no heat technology dries hands while using only 500 watts of energy, making it one of the most energy efficient and environmentally friendly hand dryers on the planet. Xlerator Eco offers many of the features and benefits the original, patented Xlerator hand dryer, eliminating the cost, maintenance, and the cost of paper towels while reducing your facility's carbon footprint. Drawing a maximum of four and a half amps or less allows for the installation of multiple Xlerator Eco units on one circuit, significantly reducing installation costs and creating a typical return on investment in less than one year. Xlerator Eco helps facilities qualify for several LEED credits, Green Globes, and other certifications to achieve corporate and government sustainability goals. Get on the cutting edge of green restroom technology with the Xlerator Eco. XL dryer, time to throw in the towel.

Copy and paste the embed code above.

Qualify for green certifications by adding an Xlerator Eco hand dryer to your restrooms! Not only are the dryers environmentally friendly, they help eliminate the cost of maintenance and paper towels.

Excel Dryer XL-GR-ECO-1.1N 110/120 Specs
Width 11 3/4 Inches
Depth 6 11/16 Inches
Height 12 11/16 Inches
Amps 4.5 Amps
Hertz 60 Hertz
Phase 1 Phase
Voltage 110/120
Wattage 500 Watts
Color Black
Drying Time 10 Seconds
Features Energy Efficient
Finish Gray
Hands Free Yes
Installation Type Surface Mounted
Made in America Yes
Material Die Cast Zinc
RPM 20,000
Style No Heat
Type Hand Dryers

Customer questions about this product

Is this hand dryer ADA compliant?
This item is not inherently ADA compliant; however, it can be made ADA compatible with a recess kit (sold separately).
Ask your own question!

Excel Dryer XL-GR-ECO-1.1N 110/120 Details

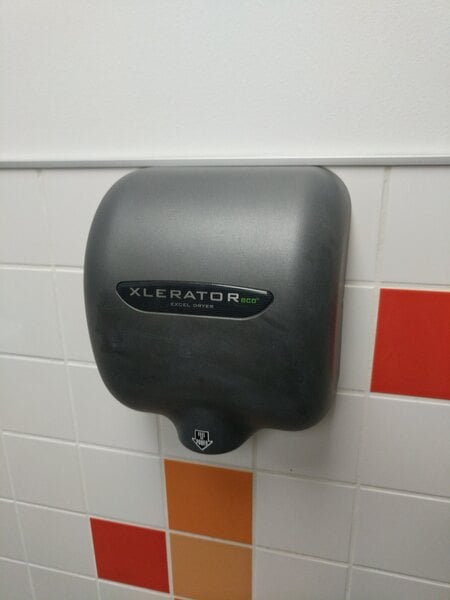

The high-speed, energy-efficient Excel XL-GR-ECO-1.1N 110/120 XLERATOReco® graphite textured cover energy efficient no heat hand dryer uses no heat technology to dry hands quickly in about 10 seconds so your customers can be on their way. It operates on only 500 watts making it one of the top energy-efficient hand dryers on the market. It has a low draw of amps allowing it to be installed on one 20 amp circuit, which significantly reduces installation time and costs. Its simple mounting system makes it easy to install on any wall in your bathroom, and its attractive graphite exterior fits in with any restroom's decor.

The dryer includes adjustable speed, sound control, and an externally visible service LED. It's intuitive to use and offers a more cost effective solution than alternative paper methods. Plus, this dryer is the perfect way to convey your establishment's eco-friendly standards to customers. This dryer will greatly aid your facility's sustainability and hygiene standards. It is on the cutting edge of restroom hygiene, boasting a HEPA filtration system that is proven to remove 99.97% of potentially present bacteria from the air. The XLERATOReco® line is also Building Green approved, and helps qualify for several LEED credits, helping your facility reduce its carbon footprint. This unit requires a 110/120V electrical connection for operation.

Overall Dimensions:
Width: 11 3/4"
Depth: 6 11/16"
Height: 12 11/16"

  • BuildingGreen Approved

    BuildingGreen Approved

    This item has been recognized by the BuildingGreen, Inc. for its eco-friendly design.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • CE Listed

    CE Listed

    This item complies with the standards imposed by the Conformance European (CE), a division of the Intertek group.

  • UL US & Canada

    UL US & Canada

    This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL) for use in the United States of America and Canada.

  • Hardwired


    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

  • UL Environmental Validation

    UL Environmental Validation

    This product meets specific criteria set forth by UL for recycled or renewable content.

Customer Reviews

  • Overall User Rating: Excel XL-GR-ECO-1.1N 110/120 XLERATOReco® Graphite Textured Cover Energy Efficient No Heat Hand Dryer - 110/120V, 500W

    5.0 stars from 2 reviews


    People Talk About:

    hands hand freak fees Easy dry decent clinic clients bathroom
    We got this for the public single bathroom of a small veterinary clinic as clients kept putting paper towels in the toilet and plumber fees were getting out of hand. We couldn't get a high powered one as the noise would freak out the patients. This unit does the trick, and we were pleasantly surprised it worked since it was so inexpensive.
    Easy to install, very quiet, come on and off at appropriate times. Takes a while to get hands dry -- but will at least speed along the process and does a decent job for the price.
