Product Overview

  • Vandal resistant outlet and spray device
  • Two flexible 18" hoses with 1/2" NPSM female inlets
UPC Code:671262742467

T&S Brass and Bronze Works 5EF-2D-DS-VF05 Specs

Quantity
1/Each
Shipping Weight
7.6 lb.
Spout Length
5 Inches
Faucet Width
5 7/8 Inches
Faucet Height
4 7/8 Inches
Battery Type
AA
Faucet Centers
4 Inches
Features
ADA Compliant  Flex Inlets Included  Hands Free  Motion Sensor  With Mixing Valve
Finish
Chrome
Flow Rate
0.5 GPM
Material
Brass
Mounting Holes Required
3 Mounting Holes
Mounting Style
Deck Mounted
Plug Type
NEMA 1-15P
Pressure Rating
125 PSI
Spout Clearance
3 5/8 Inches
Spout Type
Cast
Temperature Rating
140 Degrees F
Type
Touchless Faucets
Water Inlet Size
3/8 Inches

T&S Brass and Bronze Works 5EF-2D-DS-VF05 Details

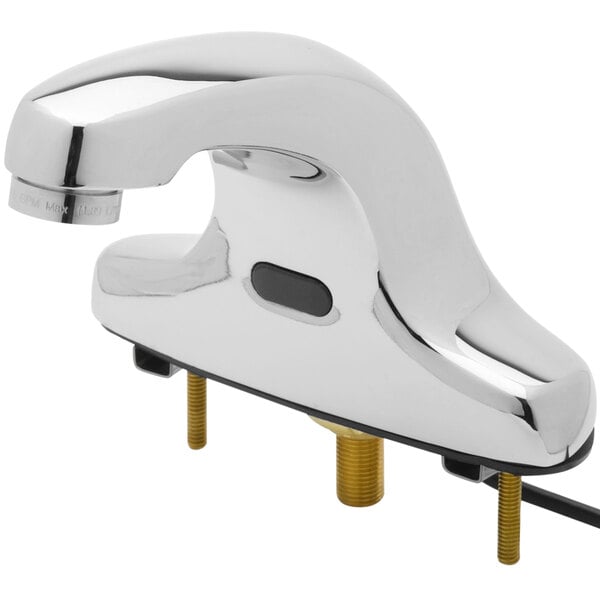

This ADA Compliant Equip by T&S 5EF-2D-DS-VF05 Equip deck mounted electronic faucet has a reliable 5" chrome plated brass spout and 2.2 GPM vandal resistant outlet, making it ideal for correctional institutions or any other location where tampering may be an issue. The unit also includes an optional 0.5 GPM spray device to increase your water savings even more!

The faucet's electronic sensor is designed to help conserve water while reducing cross-contamination and the spread of germs and bacteria thanks to its hands-free operation. The mechanical temperature control mixing valve allows you to set the faucet to maintain a desired water temperature up to 120 degrees Fahrenheit.

The 5EF-2D-DS-VF05 comes complete with a water resistant control module box that is AC or DC operated, with the option to use four AA batteries as backup. This unit requires holes punched on 4" centers for installation and a 1" center shank mounting hole. It includes two 18" flexible stainless steel hoses with 1/2" NPSM female inlets.

Overall Dimensions:
Spout Length: 5"
Faucet Height: 4 7/8"
Faucet Width: 5 7/8"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

Can I use this product to serve drinking water?

This product is not intended for use in applications where potable (drinking) water is dispensed for human consumption.

Does this item have any additional agency approvals and certifications?

There are a wide range of regulations that govern plumbing code! We attempt to list any current certification marks with an official logo on the product page for your convenience. However, additional approvals, codes, and standards this product adheres to may be listed on the product specsheet.

What measurements do I need to install a faucet?

When installing a faucet, these are some of the most common measurements you’ll need:

Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.

Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.

Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
Ask your own question!
  • Hands-Free/Touchless

    Hands-Free/Touchless

    This item is designed for hands-free use, which reduces the risk of cross-contamination and prevents germs from spreading.

  • ADA Compliant

    ADA Compliant

    This item meets criteria established by the Americans with Disabilities Act (ADA).

  • NSF/ANSI/CAN 61 (Certified by CSA)

    NSF/ANSI/CAN 61 (Certified by CSA)

    This item is certified by CSA to meet the drinking water system component standards for Canada and the United States outlined in NSF/ANSI/CAN 61.

  • NSF/ANSI/CAN 372 (Certified by CSA)

    NSF/ANSI/CAN 372 (Certified by CSA)

    This item is certified by CSA to meet the drinking water system component lead content standards for Canada and the United States outlined in NSF/ANSI/CAN 372.

  • 3/8" Water Connection

    3/8" Water Connection

    This unit comes with a 3/8" water connection for water supply.

  • 1-15P

    1-15P

    This unit comes with a NEMA 1-15P plug.
