Product Overview
- Accommodates (2) 12" x 20" food pans lengthwise; includes 1 adapter bar
- V-stamped pan rest keeps food pans in place
- 20 gauge stainless steel top with 22 gauge stainless steel liner
- Environmentally-friendly polyurethane foam insulation and a push-in perimeter gasket
- Uses eco-friendly R290 refrigerant; 1/6 hp, 115V
- Quantity
- 1/Each
- Shipping Weight
- 28.5 lb.
- Width
- 46 3/4 Inches
- Depth
- 18 Inches
- Height
- 21 7/8 Inches
- Cutout Width
- 45 3/4 Inches
- Cutout Depth
- 17 Inches
- Amps
- 2 Amps
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 115 Volts
- Wattage
- 230 Watts
- Compressor Location
- Bottom Mounted
- Features
- Made in America NSF Listed
- Horsepower
- 4/25 HP
- Installation Type
- Drop In
- Material
- Stainless Steel
- Number of Wells
- 2 Wells
- Pan Mounting
- Recessed
- Plug Type
- NEMA 5-15P
- Power Type
- Electric
- Refrigeration Type
- Cold Wall
- Style
- Narrow/Slim
- Temperature Range
- 33 - 41 Degrees F
- Temperature Settings
- Fixed
- Type
- Refrigerated Food Wells
Delfield N8146NBP Details

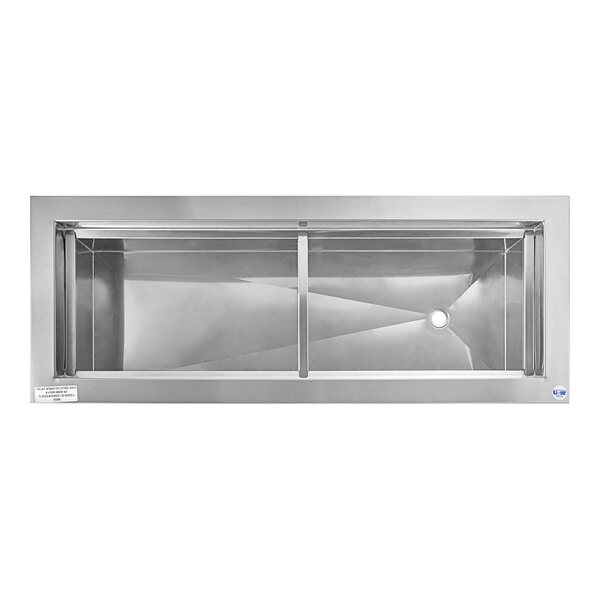

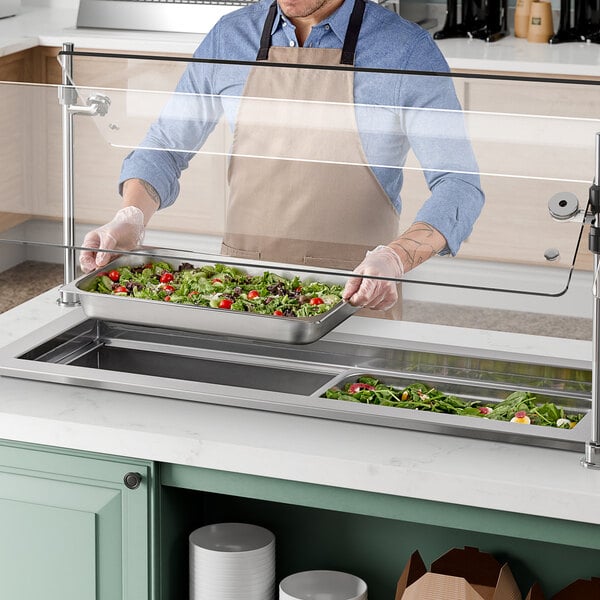

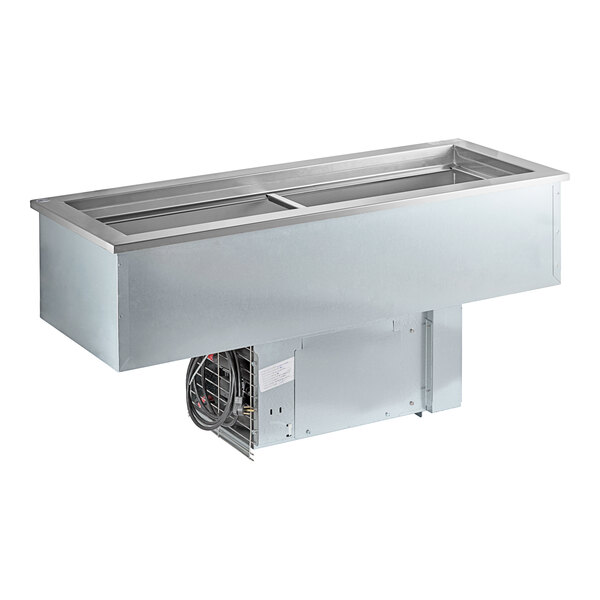

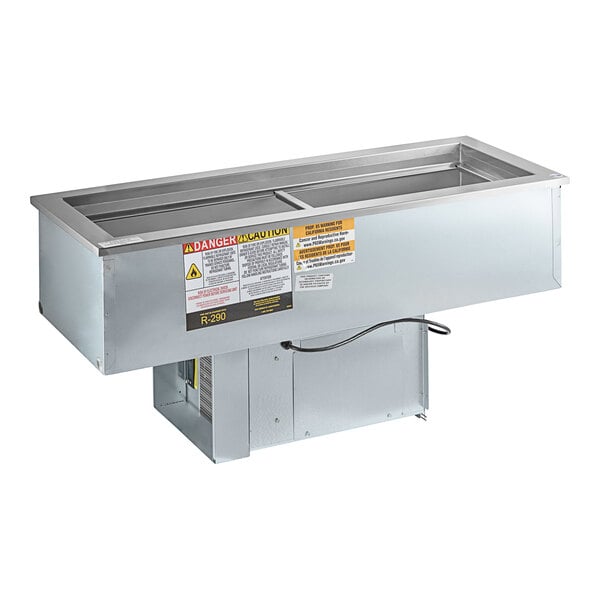

The Delfield N8146NBP narrow two pan drop in refrigerated cold food well is a dependable way to present salad, fruit, gelatin desserts, and other cold foods at your buffet line! This refrigerated cold food well reliably keeps your most famous chilled creations at a safe, even temperature until customers empty the pan and are ready for more. Because of how this food well holds pans, it's great for narrower countertops or two-sided buffet setups where you'd want to display the pans lengthwise.
This refrigerated cold food well can hold two full size 12" x 20" food pans up to 6" deep lengthwise at food safe holding temperatures for an extended period of time. To maintain a consistent temperature, the bottom-mounted 1/6 hp compressor circulates R290 refrigerant to keep the well's contents evenly chilled. This specialized refrigerant has an ozone depletion potential (ODP) of 0 and a global warming potential (GWP) of 3, making it an environmentally-responsible choice for your business. This model can conveniently also cool food using ice for unmatched versatility and allowing for greater energy savings. The sectioned, perforated false bottom directs water and compressor condensation into the bottom section, where a 1" plastic drain lets you empty the liquid at your convenience.
This stainless steel drop in refrigerated cold food well is insulated with high-density foam that guarantees superior temperature retention, and an included fitted flange gasket allows you to snugly install this food well into your countertop. The refrigerated narrow drop in cold food well requires a 45 3/4" x 17" cutout. It also requires a 115V electrical connection for operation.
Overall Dimensions:
Left to Right: 46 3/4"
Front to Back: 18"
Height (including compressor): 21 7/8"
Cutout Dimensions:
Width: 45 3/4"
Depth: 17"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Customer questions about this product
Does free shipping apply to this Delfield item if I am shipping it to a residential address?
I haven’t heard of R-290, R-600a, R-513a, or R-448A refrigerant before. What is it?
Made in America
This item was made in the United States of America.
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
5-15P
This unit comes with a NEMA 5-15P plug.
UL Listed, US & Canada
This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.
