Product Overview

  • Blocks flying insects, airborne pollutants, and contaminants
  • Single 1/2 hp, two-speed motor
  • Air intake filter for increased air quality
  • Made of aluminized steel
  • 10 kW electric heater
  • Made with FDA and USDA Compliant materials
  • 240V, 1 Phase
UPC Code:400011561895

Curtron E-CFD-36-1-EH 240/1 Specs

Shipping Weight
95 lb.
37 Inches
15 3/8 Inches
15 Inches
1.4 Amps
60 Hertz
1 Phase
240 Volts
336 Watts
Amps - Heater
43.1 Amps
Electric Heater  Made in America
1/2 HP
Installation Type
Surface Mounted
Noise Level
53 dB
Plug Type
Front Door
Air Curtains

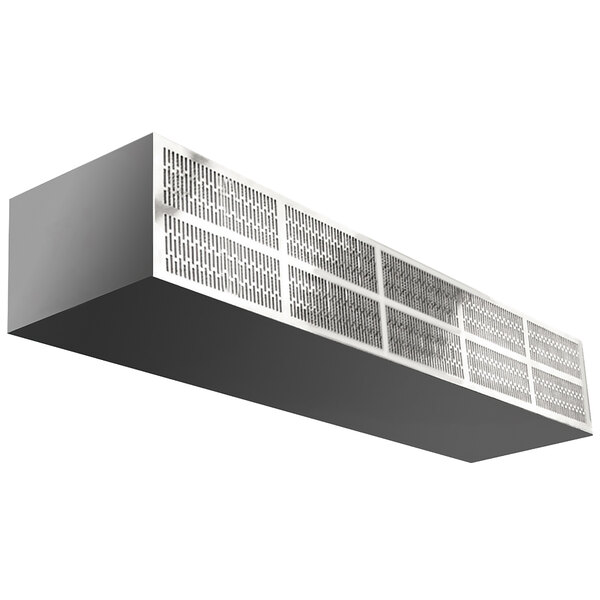

Curtron E-CFD-36-1-EH 240/1 Details

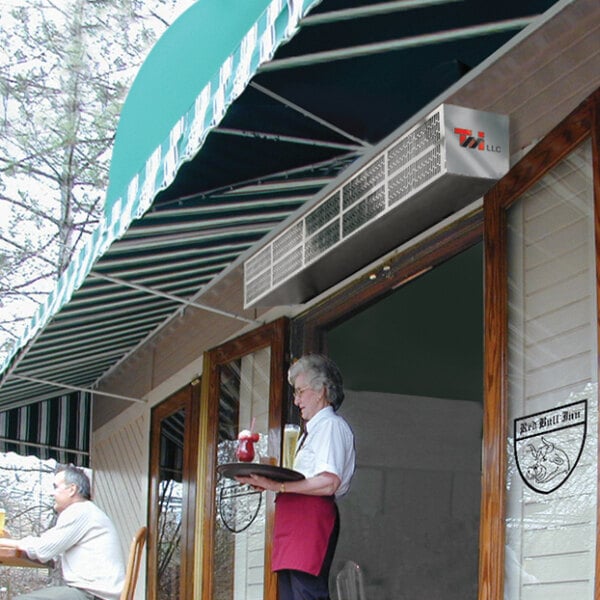

This Curtron E-CFD-36-1 commercial front door air curtain creates an invisible wall of air that will stop outside air, pollutants, and insects from entering your business. Ideal for grocery stores, restaurants, warehouses, and more, this air curtain will reduce your overall energy costs by keeping cool air in during the summer and preventing heat from escaping during winter. Plus, it is designed to work in commercial doorways up to 8' high!

This front door air curtain features a one-piece aluminized steel construction with an included air intake filter for increased air quality. Its single, 1/2 hp motor operates at high and low speeds for greater control over your environment, while its 10 kW electric heater makes it especially useful for keeping out cold drafts during winter months. This unit operates at a low noise level of 53/51 dBA and is made with USDA and FDA Compliant materials.

Overall Dimensions:
Width: 37"
Depth: 15 3/8"
Height: 15"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Attention CA Residents

WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • ETL Sanitation

    ETL Sanitation

    This product has been certified by ETL, a division of the Intertek Group, to meet applicable sanitation standards required for use in the United States and Canada.

  • Hardwired


    This product must be hardwired by a professional; it does not plug into a standard wall outlet.
