Product Overview

  • Stainless steel front with aluminum sides and interior
  • Twelve half size doors with lift-off hinges, door locks, and self-closing feature
  • Self-contained warming system with a temperature range of 90-180 degrees Fahrenheit
  • 3" thick CFC-free polyurethane foam insulation for temperature retention and structural strength
  • Humidity relief vent; exterior temperature control with a master on/off switch
  • Stainless steel strip heaters located at the base of the unit
  • 75 cu. ft. capacity; 9 heavy-duty, epoxy-coated steel shelves
  • 115/208-230V, 3000W
UPC Code:400012840531

Continental Refrigerator DL3WE-PT-HD Specs

Shipping Weight
800 lb.
85 1/2 Inches
83 1/4 Inches
20.8 Amps
60 Hertz
1 Phase
208/230 Volts
3,000 Watts
Access Type
Cabinet Size
Full Height
75 cu. ft.
Compressor Location
Top Mounted
Stainless Steel and Aluminum
Control Type
Door Type
Installation Type
With Insulation
Interior Configuration
Number of Doors
12 Doors
Number of Shelves
9 Shelves
Plug Type
Temperature Range
90 - 180 Degrees F
Holding Cabinets

Customer questions about this product

Can this item fit through a standard height 80" doorway ?

Due to the height of this item, it may not be able to fit through a standard 80" tall doorway when standing upright. Please consider the best means of entry before purchasing, or measure your entryway to ensure that you will be able to bring your order inside if the item cannot be carried on its side.

Ask your own question!

Continental Refrigerator DL3WE-PT-HD Details

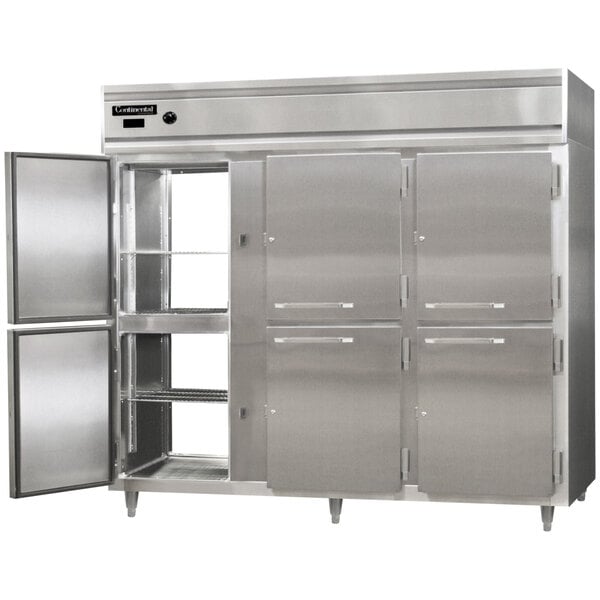

This Continental DL3WE-PT-HD 86" extra-wide half solid door pass-through heated holding cabinet - a stainless steel front with aluminum sides and interior. It features a pass-through design for installation between cooking and serving areas, or any other application where you want to load the unit from one side and unload it from the other. This unit is also extra wide to provide a little more warming capacity in a footprint that is only a little larger than a standard model.

This three section warming cabinet also has twelve half size solid doors for easy access. The doors each come equipped with cam action lift-off hinges and a self-closing mechanism that helps make sure the door closes properly even when you have your hands full, and the magnetic snap-in door gaskets provide a tight seal. Cylinder door locks are standard so that you can prevent tampering or theft after hours. Additionally, this unit features automatic interior lighting.

The cabinet features a stainless steel front with aluminum sides and interior, made to stand up to heavy use in a commercial environment. The 3" foam polyurethane insulation helps to maintain the cabinet's interior temperatures and also provides some added structural strength. In addition, an external digital controller, master on/off switch, and temperature display help you keep an eye on the warmer's performance to ensure safe food storage. It also comes with 6" legs to provide the necessary clearance from the floor for cleaning purposes.

The self-contained warming system provides a temperature range of 90-180 degrees Fahrenheit and utilizes a highly-sensitive thermostat. Thin strip heating elements are located at the base of the unit to provide heat and an air circulating blower mounted on top of the cabinet circulates air for even temperature distribution. The cabinet has a built-in humidity relief vent to help prevent foods from becoming soggy and unappetizing due to moisture build-up. 115/208-230V, 3000W. This unit includes an electronic controller with digital display and hi-low alarm.

Overall Dimensions:
Width: 85 1/2"
Depth: 39"
Height: 83 1/4"
Capacity: 75 cu. ft.

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

  • Hardwired


    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • NSF Listed

    NSF Listed

    This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.

  • ETL US & Canada

    ETL US & Canada

    This item meets the electrical product safety standards imposed by the ETL, a division of the Intertek Group, for use in the United States and Canada.
