Product Overview
- Durable, cast brass construction and polished chrome finish
- Pressure compensating Econo-Flo laminar spray; releases water at 0.5 GPM
- Intuitive faucet sensor detects motion and releases warm, tempered water
- Water supply hose delivers water from your main line to your faucet
- Compatible with Commander Handheld Programming Unit (sold separately)
- Quantity
- 1/Each
- Shipping Weight
- 4.09 lb.
- Spout Length
- 6 7/8 Inches
- Faucet Width
- 2 1/4 Inches
- Faucet Height
- 6 1/8 Inches
- Faucet Centers
- Single
- Features
- Bluetooth Hands Free
- Finish
- Chrome
- Flow Rate
- 0.5 GPM
- Material
- Brass
- Mounting Holes Required
- 1 Mounting Hole
- Mounting Style
- Deck Mounted
- Power Type
- AC Adapter
- Pressure Rating
- 20 - 125 PSI
- Spout Clearance
- 4 7/8 Inches
- Spout Type
- Cast
- Style
- Hands Free
- Temperature Rating
- 180 Degrees F
- Type
- Touchless Faucets
- Water Inlet Size
- 3/8 Inches

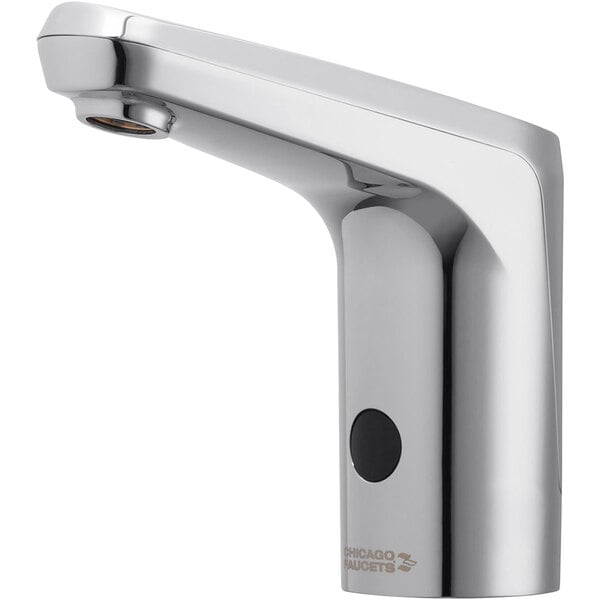

Chicago Faucet Company E80-A11A-41ABCPT Details
Optimize water efficiency and regulate usage by outfitting your sink with this Chicago Faucets deck-mounted touchless faucet. With its durable, cast brass construction and polished chrome finish, this faucet has a total lead content of less than or equal to 0.25% for your safety. This unit is equipped with a pressure compensating Econo-Flo non-aerating laminar spray that releases a clear, non-splashing flow of water at 0.5 GPM. This unit has a rated operating pressure of 20 to 125 PSI and a mixed water temperature range of up to 180 degrees Fahrenheit for optimal performance.
As opposed to standard faucets with pull-down handles, which require repeated personal contact for use, this product enables hygienic handwashing. When ready to wash hands, the intuitive faucet sensor detects motion and releases warm, tempered water. Plus, to deliver water from your main line to the faucet, this unit includes a flexible water supply hose. This model is compatible with the Commander Handheld Programming Unit (sold separately) to allow for modification of modes and ranges. This faucet has a single hole for deck mounting. A 120VAC and bank installation adapter wire (sold separately) are required for operation.
Overall Dimensions:
Spout Length: 6 7/8"
Faucet Height: 6 1/8"
Faucet Width: 2 1/4"
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Customer questions about this product
Can I use this product to serve drinking water?
What measurements do I need to install a faucet?
Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.
Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.
Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
Hands-Free/Touchless
This item is designed for hands-free use, which reduces the risk of cross-contamination and prevents germs from spreading.
U.S. Green Building Council (USGBC)
This company is a certified USGBC member. The USGBC is an organization that promotes sustainable building practices, including saving energy, using fewer resources, and reducing waste.
Buy American Act Compliant
This product complies with the provisions of the Buy American Act.
ICC-ES ASME A112.18.1/CSA B125.1
This item has been tested by the ICC-ES to meet ASME A112.18.1/CSA B125.1 standards for plumbing fittings and fixtures.
ICC-ES Low Lead NSF/ANSI 372
This item has been tested by the ICC-ES to meet NSF/ANSI 372 standards for drinking water lead content.
ICC-ES Drinking Water NSF/ANSI 61, Section 9
This item has been tested by the ICC-ES to meet NSF/ANSI 61, Section 9 standards for drinking water.
3/8" Water Connection
This unit comes with a 3/8" water connection for water supply.
